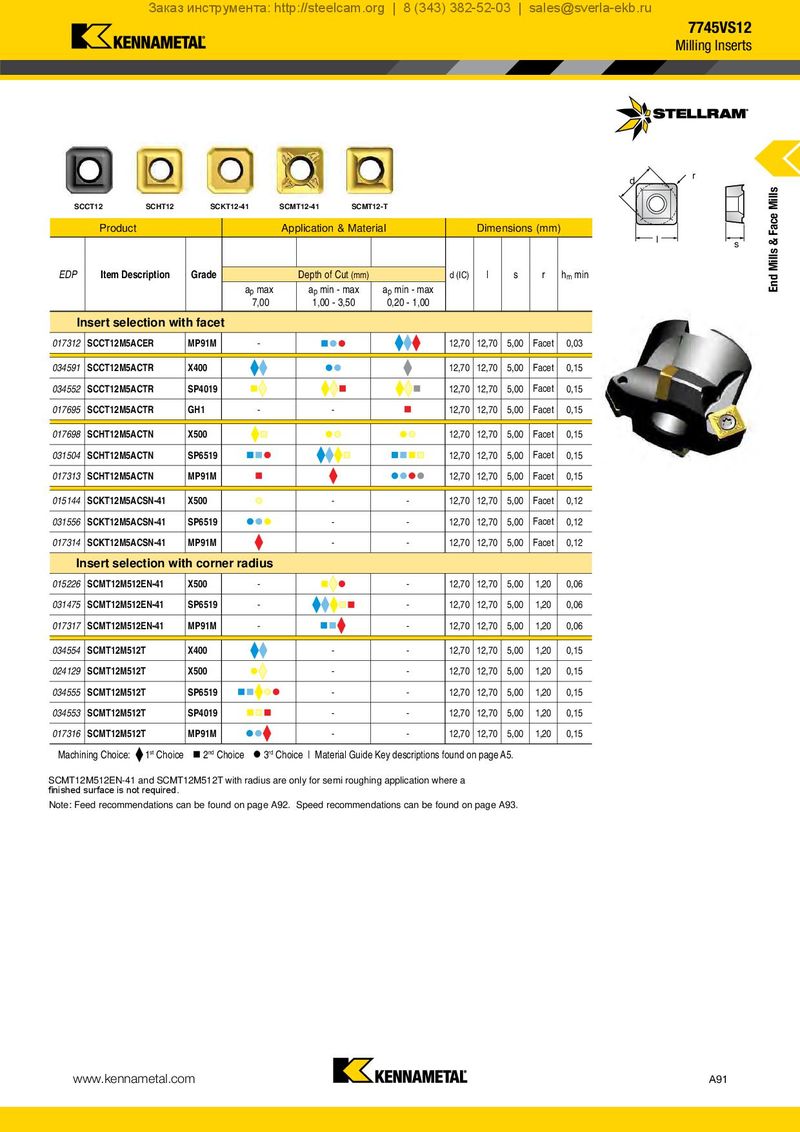

Каталог Stellram фрез со сменными пластинами - страница 92

Заказ инструмента: http://steelcam.org | 8 (343) 382-52-03 | sales@sverla-ekb.ru 7745VS12 Milling Inserts d r SCCT12 SCHT12 SCKT12-41 SCMT12-41 SCMT12-T End Mills & Face Mills Product Application & Material Dimensions (mm) l s EDP Item Description Grade Depth of Cut (mm) d (IC) l s r hm min ap max ap min - max ap min - max 7,00 1,00 - 3,50 0,20 - 1,00 Insert selection with facet 017312 SCCT12M5ACER MP91M - 12,70 12,70 5,00 Facet 0,03 034591 SCCT12M5ACTR X400 12,70 12,70 5,00 Facet 0,15 034552 SCCT12M5ACTR SP4019 12,70 12,70 5,00 Facet 0,15 017695 SCCT12M5ACTR GH1 - - 12,70 12,70 5,00 Facet 0,15 017698 SCHT12M5ACTN X500 12,70 12,70 5,00 Facet 0,15 031504 SCHT12M5ACTN SP6519 12,70 12,70 5,00 Facet 0,15 017313 SCHT12M5ACTN MP91M 12,70 12,70 5,00 Facet 0,15 015144 SCKT12M5ACSN-41 X500 - - 12,70 12,70 5,00 Facet 0,12 031556 SCKT12M5ACSN-41 SP6519 - - 12,70 12,70 5,00 Facet 0,12 017314 SCKT12M5ACSN-41 MP91M - - 12,70 12,70 5,00 Facet 0,12 Insert selection with corner radius 015226 SCMT12M512EN-41 X500 - - 12,70 12,70 5,00 1,20 0,06 031475 SCMT12M512EN-41 SP6519 - - 12,70 12,70 5,00 1,20 0,06 017317 SCMT12M512EN-41 MP91M - - 12,70 12,70 5,00 1,20 0,06 034554 SCMT12M512T X400 - - 12,70 12,70 5,00 1,20 0,15 024129 SCMT12M512T X500 - - 12,70 12,70 5,00 1,20 0,15 034555 SCMT12M512T SP6519 - - 12,70 12,70 5,00 1,20 0,15 034553 SCMT12M512T SP4019 - - 12,70 12,70 5,00 1,20 0,15 017316 SCMT12M512T MP91M - - 12,70 12,70 5,00 1,20 0,15 Machining Choice: 1st Choice 2nd Choice 3rd Choice | Material Guide Key descriptions found on page A5. SCMT12M512EN-41 and SCMT12M512T with radius are only for semi roughing application where a finished surface is not required. Note: Feed recommendations can be found on page A92. Speed recommendations can be found on page A93. www.kennametal.com A91
