Каталог Stellram фрез со сменными пластинами - страница 91

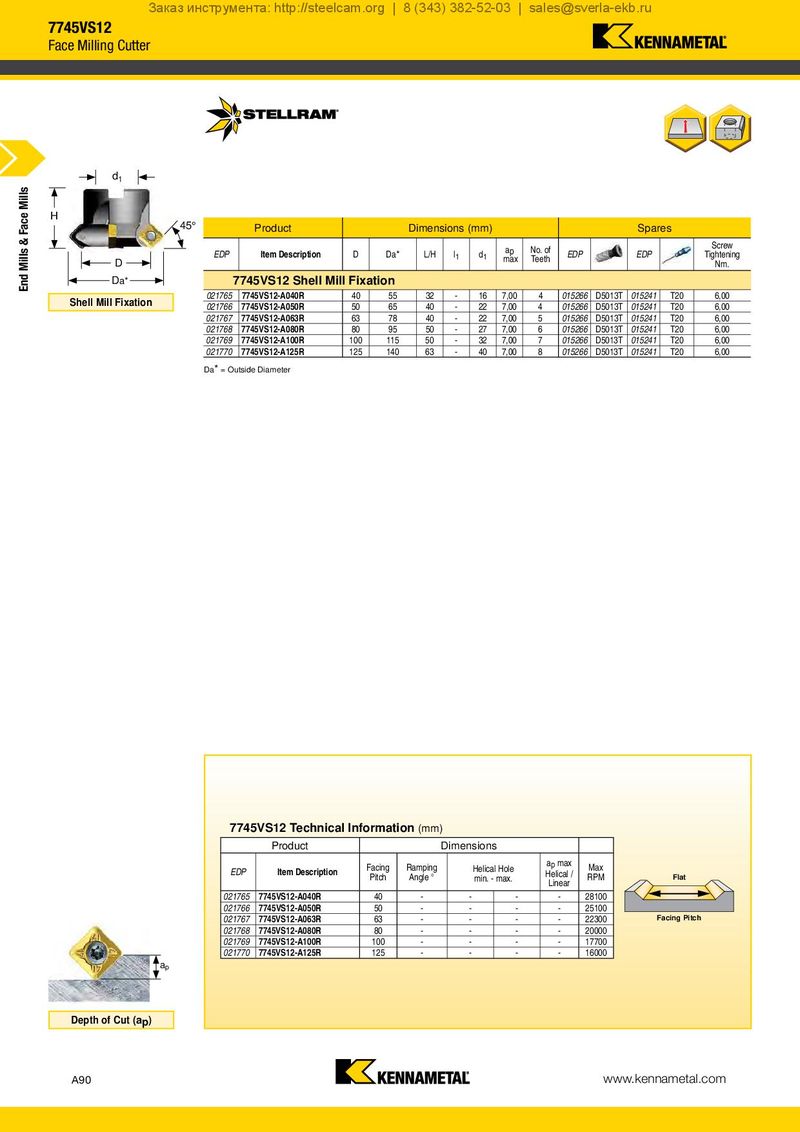

Заказ инструмента: http://steelcam.org | 8 (343) 382-52-03 | sales@sverla-ekb.ru 7745VS12 Face Milling Cutter d1 End Mills & Face Mills H 45° Product Dimensions (mm) Spares ap No. of Screw D EDP Item Description D Da* L/H l1 d1 max Teeth EDP EDP Tightening Nm. Da* 7745VS12 Shell Mill Fixation Shell Mill Fixation 021765 7745VS12-A040R 40 55 32 - 16 7,00 4 015266 D5013T 015241 T20 6,00 021766 7745VS12-A050R 50 65 40 - 22 7,00 4 015266 D5013T 015241 T20 6,00 021767 7745VS12-A063R 63 78 40 - 22 7,00 5 015266 D5013T 015241 T20 6,00 021768 7745VS12-A080R 80 95 50 - 27 7,00 6 015266 D5013T 015241 T20 6,00 021769 7745VS12-A100R 100 115 50 - 32 7,00 7 015266 D5013T 015241 T20 6,00 021770 7745VS12-A125R 125 140 63 - 40 7,00 8 015266 D5013T 015241 T20 6,00 Da* = Outside Diameter 7745VS12 Technical Information (mm) Product Dimensions EDP Item Description Facing Ramping Helical Hole ap max Max Pitch Angle ° min. - max. Helical / RPM Flat Linear 021765 7745VS12-A040R 40 - - - - 28100 021766 7745VS12-A050R 50 - - - - 25100 021767 7745VS12-A063R 63 - - - - 22300 Facing Pitch 021768 7745VS12-A080R 80 - - - - 20000 021769 7745VS12-A100R 100 - - - - 17700 021770 7745VS12-A125R 125 - - - - 16000 ap Depth of Cut (ap) A90 www.kennametal.com
