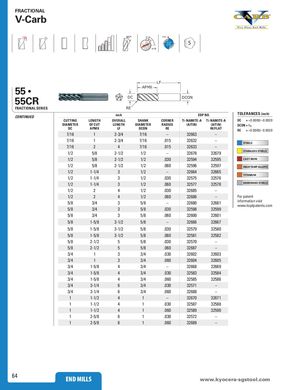

Общий каталог SGS 2021 - страница 64
Навигация
Каталог SGS высокопроизводительные черновые фрезы
Каталог SGS фрезы для труднообрабатываемых материалов Series 33
Каталог SGS фрезы для алюминия S-carb
Каталог SGS фрезы для обработки пластика PCR series
Каталог SGS шестизубые фрезы T-carb
Каталог SGS монолитный инструмент из композитных материалов
45° POS
5
| 55• | APMX L | F | ||||||
| CR | DC | DCON | ||||||
| 55 FRACTIONAL SERIES | RE | |||||||
| CONTINUED | inch | EDP | NO. | |||||
| CUTTING DIAMETER DC | LENGTH OF CUT APMX | OVERALL LENGTH LF | SHANK DIAMETER DCON | CORNER RADIUS RE | Ti-NAMITE-A (AlTiN) | Ti-NAMITE-A (AlTiN) W/FLAT | ||
| 7/16 | 1 | 2-3/4 | 7/16 | – | 32663 | – | ||
| 7/16 | 1 | 2-3/4 | 7/16 | .015 | 32632 | – | ||
| 7/16 | 2 | 4 | 7/16 | .015 | 32633 | – | ||
| 1/2 | 5/8 | 2-1/2 | 1/2 | – | 32678 | 32679 | ||
| 1/2 | 5/8 | 2-1/2 | 1/2 | .030 | 32594 | 32595 | ||
| 1/2 | 5/8 | 2-1/2 | 1/2 | .060 | 32596 | 32597 | ||
| 1/2 | 1-1/4 | 3 | 1/2 | – | 32664 | 32665 | ||
| 1/2 | 1-1/4 | 3 | 1/2 | .030 | 32575 | 32576 | ||
| 1/2 | 1-1/4 | 3 | 1/2 | .060 | 32577 | 32578 | ||
| 1/2 | 2 | 4 | 1/2 | .030 | 32685 | – | ||
| 1/2 | 2 | 4 | 1/2 | .060 | 32686 | – | ||
| 5/8 | 3/4 | 3 | 5/8 | – | 32680 | 32681 | ||
| 5/8 | 3/4 | 3 | 5/8 | .030 | 32598 | 32599 | ||
| 5/8 | 3/4 | 3 | 5/8 | .060 | 32600 | 32601 | ||
| 5/8 | 1-5/8 | 3-1/2 | 5/8 | – | 32666 | 32667 | ||
| 5/8 | 1-5/8 | 3-1/2 | 5/8 | .030 | 32579 | 32580 | ||
| 5/8 | 1-5/8 | 3-1/2 | 5/8 | .060 | 32581 | 32582 | ||
| 5/8 | 2-1/2 | 5 | 5/8 | .030 | 32570 | – | ||
| 5/8 | 2-1/2 | 5 | 5/8 | .060 | 32687 | – | ||
| 3/4 | 1 | 3 | 3/4 | .030 | 32602 | 32603 | ||
| 3/4 | 1 | 3 | 3/4 | .060 | 32604 | 32605 | ||
| 3/4 | 1-5/8 | 4 | 3/4 | – | 32668 | 32669 | ||
| 3/4 | 1-5/8 | 4 | 3/4 | .030 | 32583 | 32584 | ||
| 3/4 | 1-5/8 | 4 | 3/4 | .060 | 32585 | 32586 | ||
| 3/4 | 3-1/4 | 6 | 3/4 | .030 | 32571 | – | ||
| 3/4 | 3-1/4 | 6 | 3/4 | .060 | 32688 | – | ||
| 1 | 1-1/2 | 4 | 1 | – | 32670 | 32671 | ||
| 1 | 1-1/2 | 4 | 1 | .030 | 32587 | 32588 | ||
| 1 | 1-1/2 | 4 | 1 | .060 | 32589 | 32590 | ||
| 1 | 2-5/8 | 6 | 1 | .030 | 32572 | – | ||
| 1 | 2-5/8 | 6 | 1 | .060 | 32689 | – |
RE = +0.0000/–0.0020
STEELS
HIGH TEMP ALLOYS
