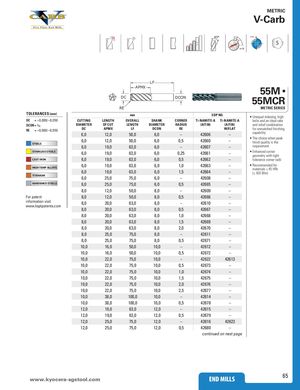

Общий каталог SGS 2021 - страница 65

METRIC V-Carb 45° POS 5 ≠ LF APMX 55M • 55MCR DC DCON RE METRIC SERIES TOLERANCES (mm) mm EDP NO. • Unequal indexing, high DC = +0,000/–0,050 CUTTING LENGTH OVERALL SHANK CORNER Ti-NAMITE-A Ti-NAMITE-A helix and an ideal rake DCON = h 6 DIAMETER OF CUT LENGTH DIAMETER RADIUS (AlTiN) (AlTiN) and relief combination DC APMX LF DCON RE W/FLAT for unmatched finishing RE = +0,000/–0,050 capability 6,0 12,0 50,0 6,0 – 42606 – • The choice when peak 6,0 12,0 50,0 6,0 0,5 42660 – finish quality is the STEELS 6,0 19,0 63,0 6,0 – 42607 – requirement STAINLESS STEELS 6,0 19,0 63,0 6,0 0,25 42661 – • Enhanced corner geometry with tight CAST IRON 6,0 19,0 63,0 6,0 0,5 42662 – tolerance corner radii HIGH TEMP ALLOYS 6,0 19,0 63,0 6,0 1,0 42663 – • Recommended for materials ≤ 45 HRc 6,0 19,0 63,0 6,0 1,5 42664 – (≤ 420 Bhn) TITANIUM 6,0 25,0 75,0 6,0 – 42608 – HARDENED STEELS 6,0 25,0 75,0 6,0 0,5 42665 – 8,0 12,0 50,0 8,0 – 42609 – For patent 8,0 12,0 50,0 8,0 0,5 42666 – information visit 8,0 20,0 63,0 8,0 – 42610 – www.ksptpatents.com 8,0 20,0 63,0 8,0 0,5 42667 – 8,0 20,0 63,0 8,0 1,0 42668 – 8,0 20,0 63,0 8,0 1,5 42669 – 8,0 20,0 63,0 8,0 2,0 42670 – 8,0 25,0 75,0 8,0 – 42611 – 8,0 25,0 75,0 8,0 0,5 42671 – 10,0 16,0 50,0 10,0 – 42612 – 10,0 16,0 50,0 10,0 0,5 42672 – 10,0 22,0 75,0 10,0 – 42622 42613 10,0 22,0 75,0 10,0 0,5 42673 – 10,0 22,0 75,0 10,0 1,0 42674 – 10,0 22,0 75,0 10,0 1,5 42675 – 10,0 22,0 75,0 10,0 2,0 42676 – 10,0 22,0 75,0 10,0 2,5 42677 – 10,0 38,0 100,0 10,0 – 42614 – 10,0 38,0 100,0 10,0 0,5 42678 – 12,0 19,0 63,0 12,0 – 42615 – 12,0 19,0 63,0 12,0 0,5 42679 – 12,0 25,0 75,0 12,0 – 42616 42623 12,0 25,0 75,0 12,0 0,5 42680 – continued on next page 65 END MILLS www.kyocera-sgstool.com END MILLS
