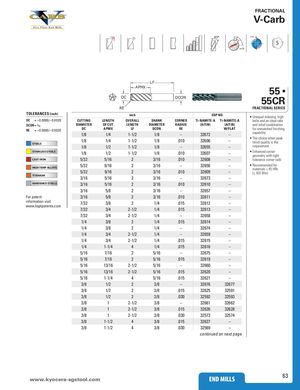

FRACTIONAL V-Carb 45° POS 5 ≠ LF APMX 55 • 55CR DC DCON RE FRACTIONAL SERIES TOLERANCES (inch) inch EDP NO. • Unequal indexing, high DC = +0.0000/–0.0020 CUTTING LENGTH OVERALL SHANK CORNER Ti-NAMITE-A Ti-NAMITE-A helix and an ideal rake DCON = h 6 DIAMETER OF CUT LENGTH DIAMETER RADIUS (AlTiN) (AlTiN) and relief combination DC APMX LF DCON RE W/FLAT for unmatched finishing RE = +0.0000/–0.0020 capability 1/8 1/4 1-1/2 1/8 – 32672 – • The choice when peak 1/8 1/4 1-1/2 1/8 .010 32606 – finish quality is the STEELS 1/8 1/2 1-1/2 1/8 – 32655 – requirement STAINLESS STEELS 1/8 1/2 1-1/2 1/8 .010 32607 – • Enhanced corner geometry with tight CAST IRON 5/32 5/16 2 3/16 .010 32608 – tolerance corner radii HIGH TEMP ALLOYS 5/32 9/16 2 3/16 – 32656 – • Recommended for materials ≤ 45 HRc 5/32 9/16 2 3/16 .010 32609 – (≤ 420 Bhn) TITANIUM 3/16 5/16 2 3/16 – 32673 – HARDENED STEELS 3/16 5/16 2 3/16 .010 32610 – 3/16 5/8 2 3/16 – 32657 – For patent 3/16 5/8 2 3/16 .010 32611 – information visit 7/32 3/8 2 1/4 .015 32612 – www.ksptpatents.com 7/32 3/4 2-1/2 1/4 .015 32613 – 7/32 3/4 2-1/2 1/4 – 32658 – 1/4 3/8 2 1/4 .015 32614 – 1/4 3/8 2 1/4 – 32674 – 1/4 3/4 2-1/2 1/4 – 32659 – 1/4 3/4 2-1/2 1/4 .015 32615 – 1/4 1-1/4 4 1/4 .015 32616 – 5/16 7/16 2 5/16 – 32675 – 5/16 7/16 2 5/16 .015 32619 – 5/16 13/16 2-1/2 5/16 – 32660 – 5/16 13/16 2-1/2 5/16 .015 32620 – 5/16 1-1/4 4 5/16 .015 32621 – 3/8 1/2 2 3/8 – 32676 32677 3/8 1/2 2 3/8 .015 32625 32591 3/8 1/2 2 3/8 .030 32592 32593 3/8 1 2-1/2 3/8 – 32661 32662 3/8 1 2-1/2 3/8 .015 32626 32628 3/8 1 2-1/2 3/8 .030 32573 32574 3/8 1-1/2 4 3/8 .015 32627 – 3/8 1-1/2 4 3/8 .030 32569 – continued on next page 63 END MILLS www.kyocera-sgstool.com END MILLS
