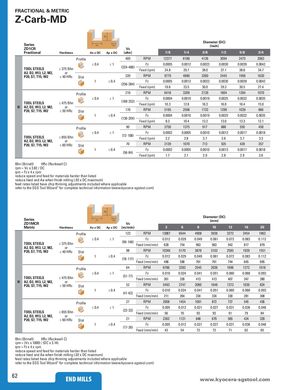

Z-Carb-MD

Series ZD1CR			Ae	Ap Ae	Vc				Diamet (in	er (DC) ch)
Fractional	Hardness		Ae x DC	Ap x DC	(sfm)		1/8	1/4	3/8	1/2	5/8	3/4
		Profile			405	RPM	12377	6188	4126	3094	2475	2063
			≤ 0.4	≤ 1	(324486)	Fz	0.0005	0.0012	0.0023	0.0030	0.0039	0.0042
TOOL STEELS A2 D2 H13 L2 M2	≤ 375 Bhn or				-	Feed (ipm)	24.8	29.7	38.0	37.1	38.6	34.7
, , , , , P20, S7, T15, W2	≤ 40 HRc	Slot			320	RPM	9779	4890	3260	2445	1956	1630
			1	≤ 0.4	(256-384)	Fz	0.0005	0.0012	0.0023	0.0030	0.0039	0.0042
						Feed (ipm)	19.6	23.5	30.0	29.3	30.5	27.4
		Profile			210	RPM	6418	3209	2139	1604	1284	1070
			≤ 0.4	≤ 1	(168252)	Fz	0.0004	0.0010	0.0019	0.0025	0.0032	0.0035
H TOOL STEELS A2 D2 H13 L2 M2	≤ 475 Bhn				-	Feed (ipm)	10.3	12.8	16.3	16.0	16.4	15.0
, , , , , P20, S7, T15, W2	or ≤ 50 HRc	Slot			170	RPM	5195	2598	1732	1299	1039	866
			1	≤ 0.4	(136-204)	Fz	0.0004	0.0010	0.0019	0.0025	0.0032	0.0035
						Feed (ipm)	8.3	10.4	13.2	13.0	13.3	12.1
		Profile			90	RPM	2750	1375	917	688	550	458
			≤ 0.4	≤ 1	(72108)	Fz	0.0002	0.0005	0.0010	0.0013	0.0017	0.0018
TOOL STEELS A2 D2 H13 L2 M2	≤ 655 Bhn				-	Feed (ipm)	2.2	2.8	3.7	3.6	3.7	3.3
, , , , , P20, S7, T15, W2	or ≤ 60 HRc	Slot			70	RPM	2139	1070	713	535	428	357
			1	≤ 0.4	(5684)	Fz	0.0002	0.0005	0.0010	0.0013	0.0017	0.0018
					-	Feed (ipm)	1.7	2.1	2.9	2.8	2.9	2.6

Bhn (Brinell) HRc (Rockwell C) rpm = Vc x 3.82 / DC ipm = Fz x 4 x rpm reduce speed and feed for materials harder than listed reduce feed and Ae when finish milling (.02 x DC maximum) feed rates listed have chip thinning adjustments included where applicable refer to the SGS Tool Wizard® for complete technical information (www.kyocera-sgstool.com)

Series ZD1MCR			Ae	Ap Ae	Vc				D	iameter (D (mm)	C)
Metric	Hardness		Ae x DC	Ap x DC	(m/min)		3	6	8	10	12	16	20
		Profile			123	RPM	13087	6544	4908	3926	3272	2454	1963
			≤ 0.4	≤ 1	(99148)	Fz	0.012	0.029	0.049	0.061	0.072	0.083	0.112
TOOL STEELS A2 D2 H13 L2 M2	≤ 375 Bhn				-	Feed (mm/min)	628	754	963	963	942	817	879
, , , , , P20, S7, T15, W2	or ≤ 40 HRc	Slot			98	RPM	10340	5170	3878	3102	2585	1939	1551
			1	≤ 0.4	(78-117)	Fz	0.012	0.029	0.049	0.061	0.072	0.083	0.112
						Feed (mm/min)	496	596	761	761	744	645	695
		Profile			64	RPM	6786	3393	2545	2036	1696	1272	1018
			≤ 0.4	≤ 1	(5177)	Fz	0.010	0.024	0.041	0.051	0.060	0.068	0.093
H TOOL STEELS A2 D2 H13 L2 M2	≤ 475 Bhn				-	Feed (mm/min)	261	326	413	413	407	347	380
, , , , , P20, S7, T15, W2	or ≤ 50 HRc	Slot			52	RPM	5493	2747	2060	1648	1373	1030	824
			1	≤ 0.4	(41-62)	Fz	0.010	0.024	0.041	0.051	0.060	0.068	0.093
						Feed (mm/min)	211	264	334	334	330	281	308
		Profile			27	RPM	2908	1454	1091	872	727	545	436
			≤ 0.4	≤ 1	22	Fz	0.005	0.012	0.021	0.027	0.031	0.036	0.048
TOOL STEELS ADHLM	≤ 655 Bhn				(-33)	Feed (mm/min)	56	70	93	93	91	79	84
2, 2, 13, 2, 2, P20, S7, T15, W2	or ≤ 60 HRc	Slot			21	RPM	2262	1131	848	679	565	424	339
			1	≤ 0.4	(1726)	Fz	0.005	0.012	0.021	0.027	0.031	0.036	0.048
					-	Feed (mm/min)	43	54	72	72	71	62	65

Bhn (Brinell) HRc (Rockwell C) rpm = (Vc x 1000) / (DC x 3.14) ipm = Fz x 4 x rpm reduce speed and feed for materials harder than listed
