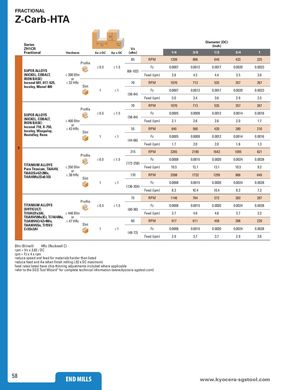

| Series ZH1CR | Ae | Ap Ae | Vc | Diameter (DC (inch) | ) | ||||||
| Fractional | Hardness | Ae x DC | Ap x DC | (sfm) | 1/4 | 3/8 | 1/2 | 3/4 | 1 | ||
| Profile | 85 | RPM | 1299 | 866 | 649 | 433 | 325 | ||||
| SUPER ALLOYS | ≤ 0.5 | ≤ 1.5 | (68-102) | Fz | 0.0007 | 0.0012 | 0.0017 | 0.0020 | 0.0023 | ||
| (NICKEL, COBALT, IRON BASE) | ≤ 300 Bhn or | Feed (ipm) | 3.6 | 4.2 | 4.4 | 3.5 | 3.0 | ||||
| Inconel 601, 617, 625, Incolo Monel 400 | ≤ 32 HRc | Slot | 70 | RPM | 1070 | 713 | 535 | 357 | 267 | ||
| y, | 1 | ≤ 1 | (56-84) | Fz | 0.0007 | 0.0012 | 0.0017 | 0.0020 | 0.0023 | ||
| Feed (ipm) | 3.0 | 3.4 | 3.6 | 2.9 | 2.5 | ||||||
| rofile | 70 | RPM | 1070 | 713 | 535 | 357 | 267 | ||||
| SUPER ALLOYS | ≤ 0.5 | ≤ 1.5 | (56-84) | Fz | 0.0005 | 0.0009 | 0.0012 | 0.0014 | 0.0016 | ||
| (NICKEL, COBALT, IRON BASE) | ≤ 400 Bhn or | Feed (ipm) | 2.1 | 2.6 | 2.6 | 2.0 | 1.7 | ||||
| Inconel 718, X-750, Incoloy, Waspaloy, | ≤ 43 HRc | Slot | 55 | RPM | 840 | 560 | 420 | 280 | 210 | ||
| Hastelloy, Rene | 1 | ≤ 1 | (44-66) | Fz | 0.0005 | 0.0009 | 0.0012 | 0.0014 | 0.0016 | ||
| Feed (ipm) | 1.7 | 2.0 | 2.0 | 1.6 | 1.3 | ||||||
| Profile | 215 | RPM | 3285 | 2190 | 1643 | 1095 | 821 | ||||
| ≤ 0.5 | ≤ 1.5 | Fz | 0.0008 | 0.0015 | 0.0020 | 0.0024 | 0.0028 | ||||
| TITANIUM ALLOYS Pure Titanium, Ti6Al4V, | ≤ 350 Bhn or | (172-258) | Feed (ipm) | 10.5 | 13.1 | 13.1 | 10.5 | 9.2 | |||
| Ti6Al2Sn4Zr2Mo, Ti4Al4Mo2Sn0.5Si | ≤ 38 HRc | Slot | 170 | RPM | 2598 | 1732 | 1299 | 866 | 649 | ||
| 1 | ≤ 1 | (136-204) | Fz | 0.0008 | 0.0015 | 0.0020 | 0.0024 | 0.0028 | |||
| Feed (ipm) | 8.3 | 10.4 | 10.4 | 8.3 | 7.3 | ||||||
| rofile | 75 | RPM | 1146 | 764 | 573 | 382 | 287 | ||||
| TITANIUM ALLOYS (DIFFICULT) | ≤ 0.5 | ≤ 1.5 | (60-90) | Fz | 0.0008 | 0.0015 | 0.0020 | 0.0024 | 0.0028 | ||
| Ti10Al2Fe3Al, Ti5Al5V5Mo3Cr Ti7Al4Mo | ≤ 440 Bhn or | Feed (ipm) | 3.7 | 4.6 | 4.6 | 3.7 | 3.2 | ||||
| , , Ti3Al8V6Cr4Zr4Mo, Ti6Al6V6Sn Ti15V3 | ≤ 47 HRc | Slot | 60 | RPM | 917 | 611 | 458 | 306 | 229 | ||
| , Cr3Sn3Al | 1 | ≤ 1 | (4872) | Fz | 0.0008 | 0.0015 | 0.0020 | 0.0024 | 0.0028 | ||
| - | Feed (ipm) | 2.9 | 3.7 | 3.7 | 2.9 | 2.6 |
S
Bhn (Brinell) HRc (Rockwell C) rpm = Vc x 3.82 / DC ipm = Fz x 4 x rpm reduce speed and feed for materials harder than listed reduce feed and Ae when finish milling (.02 x DC maximum) feed rates listed have chip thinning adjustments included where applicable refer to the SGS Tool Wizard® for complete technical information (www.kyocera-sgstool.com)
