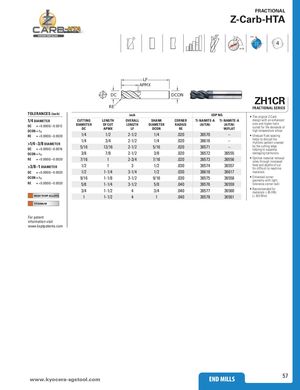

FRACTIONAL Z-Carb-HTA 41° POS 38° 4 ≠ LF APMX DC DCON RE ZH1CR FRACTIONAL SERIES TOLERANCES (inch) inch EDP NO. • The original Z-Carb 1/4 DIAMETER CUTTING LENGTH OVERALL SHANK CORNER Ti-NAMITE-A Ti-NAMITE-A design with an enhanced DIAMETER OF CUT LENGTH DIAMETER RADIUS (AlTiN) (AlTiN) core and higher helix DC = +0.0000/–0.0012 suited for the demands of DC APMX LF DCON RE W/FLAT DCON = h 6 high temperature alloys RE = +0.0000/–0.0020 1/4 1/2 2-1/2 1/4 .020 36570 – • Unequal flute spacing helps to disrupt the 1/4 3/4 2-1/2 1/4 .020 36616 – rhythmic pattern created >1/4–3/8 DIAMETER by the cutting edge DC = +0.0000/–0.0016 5/16 13/16 2-1/2 5/16 .020 36571 – helping to suppress DCON = h 6 3/8 7/8 2-1/2 3/8 .020 36572 36555 damaging harmonics • Optimal material removal RE = +0.0000/–0.0020 7/16 1 2-3/4 7/16 .020 36573 36556 rates through increased >3/8–1 DIAMETER 1/2 1 3 1/2 .030 36574 36557 feed and depths of cut for difficult to machine DC = +0.0000/–0.0020 1/2 1-1/4 3-1/4 1/2 .030 36618 36617 materials DCON = h 6 9/16 1-1/8 3-1/2 9/16 .030 36575 36558 • Enhanced corner geometry with tight RE = +0.0000/–0.0020 5/8 1-1/4 3-1/2 5/8 .040 36576 36559 tolerance corner radii • Recommended for 3/4 1-1/2 4 3/4 .040 36577 36560 materials ≤ 45 HRc HIGH TEMP ALLOYS 1 1-1/2 4 1 .040 36578 36561 (≤ 420 Bhn) TITANIUM For patent information visit www.ksptpatents.com 57 END MILLS www.kyocera-sgstool.com END MILLS
