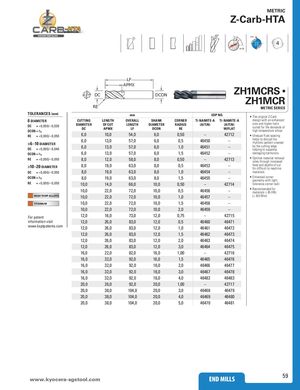

Общий каталог SGS 2021 - страница 59

METRIC Z-Carb-HTA 41° POS 38° 4 ≠ LF APMX DC DCON ZH1MCRS • RE ZH1MCR METRIC SERIES TOLERANCES (mm) mm EDP NO. • The original Z-Carb 6 DIAMETER CUTTING LENGTH OVERALL SHANK CORNER Ti-NAMITE-A Ti-NAMITE-A design with an enhanced DIAMETER OF CUT LENGTH DIAMETER RADIUS (AlTiN) (AlTiN) core and higher helix DC = +0,000/–0,030 suited for the demands of DC APMX LF DCON RE W/FLAT DCON = h 6 high temperature alloys RE = +0,000/–0,050 6,0 10,0 54,0 6,0 0,50 – 42712 • Unequal flute spacing helps to disrupt the 6,0 13,0 57,0 6,0 0,5 46450 – rhythmic pattern created >6–10 DIAMETER by the cutting edge DC = +0,000/–0,040 6,0 13,0 57,0 6,0 1,0 46451 – helping to suppress DCON = h 6 6,0 13,0 57,0 6,0 1,5 46452 – damaging harmonics • Optimal material removal RE = +0,000/–0,050 8,0 12,0 58,0 8,0 0,50 – 42713 rates through increased >10–20 DIAMETER 8,0 19,0 63,0 8,0 0,5 46453 – feed and depths of cut for difficult to machine DC = +0,000/–0,050 8,0 19,0 63,0 8,0 1,0 46454 – materials DCON = h 6 8,0 19,0 63,0 8,0 1,5 46455 – • Enhanced corner geometry with tight RE = +0,000/–0,050 10,0 14,0 66,0 10,0 0,50 – 42714 tolerance corner radii • Recommended for 10,0 22,0 72,0 10,0 0,5 46456 – materials ≤ 45 HRc HIGH TEMP ALLOYS 10,0 22,0 72,0 10,0 1,0 46457 – (≤ 420 Bhn) TITANIUM 10,0 22,0 72,0 10,0 1,5 46458 – 10,0 22,0 72,0 10,0 2,0 46459 – For patent 12,0 16,0 73,0 12,0 0,75 – 42715 information visit 12,0 26,0 83,0 12,0 0,5 46460 46471 www.ksptpatents.com 12,0 26,0 83,0 12,0 1,0 46461 46472 12,0 26,0 83,0 12,0 1,5 46462 46473 12,0 26,0 83,0 12,0 2,0 46463 46474 12,0 26,0 83,0 12,0 3,0 46464 46475 16,0 22,0 82,0 16,0 1,00 – 42716 16,0 32,0 92,0 16,0 1,5 46465 46476 16,0 32,0 92,0 16,0 2,0 46466 46477 16,0 32,0 92,0 16,0 3,0 46467 46478 16,0 32,0 92,0 16,0 4,0 46482 46483 20,0 26,0 92,0 20,0 1,00 – 42717 20,0 38,0 104,0 20,0 3,0 46468 46479 20,0 38,0 104,0 20,0 4,0 46469 46480 20,0 38,0 104,0 20,0 5,0 46470 46481 59 END MILLS www.kyocera-sgstool.com END MILLS
