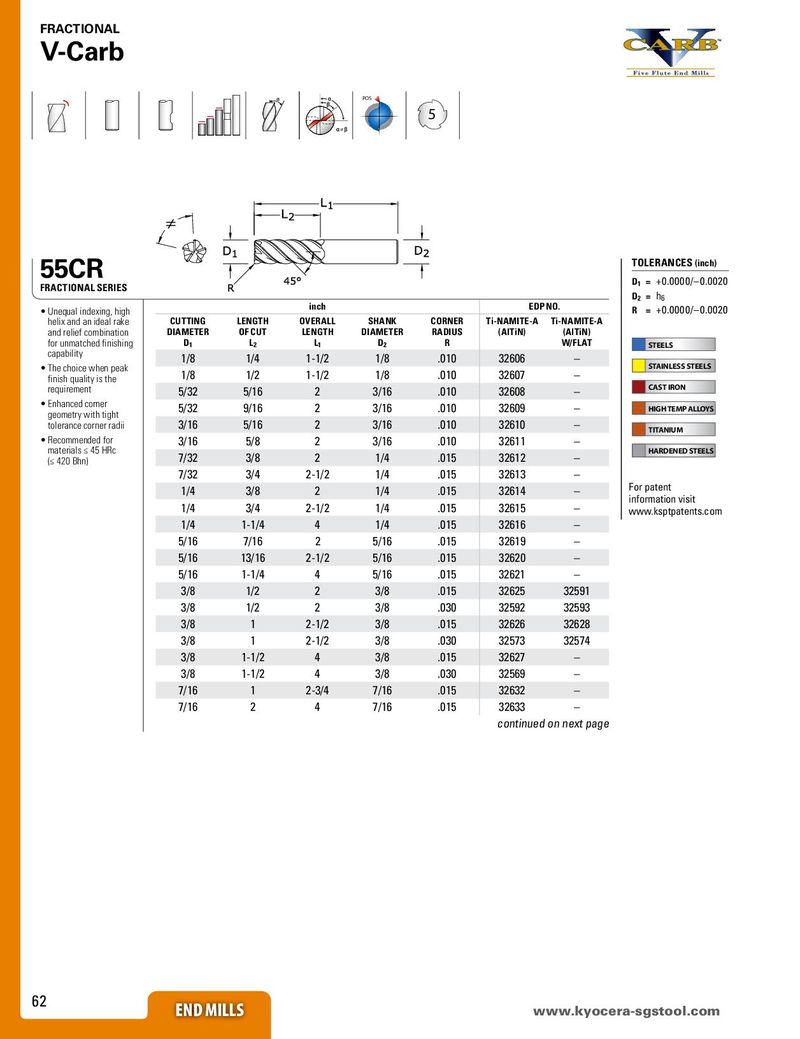

55CR TOLERANCES (inch) D = +0.0000/–0.0020 FRACTIONAL SERIES 1 D = h6 2
| inch | EDP | NO. | ||||
| CUTTING DIAMETER D1 | LENGTH OF CUT L2 | OVERALL LENGTH L1 | SHANK DIAMETER D2 | CORNER RADIUS R | Ti-NAMITE-A (AlTiN) | Ti-NAMITE-A (AlTiN) W/FLAT |
| 1/8 | 1/4 | 1-1/2 | 1/8 | .010 | 32606 | – |
| 1/8 | 1/2 | 1-1/2 | 1/8 | .010 | 32607 | – |
| 5/32 | 5/16 | 2 | 3/16 | .010 | 32608 | – |
| 5/32 | 9/16 | 2 | 3/16 | .010 | 32609 | – |
| 3/16 | 5/16 | 2 | 3/16 | .010 | 32610 | – |
| 3/16 | 5/8 | 2 | 3/16 | .010 | 32611 | – |
| 7/32 | 3/8 | 2 | 1/4 | .015 | 32612 | – |
| 7/32 | 3/4 | 2-1/2 | 1/4 | .015 | 32613 | – |
| 1/4 | 3/8 | 2 | 1/4 | .015 | 32614 | – |
| 1/4 | 3/4 | 2-1/2 | 1/4 | .015 | 32615 | – |
| 1/4 | 1-1/4 | 4 | 1/4 | .015 | 32616 | – |
| 5/16 | 7/16 | 2 | 5/16 | .015 | 32619 | – |
| 5/16 | 13/16 | 2-1/2 | 5/16 | .015 | 32620 | – |
| 5/16 | 1-1/4 | 4 | 5/16 | .015 | 32621 | – |
| 3/8 | 1/2 | 2 | 3/8 | .015 | 32625 | 32591 |
| 3/8 | 1/2 | 2 | 3/8 | .030 | 32592 | 32593 |
| 3/8 | 1 | 2-1/2 | 3/8 | .015 | 32626 | 32628 |
| 3/8 | 1 | 2-1/2 | 3/8 | .030 | 32573 | 32574 |
| 3/8 | 1-1/2 | 4 | 3/8 | .015 | 32627 | – |
| 3/8 | 1-1/2 | 4 | 3/8 | .030 | 32569 | – |
| 7/16 | 1 | 2-3/4 | 7/16 | .015 | 32632 | – |
| 7/16 | 2 | 4 | 7/16 | .015 | 32633 | – |
finish quality is the
TITANIUM (≤ 420 Bhn)
information visit
continued on next page
