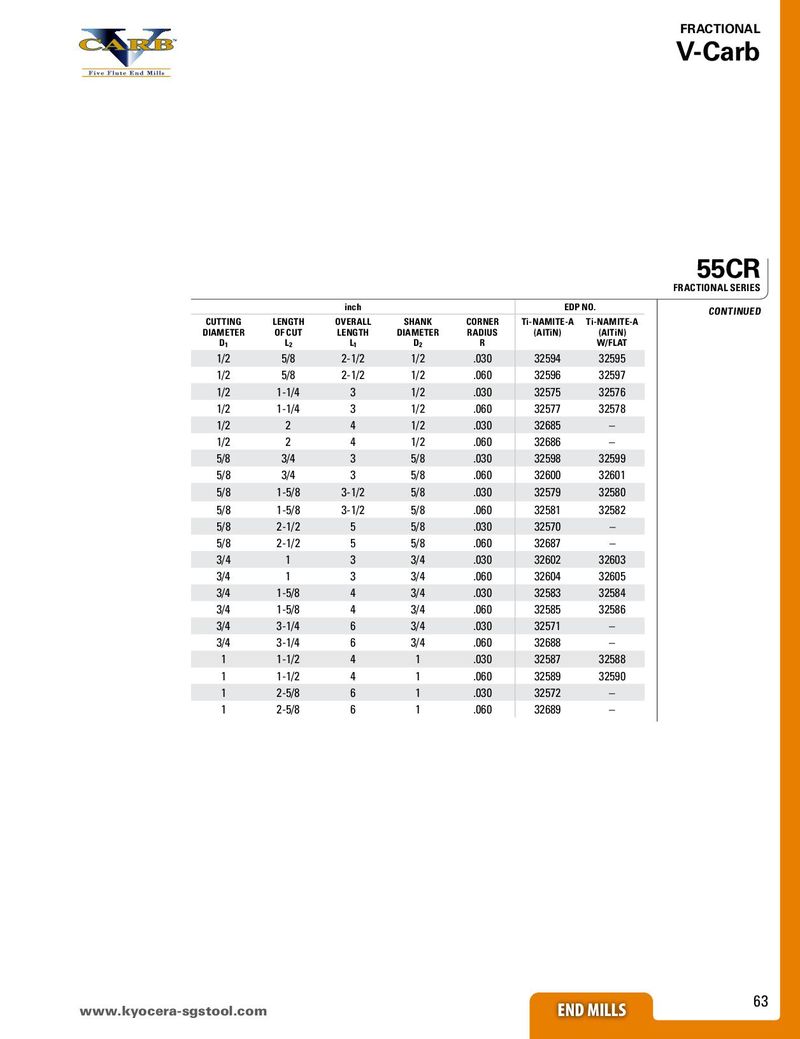

Общий каталог SGS 2018 - страница 63
Навигация
Каталог SGS шестизубые фрезы T-carb
Каталог SGS микро инструмент 2021
Каталог SGS фрезы для алюминия S-carb
Каталог SGS высокопроизводительные черновые фрезы
Каталог SGS инструмент для обработки алюминия
Общий каталог SGS 2015 на русском
55CR
FRACTIONAL SERIES
| inch | EDP | NO. | ||||
| CUTTING DIAMETER D1 | LENGTH OF CUT L2 | OVERALL LENGTH L1 | SHANK DIAMETER D2 | CORNER RADIUS R | Ti-NAMITE-A (AlTiN) | Ti-NAMITE-A (AlTiN) W/FLAT |
| 1/2 | 5/8 | 2-1/2 | 1/2 | .030 | 32594 | 32595 |
| 1/2 | 5/8 | 2-1/2 | 1/2 | .060 | 32596 | 32597 |
| 1/2 | 1-1/4 | 3 | 1/2 | .030 | 32575 | 32576 |
| 1/2 | 1-1/4 | 3 | 1/2 | .060 | 32577 | 32578 |
| 1/2 | 2 | 4 | 1/2 | .030 | 32685 | – |
| 1/2 | 2 | 4 | 1/2 | .060 | 32686 | – |
| 5/8 | 3/4 | 3 | 5/8 | .030 | 32598 | 32599 |
| 5/8 | 3/4 | 3 | 5/8 | .060 | 32600 | 32601 |
| 5/8 | 1-5/8 | 3-1/2 | 5/8 | .030 | 32579 | 32580 |
| 5/8 | 1-5/8 | 3-1/2 | 5/8 | .060 | 32581 | 32582 |
| 5/8 | 2-1/2 | 5 | 5/8 | .030 | 32570 | – |
| 5/8 | 2-1/2 | 5 | 5/8 | .060 | 32687 | – |
| 3/4 | 1 | 3 | 3/4 | .030 | 32602 | 32603 |
| 3/4 | 1 | 3 | 3/4 | .060 | 32604 | 32605 |
| 3/4 | 1-5/8 | 4 | 3/4 | .030 | 32583 | 32584 |
| 3/4 | 1-5/8 | 4 | 3/4 | .060 | 32585 | 32586 |
| 3/4 | 3-1/4 | 6 | 3/4 | .030 | 32571 | – |
| 3/4 | 3-1/4 | 6 | 3/4 | .060 | 32688 | – |
| 1 | 1-1/2 | 4 | 1 | .030 | 32587 | 32588 |
| 1 | 1-1/2 | 4 | 1 | .060 | 32589 | 32590 |
| 1 | 2-5/8 | 6 | 1 | .030 | 32572 | – |
| 1 | 2-5/8 | 6 | 1 | .060 | 32689 | – |
