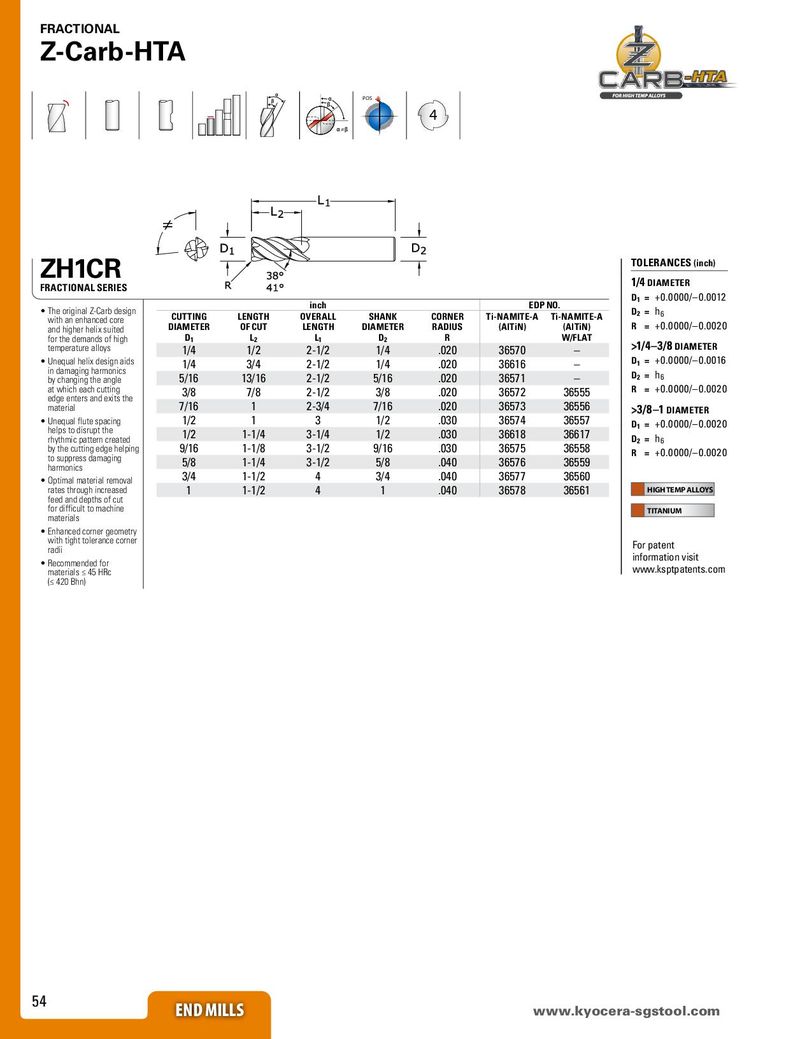

ZH1CR TOLERANCES (inch) 1/4 DIAMETER FRACTIONAL SERIES D = +0.0000/–0.0012
| • The original Z-Carb design | inch | EDP | NO. | ||||
| with an enhanced core and higher helix suited for the demands of high | CUTTING DIAMETER D1 | LENGTH OF CUT L2 | OVERALL LENGTH L1 | SHANK DIAMETER D2 | CORNER RADIUS R | Ti-NAMITE-A (AlTiN) | Ti-NAMITE-A (AlTiN) W/FLAT |
| temperature alloys | 1/4 | 1/2 | 2-1/2 | 1/4 | .020 | 36570 | – |
| • Unequal helix design aids in damain harmonics | 1/4 | 3/4 | 2-1/2 | 1/4 | .020 | 36616 | – |
| gg by changing the angle | 5/16 | 13/16 | 2-1/2 | 5/16 | .020 | 36571 | – |
| at which each cutting edge enters and exits the | 3/8 | 7/8 | 2-1/2 | 3/8 | .020 | 36572 | 36555 |
| material | 7/16 | 1 | 2-3/4 | 7/16 | .020 | 36573 | 36556 |
| • Unequal flute spacing | 1/2 | 1 | 3 | 1/2 | .030 | 36574 | 36557 |
| helps to disrupt the rhythmic pattern created | 1/2 | 1-1/4 | 3-1/4 | 1/2 | .030 | 36618 | 36617 |
| by the cutting edge helping | 9/16 | 1-1/8 | 3-1/2 | 9/16 | .030 | 36575 | 36558 |
| to suppress damaging harmonics | 5/8 | 1-1/4 | 3-1/2 | 5/8 | .040 | 36576 | 36559 |
| • Optimal material removal | 3/4 | 1-1/2 | 4 | 3/4 | .040 | 36577 | 36560 |
| rates through increased feed and depths of cut for difficult to machine materials | 1 | 1-1/2 | 4 | 1 | .040 | 36578 | 36561 |
1
D 1 =
TITANIUM
- Enhanced corner geometry with tight tolerance corner For patent radii
information visit
- Recommended for www.ksptpatents.com materials ≤ 45 HRc (≤ 420 Bhn)
