Series Z1M, Z1MB			Ae	Ap Ae	Vc					Diame (m	ter (D1) m)
Metric	Hardness		Ae x D1	Ap x D1	(m/min)		3	6	8	10	12	16	20	25
		Profile			104	RPM	10987	5493	4120	3296	2747	2060	1648	1318
			≤ 0.5	≤ 1.5	(83124)	Fz	0.005	0.014	0.023	0.029	0.034	0.046	0.051	0.050
STAINLESS STEELS (DIFFICULT)	≤ 275 Bhn				-	Feed (mm/min)	211	316	387	387	369	380	334	264
304, 304L, 316, 316L	or ≤ 28 HRc	Slot			82	RPM	8725	4362	3272	2617	2181	1636	1309	1047
			1	≤ 1	(66-99)	Fz	0.005	0.014	0.023	0.029	0.034	0.046	0.051	0.050
M						Feed (mm/min)	168	251	307	307	293	302	265	209
		Pfil			94	RPM	10017	5009	3756	3005	2504	1878	1503	1202
		roe	≤ 0.5	≤ 1.5		Fz	0.005	0.014	0.023	0.029	0.034	0.046	0.051	0.050
STAINLESS STEELS (PH)	≤ 325 Bhn				(76-113)	Feed (mm/min)	192	288	353	353	337	346	305	240
13-8 PH, 15-5 PH, 17-4 PH, Custom 450	or ≤ 35 HRc	Slot			76	RPM	8078	4039	3029	2424	2020	1515	1212	969
			1	≤ 1	(6191)	Fz	0.005	0.014	0.023	0.029	0.034	0.046	0.051	0.050
					-	Feed (mm/min)	155	233	284	284	271	279	246	194
		Pfil			24	RPM	2585	1293	969	776	646	485	388	310
SUPER ALLOYS		roe	≤ 0.5	≤ 1.5		Fz	0.005	0.010	0.017	0.021	0.024	0.033	0.037	0.038
(NICKEL, COBALT,	≤ 300 Bhn				(20-29)	Feed (mm/min)	55	50	66	53	62	65	58	47
IRON BASE) Inconel 601, 617, 625,	or ≤ 32 HRc	Slt			20	RPM	2100	1050	788	630	525	394	315	252
Incoloy, Monel 400		o	1	≤ 1		Fz	0.005	0.010	0.017	0.021	0.024	0.033	0.037	0.038
					(16-24)	Feed (mm/min)	40	40	54	54	50	52	47	38
		Profile			19	RPM	2003	1002	751	601	501	376	301	240
SUPER ALLOYS			≤ 0.5	≤ 1.5		Fz	0.002	0.007	0.011	0.013	0.017	0.020	0.024	0.025
(NICKEL, COBALT, IRON BASE)	≤ 400 Bhn				(15-23)	Feed (mm/min)	19	29	32	32	34	31	29	24
Inconel 718, X-750, Incoloy Waspaloy	or ≤ 43 HRc				15	RPM	1583	792	594	475	396	297	238	190
, , Hastelloy, Rene		Slot	1	≤ 1		Fz	0.002	0.007	0.011	0.013	0.017	0.020	0.024	0.025
					(12-18)	Feed (mm/min)	15	23	25	25	27	24	23	19
S		Pfil			66	RPM	6947	3474	2605	2084	1737	1303	1042	834
TITANIUM ALLOYS		roe	≤ 0.5	≤ 1.5	(5279)	Fz	0.005	0.012	0.021	0.027	0.031	0.041	0.045	0.045
Pure Titanium,	≤ 350 Bhn				-	Feed (mm/min)	133	167	222	222	217	213	189	150
Ti6Al4V, Ti6Al2Sn4Zr2Mo,	or ≤ 38 HRc	Slot			52	RPM	5493	2747	2060	1648	1373	1030	824	659
Ti4Al4Mo2Sn0.5Si			1	≤ 1		Fz	0.005	0.012	0.021	0.027	0.031	0.041	0.045	0.045
					(41-62)	Feed (mm/min)	105	132	176	176	171	169	149	119
					23	RPM	2424	1212	909	727	606	454	364	291
TITANIUM ALLOYS (DIFFICULT)		Profile	≤ 0.5	≤ 1.5		Fz	0.005	0.012	0.021	0.027	0.031	0.041	0.045	0.045
Ti10Al2Fe3Al, Ti5Al5V5Mo3Cr,	≤ 440 Bhn				(18-27)	Feed (mm/min)	47	58	78	78	76	74	66	52
Ti7Al4Mo, Ti3Al8V6Cr4Zr4Mo,	or ≤ 47 HRc	Slot			18	RPM	1939	969	727	582	485	364	291	233
Ti6Al6V6Sn, Ti15V3 Cr3Sn3Al			1	≤ 1		Fz	0.005	0.012	0.021	0.027	0.031	0.041	0.045	0.045
					(15-22)	Feed (mm/min)	37	47	62	62	60	60	53	42

Bhn (Brinell) HRc (Rockwell C) rpm = (Vc x 1000) / (D x 3.14) 1 ipm = Fz x 4 x rpm reduce speed and feed for materials harder than listed

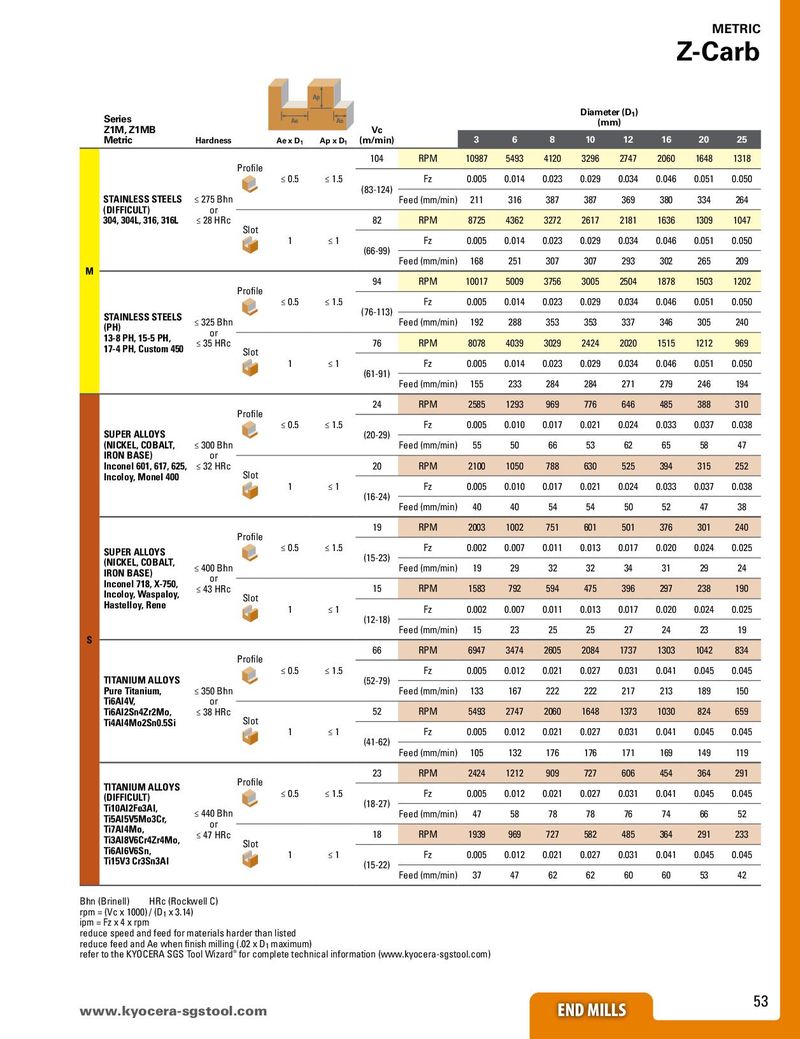

Общий каталог SGS 2018 - страница 53
