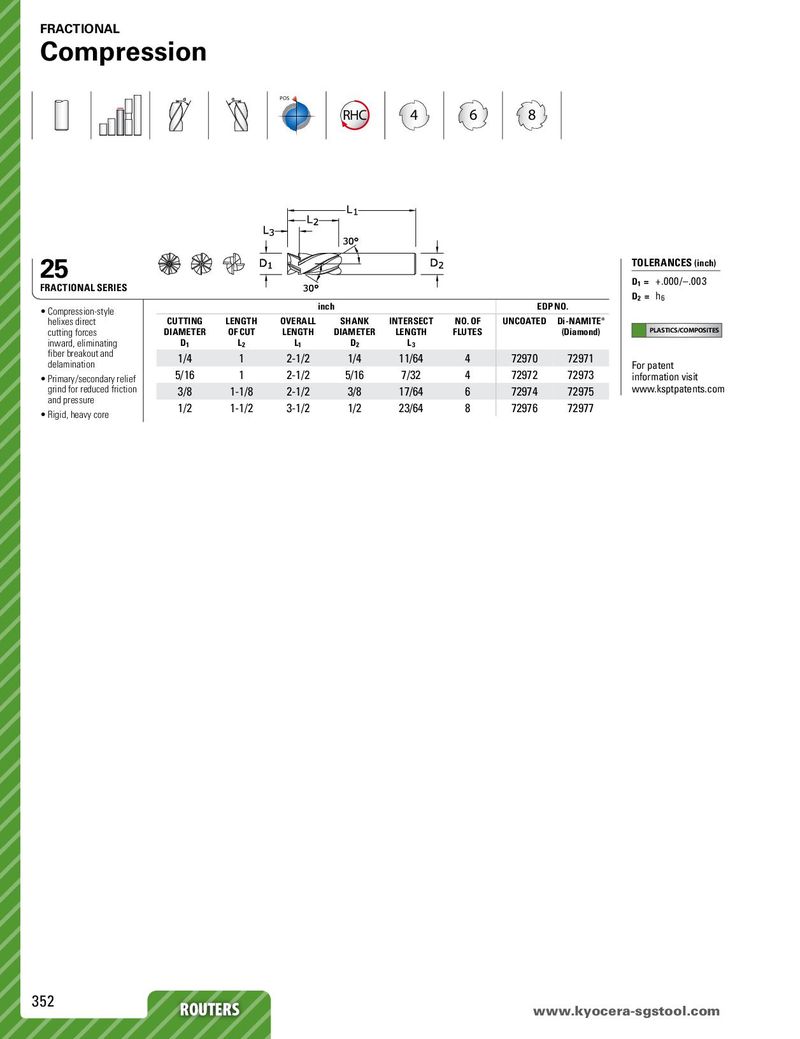

Общий каталог SGS 2018 - страница 352

FRACTIONAL Compression POS RHC 4 6 8 25 TOLERANCES (inch) FRACTIONAL SERIES D1 = +.000/–.003 D2 = h6 • Compression-style inch EDP NO. helixes direct CUTTING LENGTH OVERALL SHANK INTERSECT NO. OF UNCOATED Di-NAMITE® cutting forces DIAMETER OF CUT LENGTH DIAMETER LENGTH FLUTES (Diamond) PLASTICS/COMPOSITES inward, eliminating D1 L2 L1 D2 L3 fiber breakout and 1/4 1 2-1/2 1/4 11/64 4 72970 72971 delamination For patent • Primary/secondary relief 5/16 1 2-1/2 5/16 7/32 4 72972 72973 information visit grind for reduced friction 3/8 1-1/8 2-1/2 3/8 17/64 6 72974 72975 www.ksptpatents.com and pressure 1/2 1-1/2 3-1/2 1/2 23/64 8 72976 72977 • Rigid, heavy core 352 ROUTERS www.RkOyUocTEeRraS-sgstool.com
