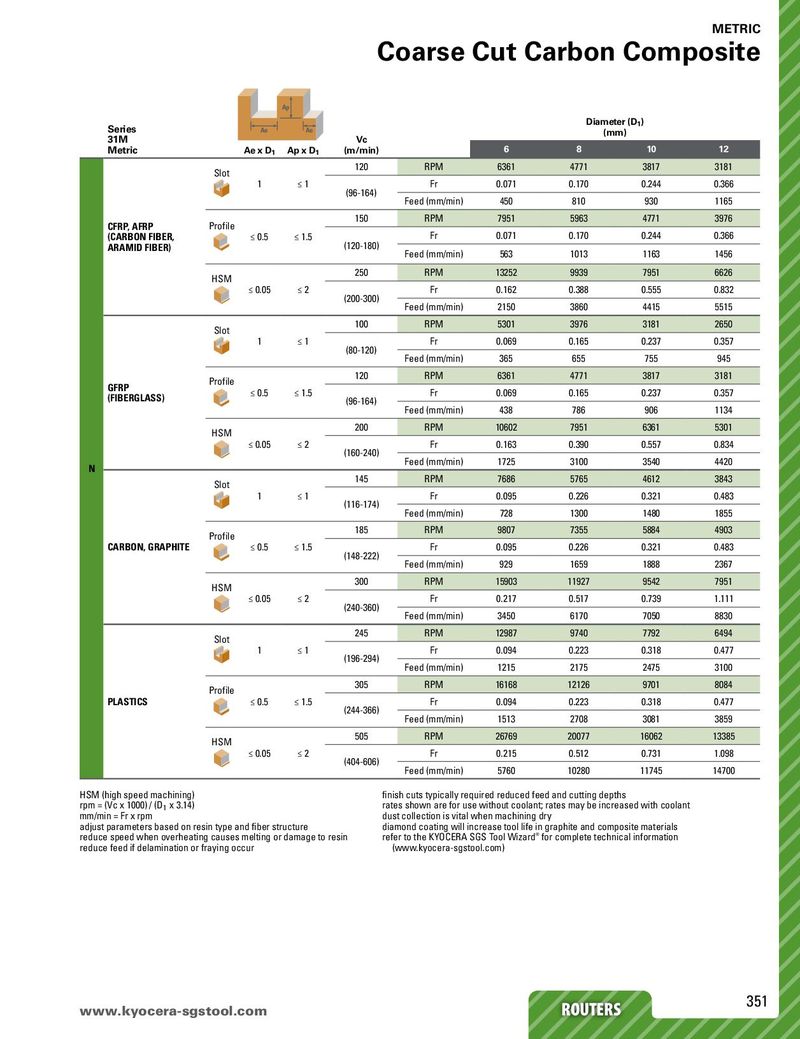

METRIC Coarse Cut Carbon Composite Ap Series Diameter (D1) Ae Ae (mm) 31M Vc Metric Ae x D1 Ap x D1 (m/min) 6 8 10 12 Slot 120 RPM 6361 4771 3817 3181 1 ≤1 (96-164) Fr 0.071 0.170 0.244 0.366 Feed (mm/min) 450 810 930 1165 CFRP, AFRP Profile 150 RPM 7951 5963 4771 3976 (CARBON FIBER, ≤ 0.5 ≤ 1.5 Fr 0.071 0.170 0.244 0.366 ARAMID FIBER) (120-180) Feed (mm/min) 563 1013 1163 1456 HSM 250 RPM 13252 9939 7951 6626 ≤ 0.05 ≤2 (200-300) Fr 0.162 0.388 0.555 0.832 Feed (mm/min) 2150 3860 4415 5515 Slot 100 RPM 5301 3976 3181 2650 1 ≤1 (80-120) Fr 0.069 0.165 0.237 0.357 Feed (mm/min) 365 655 755 945 Profile 120 RPM 6361 4771 3817 3181 GFRP ≤ 0.5 ≤ 1.5 Fr 0.069 0.165 0.237 0.357 (FIBERGLASS) (96-164) Feed (mm/min) 438 786 906 1134 HSM 200 RPM 10602 7951 6361 5301 ≤ 0.05 ≤2 (160-240) Fr 0.163 0.390 0.557 0.834 N Feed (mm/min) 1725 3100 3540 4420 Slot 145 RPM 7686 5765 4612 3843 1 ≤1 (116-174) Fr 0.095 0.226 0.321 0.483 Feed (mm/min) 728 1300 1480 1855 Profile 185 RPM 9807 7355 5884 4903 CARBON, GRAPHITE ≤ 0.5 ≤ 1.5 (148-222) Fr 0.095 0.226 0.321 0.483 Feed (mm/min) 929 1659 1888 2367 HSM 300 RPM 15903 11927 9542 7951 ≤ 0.05 ≤2 (240-360) Fr 0.217 0.517 0.739 1.111 Feed (mm/min) 3450 6170 7050 8830 Slot 245 RPM 12987 9740 7792 6494 1 ≤1 (196-294) Fr 0.094 0.223 0.318 0.477 Feed (mm/min) 1215 2175 2475 3100 Profile 305 RPM 16168 12126 9701 8084 PLASTICS ≤ 0.5 ≤ 1.5 (244-366) Fr 0.094 0.223 0.318 0.477 Feed (mm/min) 1513 2708 3081 3859 HSM 505 RPM 26769 20077 16062 13385 ≤ 0.05 ≤2 (404-606) Fr 0.215 0.512 0.731 1.098 Feed (mm/min) 5760 10280 11745 14700 HSM (high speed machining) finish cuts typically required reduced feed and cutting depths rpm = (Vc x 1000) / (D1 x 3.14) rates shown are for use without coolant; rates may be increased with coolant mm/min = Fr x rpm dust collection is vital when machining dry adjust parameters based on resin type and fiber structure diamond coating will increase tool life in graphite and composite materials reduce speed when overheating causes melting or damage to resin refer to the KYOCERA SGS Tool Wizard® for complete technical information reduce feed if delamination or fraying occur   (www.kyocera-sgstool.com) www.kyocerRaO-sUgTsEtRoSol.com ROUTERS 351
