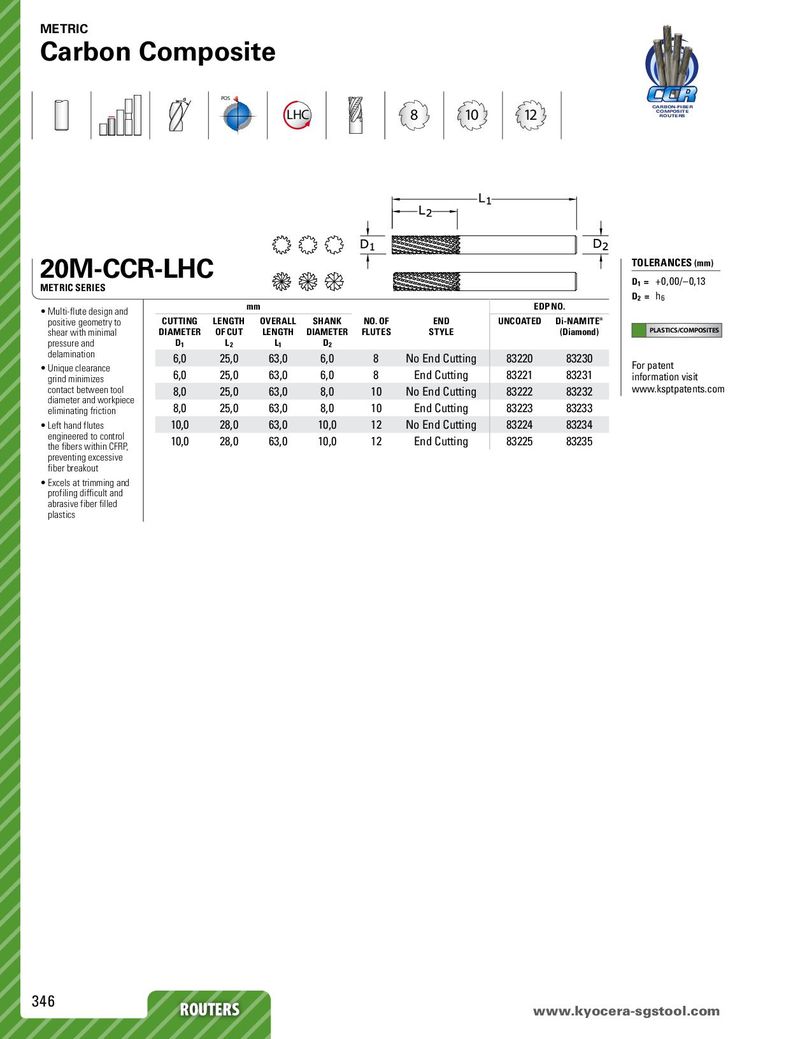

METRIC Carbon Composite POS CCR CARBON-FIBER LHC 8 10 12 COMPOSITE ROUTERS 20M-CCR-LHC TOLERANCES (mm) METRIC SERIES D1 = +0,00/–0,13 D2 = h6 • Multi-flute design and mm EDP NO. positive geometry to CUTTING LENGTH OVERALL SHANK NO. OF END UNCOATED Di-NAMITE® shear with minimal DIAMETER OF CUT LENGTH DIAMETER FLUTES STYLE (Diamond) PLASTICS/COMPOSITES pressure and D1 L2 L1 D2 delamination 6,0 25,0 63,0 6,0 8 No End Cutting 83220 83230 • Unique clearance 6,0 25,0 63,0 6,0 8 End Cutting 83221 83231 For patent grind minimizes information visit contact between tool 8,0 25,0 63,0 8,0 10 No End Cutting 83222 83232 www.ksptpatents.com diameter and workpiece 8,0 25,0 63,0 8,0 10 End Cutting 83223 83233 eliminating friction • Left hand flutes 10,0 28,0 63,0 10,0 12 No End Cutting 83224 83234 engineered to control 10,0 28,0 63,0 10,0 12 End Cutting 83225 83235 the fibers within CFRP, preventing excessive fiber breakout • Excels at trimming and profiling difficult and abrasive fiber filled plastics 346 ROUTERS www.RkOyUocTEeRraS-sgstool.com
