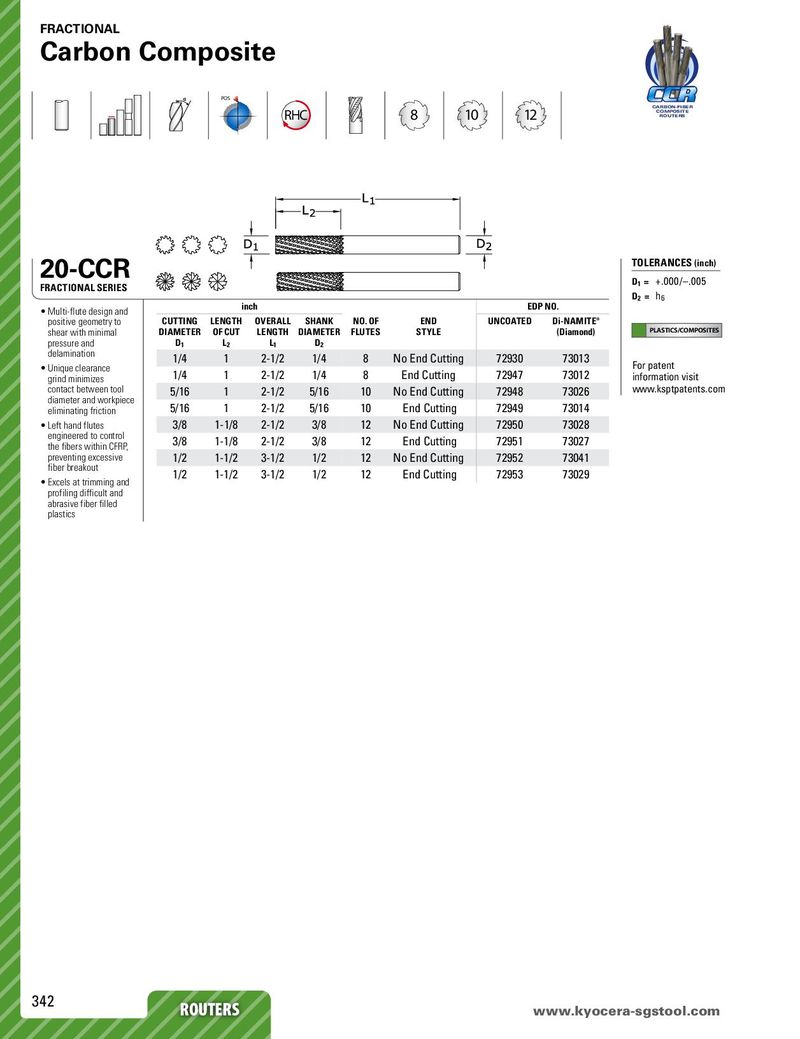

Общий каталог SGS 2018 - страница 342

FRACTIONAL Carbon Composite POS CCR CARBON-FIBER RHC 8 10 12 COMPOSITE ROUTERS 20-CCR TOLERANCES (inch) FRACTIONAL SERIES D1 = +.000/–.005 D2 = h6 • Multi-flute design and inch EDP NO. positive geometry to CUTTING LENGTH OVERALL SHANK NO. OF END UNCOATED Di-NAMITE® shear with minimal DIAMETER OF CUT LENGTH DIAMETER FLUTES STYLE (Diamond) PLASTICS/COMPOSITES pressure and D1 L2 L1 D2 delamination 1/4 1 2-1/2 1/4 8 No End Cutting 72930 73013 • Unique clearance 1/4 1 2-1/2 1/4 8 End Cutting 72947 73012 For patent grind minimizes information visit contact between tool 5/16 1 2-1/2 5/16 10 No End Cutting 72948 73026 www.ksptpatents.com diameter and workpiece 5/16 1 2-1/2 5/16 10 End Cutting 72949 73014 eliminating friction • Left hand flutes 3/8 1-1/8 2-1/2 3/8 12 No End Cutting 72950 73028 engineered to control 3/8 1-1/8 2-1/2 3/8 12 End Cutting 72951 73027 the fibers within CFRP, preventing excessive 1/2 1-1/2 3-1/2 1/2 12 No End Cutting 72952 73041 fiber breakout 1/2 1-1/2 3-1/2 1/2 12 End Cutting 72953 73029 • Excels at trimming and profiling difficult and abrasive fiber filled plastics 342 ROUTERS www.RkOyUocTEeRraS-sgstool.com
