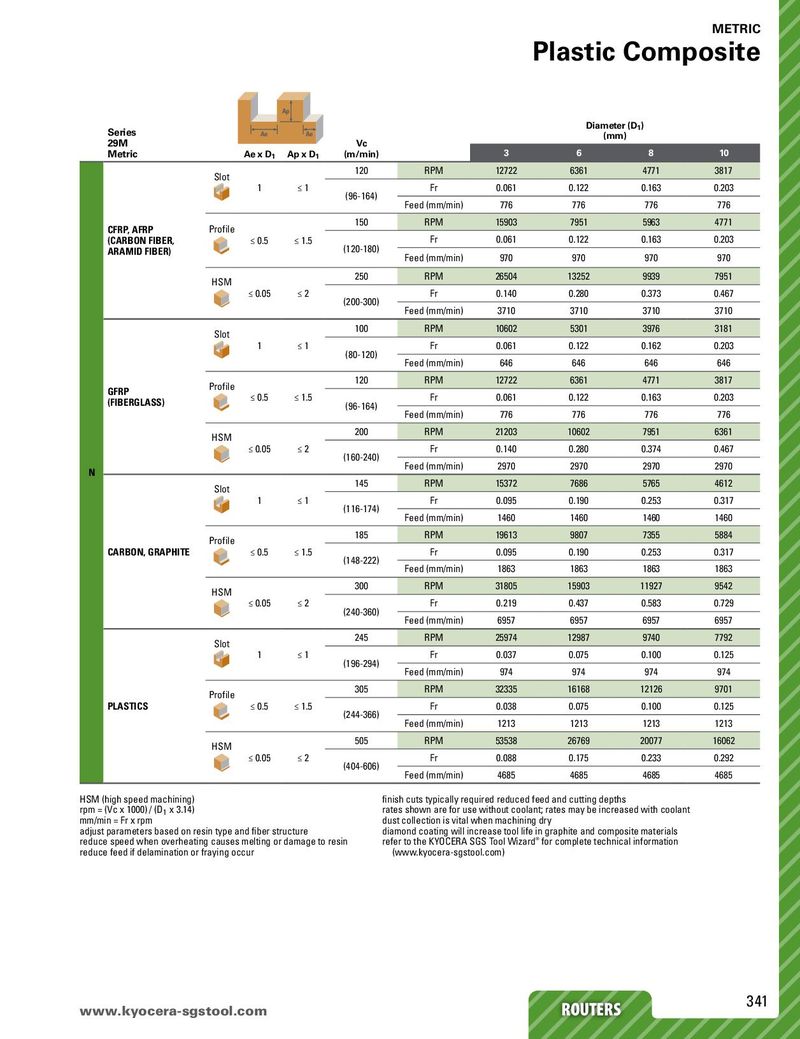

METRIC Plastic Composite Ap Series Diameter (D1) Ae Ae (mm) 29M Vc Metric Ae x D1 Ap x D1 (m/min) 3 6 8 10 Slot 120 RPM 12722 6361 4771 3817 1 ≤1 (96-164) Fr 0.061 0.122 0.163 0.203 Feed (mm/min) 776 776 776 776 CFRP, AFRP Profile 150 RPM 15903 7951 5963 4771 (CARBON FIBER, ≤ 0.5 ≤ 1.5 Fr 0.061 0.122 0.163 0.203 ARAMID FIBER) (120-180) Feed (mm/min) 970 970 970 970 HSM 250 RPM 26504 13252 9939 7951 ≤ 0.05 ≤2 (200-300) Fr 0.140 0.280 0.373 0.467 Feed (mm/min) 3710 3710 3710 3710 Slot 100 RPM 10602 5301 3976 3181 1 ≤1 (80-120) Fr 0.061 0.122 0.162 0.203 Feed (mm/min) 646 646 646 646 Profile 120 RPM 12722 6361 4771 3817 GFRP ≤ 0.5 ≤ 1.5 Fr 0.061 0.122 0.163 0.203 (FIBERGLASS) (96-164) Feed (mm/min) 776 776 776 776 HSM 200 RPM 21203 10602 7951 6361 ≤ 0.05 ≤2 (160-240) Fr 0.140 0.280 0.374 0.467 N Feed (mm/min) 2970 2970 2970 2970 Slot 145 RPM 15372 7686 5765 4612 1 ≤1 (116-174) Fr 0.095 0.190 0.253 0.317 Feed (mm/min) 1460 1460 1460 1460 Profile 185 RPM 19613 9807 7355 5884 CARBON, GRAPHITE ≤ 0.5 ≤ 1.5 (148-222) Fr 0.095 0.190 0.253 0.317 Feed (mm/min) 1863 1863 1863 1863 HSM 300 RPM 31805 15903 11927 9542 ≤ 0.05 ≤2 (240-360) Fr 0.219 0.437 0.583 0.729 Feed (mm/min) 6957 6957 6957 6957 Slot 245 RPM 25974 12987 9740 7792 1 ≤1 (196-294) Fr 0.037 0.075 0.100 0.125 Feed (mm/min) 974 974 974 974 Profile 305 RPM 32335 16168 12126 9701 PLASTICS ≤ 0.5 ≤ 1.5 (244-366) Fr 0.038 0.075 0.100 0.125 Feed (mm/min) 1213 1213 1213 1213 HSM 505 RPM 53538 26769 20077 16062 ≤ 0.05 ≤2 (404-606) Fr 0.088 0.175 0.233 0.292 Feed (mm/min) 4685 4685 4685 4685 HSM (high speed machining) finish cuts typically required reduced feed and cutting depths rpm = (Vc x 1000) / (D1 x 3.14) rates shown are for use without coolant; rates may be increased with coolant mm/min = Fr x rpm dust collection is vital when machining dry adjust parameters based on resin type and fiber structure diamond coating will increase tool life in graphite and composite materials reduce speed when overheating causes melting or damage to resin refer to the KYOCERA SGS Tool Wizard® for complete technical information reduce feed if delamination or fraying occur   (www.kyocera-sgstool.com) www.kyocerRaO-sUgTsEtRoSol.com ROUTERS 341
