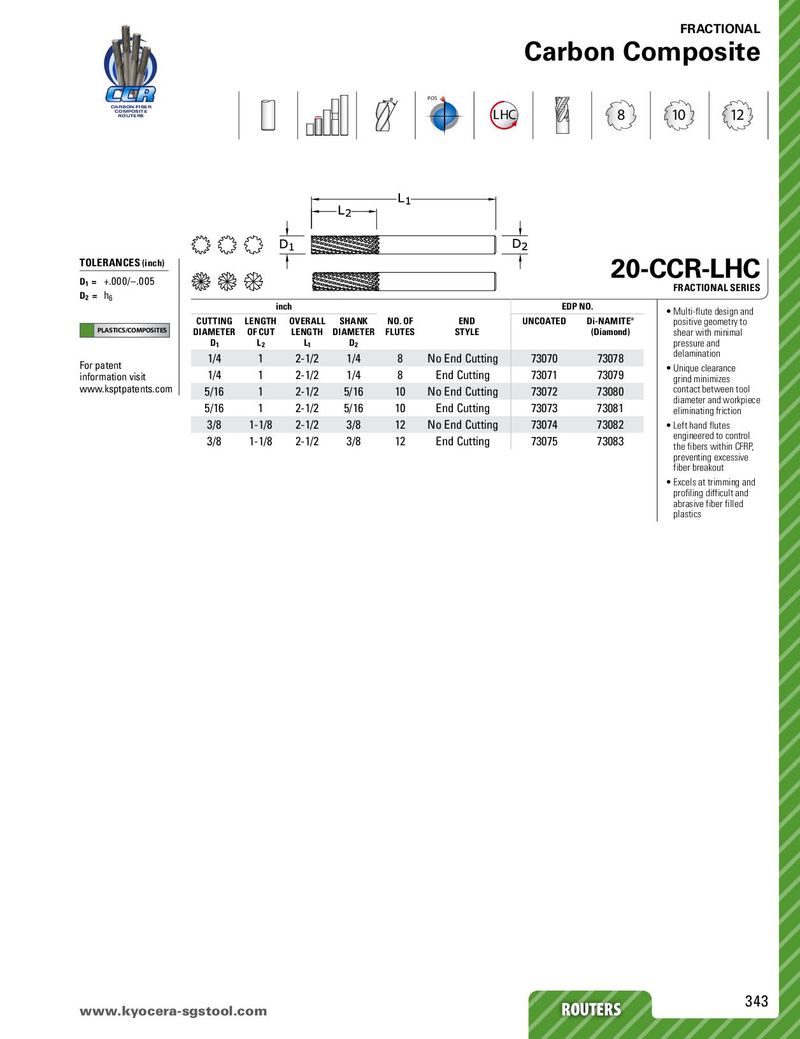

Общий каталог SGS 2018 - страница 343

FRACTIONAL Carbon Composite CCR POS CARBON-FIBER COMPOSITE LHC 8 10 12 ROUTERS TOLERANCES (inch) 20-CCR-LHC D1 = +.000/–.005 FRACTIONAL SERIES D2 = h6 inch EDP NO. • Multi-flute design and CUTTING LENGTH OVERALL SHANK NO. OF END UNCOATED Di-NAMITE® positive geometry to PLASTICS/COMPOSITES DIAMETER OF CUT LENGTH DIAMETER FLUTES STYLE (Diamond) shear with minimal D1 L2 L1 D2 pressure and 1/4 1 2-1/2 1/4 8 No End Cutting 73070 73078 delamination For patent 1/4 1 2-1/2 1/4 8 End Cutting 73071 73079 • Unique clearance information visit grind minimizes www.ksptpatents.com 5/16 1 2-1/2 5/16 10 No End Cutting 73072 73080 contact between tool 5/16 1 2-1/2 5/16 10 End Cutting 73073 73081 diameter and workpiece eliminating friction 3/8 1-1/8 2-1/2 3/8 12 No End Cutting 73074 73082 • Left hand flutes 3/8 1-1/8 2-1/2 3/8 12 End Cutting 73075 73083 engineered to control the fibers within CFRP, preventing excessive fiber breakout • Excels at trimming and profiling difficult and abrasive fiber filled plastics www.kyocerRaO-sUgTsEtRoSol.com ROUTERS 343
