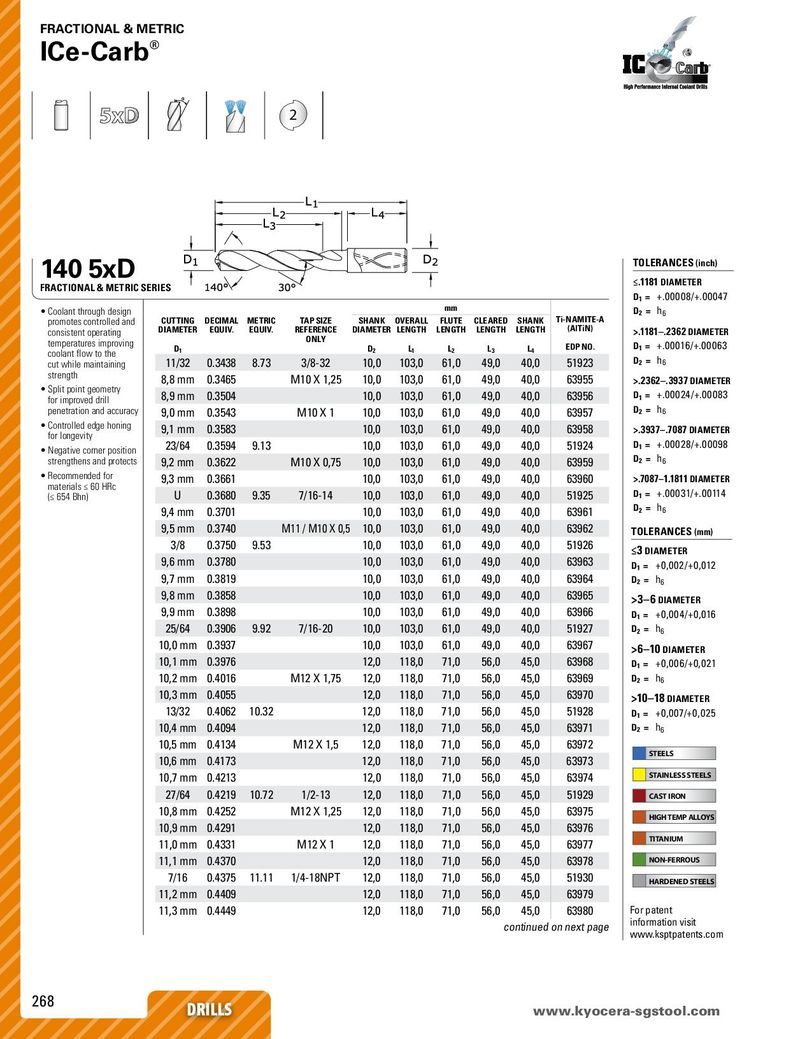

FRACTIONAL & METRIC ICe-Carb® ® 2 140 5xD TOLERANCES (inch) FRACTIONAL & METRIC SERIES ≤.1181 DIAMETER D1 = +.00008/+.00047 • Coolant through design mm D2 = h6 promotes controlled and CUTTING DECIMAL METRIC TAP SIZE SHANK OVERALL FLUTE CLEARED SHANK Ti-NAMITE-A consistent operating DIAMETER EQUIV. EQUIV. REFERENCE DIAMETER LENGTH LENGTH LENGTH LENGTH (AlTiN) >.1181–.2362 DIAMETER temperatures improving ONLY EDP NO. D1 = +.00016/+.00063 coolant flow to the D1 D2 L1 L2 L3 L4 cut while maintaining 11/32 0.3438 8.73 3/8-32 10,0 103,0 61,0 49,0 40,0 51923 D2 = h6 strength 8,8 mm 0.3465 M10 X 1,25 10,0 103,0 61,0 49,0 40,0 63955 >.2362–.3937 DIAMETER • Split point geometry 8,9 mm 0.3504 10,0 103,0 61,0 49,0 40,0 63956 D1 = +.00024/+.00083 for improved drill h6 penetration and accuracy 9,0 mm 0.3543 M10 X 1 10,0 103,0 61,0 49,0 40,0 63957 D2 = • Controlled edge honing 9,1 mm 0.3583 10,0 103,0 61,0 49,0 40,0 63958 >.3937–.7087 DIAMETER for longevity 23/64 0.3594 9.13 10,0 103,0 61,0 49,0 40,0 51924 D1 = +.00028/+.00098 • Negative corner position D2 = h6 strengthens and protects 9,2 mm 0.3622 M10 X 0,75 10,0 103,0 61,0 49,0 40,0 63959 • Recommended for 9,3 mm 0.3661 10,0 103,0 61,0 49,0 40,0 63960 >.7087–1.1811 DIAMETER materials ≤ 60 HRc U 0.3680 9.35 7/16-14 10,0 103,0 61,0 49,0 40,0 51925 D1 = +.00031/+.00114 (≤ 654 Bhn) 9,4 mm 0.3701 10,0 103,0 61,0 49,0 40,0 63961 D2 = h6 9,5 mm 0.3740 M11 / M10 X 0,5 10,0 103,0 61,0 49,0 40,0 63962 TOLERANCES (mm) 3/8 0.3750 9.53 10,0 103,0 61,0 49,0 40,0 51926 ≤3 DIAMETER 9,6 mm 0.3780 10,0 103,0 61,0 49,0 40,0 63963 D1 = + 0, 0 0 2 /+ 0, 012 9,7 mm 0.3819 10,0 103,0 61,0 49,0 40,0 63964 D2 = h6 9,8 mm 0.3858 10,0 103,0 61,0 49,0 40,0 63965 >3–6 DIAMETER 9,9 mm 0.3898 10,0 103,0 61,0 49,0 40,0 63966 D1 = +0,004/+0,016 25/64 0.3906 9.92 7/16-20 10,0 103,0 61,0 49,0 40,0 51927 D2 = h6 10,0 mm 0.3937 10,0 103,0 61,0 49,0 40,0 63967 >6–10 DIAMETER 10,1 mm 0.3976 12,0 118,0 71,0 56,0 45,0 63968 D1 = +0,006/+0,021 10,2 mm 0.4016 M12 X 1,75 12,0 118,0 71,0 56,0 45,0 63969 D2 = h6 10,3 mm 0.4055 12,0 118,0 71,0 56,0 45,0 63970 >10–18 DIAMETER 13/32 0.4062 10.32 12,0 118,0 71,0 56,0 45,0 51928 D1 = +0,007/+0,025 10,4 mm 0.4094 12,0 118,0 71,0 56,0 45,0 63971 D2 = h6 10,5 mm 0.4134 M12 X 1,5 12,0 118,0 71,0 56,0 45,0 63972 STEELS 10,6 mm 0.4173 12,0 118,0 71,0 56,0 45,0 63973 10,7 mm 0.4213 12,0 118,0 71,0 56,0 45,0 63974 STAINLESS STEELS 27/64 0.4219 10.72 1/2-13 12,0 118,0 71,0 56,0 45,0 51929 CAST IRON 10,8 mm 0.4252 M12 X 1,25 12,0 118,0 71,0 56,0 45,0 63975 HIGH TEMP ALLOYS 10,9 mm 0.4291 12,0 118,0 71,0 56,0 45,0 63976 11,0 mm 0.4331 M12 X 1 12,0 118,0 71,0 56,0 45,0 63977 TITANIUM 11,1 mm 0.4370 12,0 118,0 71,0 56,0 45,0 63978 NON-FERROUS 7/16 0.4375 11.11 1/4-18NPT 12,0 118,0 71,0 56,0 45,0 51930 HARDENED STEELS 11,2 mm 0.4409 12,0 118,0 71,0 56,0 45,0 63979 11,3 mm 0.4449 12,0 118,0 71,0 56,0 45,0 63980 For patent continued on next page information visit www.ksptpatents.com 268 DRILLS www.kDyRoIcLeLrSa-sgstool.com
