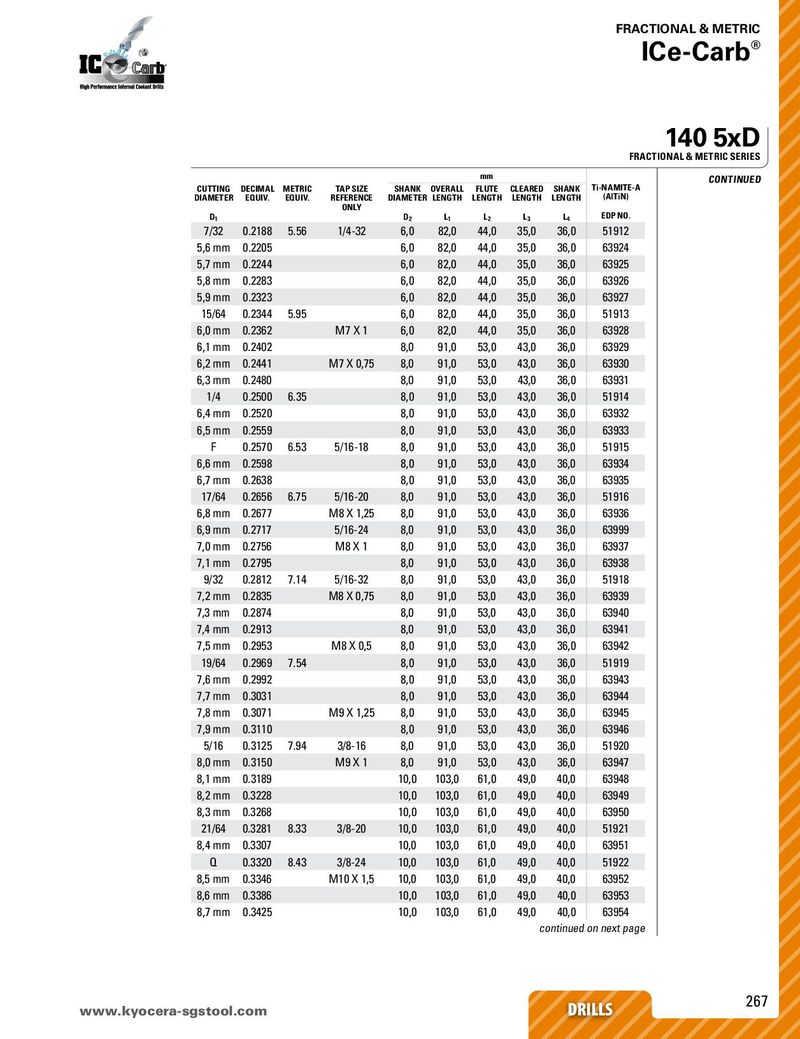

FRACTIONAL & METRIC ® ICe-Carb® 140 5xD FRACTIONAL & METRIC SERIES mm CONTINUED CUTTING DECIMAL METRIC TAP SIZE SHANK OVERALL FLUTE CLEARED SHANK Ti-NAMITE-A DIAMETER EQUIV. EQUIV. REFERENCE DIAMETER LENGTH LENGTH LENGTH LENGTH (AlTiN) ONLY EDP NO. D1 D2 L1 L2 L3 L4 7/32 0.2188 5.56 1/4-32 6,0 82,0 44,0 35,0 36,0 51912 5,6 mm 0.2205 6,0 82,0 44,0 35,0 36,0 63924 5,7 mm 0.2244 6,0 82,0 44,0 35,0 36,0 63925 5,8 mm 0.2283 6,0 82,0 44,0 35,0 36,0 63926 5,9 mm 0.2323 6,0 82,0 44,0 35,0 36,0 63927 15/64 0.2344 5.95 6,0 82,0 44,0 35,0 36,0 51913 6,0 mm 0.2362 M7 X 1 6,0 82,0 44,0 35,0 36,0 63928 6,1 mm 0.2402 8,0 91,0 53,0 43,0 36,0 63929 6,2 mm 0.2441 M7 X 0,75 8,0 91,0 53,0 43,0 36,0 63930 6,3 mm 0.2480 8,0 91,0 53,0 43,0 36,0 63931 1/4 0.2500 6.35 8,0 91,0 53,0 43,0 36,0 51914 6,4 mm 0.2520 8,0 91,0 53,0 43,0 36,0 63932 6,5 mm 0.2559 8,0 91,0 53,0 43,0 36,0 63933 F 0.2570 6.53 5/16-18 8,0 91,0 53,0 43,0 36,0 51915 6,6 mm 0.2598 8,0 91,0 53,0 43,0 36,0 63934 6,7 mm 0.2638 8,0 91,0 53,0 43,0 36,0 63935 17/64 0.2656 6.75 5/16-20 8,0 91,0 53,0 43,0 36,0 51916 6,8 mm 0.2677 M8 X 1,25 8,0 91,0 53,0 43,0 36,0 63936 6,9 mm 0.2717 5/16-24 8,0 91,0 53,0 43,0 36,0 63999 7,0 mm 0.2756 M8 X 1 8,0 91,0 53,0 43,0 36,0 63937 7,1 mm 0.2795 8,0 91,0 53,0 43,0 36,0 63938 9/32 0.2812 7.14 5/16-32 8,0 91,0 53,0 43,0 36,0 51918 7,2 mm 0.2835 M8 X 0,75 8,0 91,0 53,0 43,0 36,0 63939 7,3 mm 0.2874 8,0 91,0 53,0 43,0 36,0 63940 7,4 mm 0.2913 8,0 91,0 53,0 43,0 36,0 63941 7,5 mm 0.2953 M8 X 0,5 8,0 91,0 53,0 43,0 36,0 63942 19/64 0.2969 7.54 8,0 91,0 53,0 43,0 36,0 51919 7,6 mm 0.2992 8,0 91,0 53,0 43,0 36,0 63943 7,7 mm 0.3031 8,0 91,0 53,0 43,0 36,0 63944 7,8 mm 0.3071 M9 X 1,25 8,0 91,0 53,0 43,0 36,0 63945 7,9 mm 0.3110 8,0 91,0 53,0 43,0 36,0 63946 5/16 0.3125 7.94 3/8-16 8,0 91,0 53,0 43,0 36,0 51920 8,0 mm 0.3150 M9 X 1 8,0 91,0 53,0 43,0 36,0 63947 8,1 mm 0.3189 10,0 103,0 61,0 49,0 40,0 63948 8,2 mm 0.3228 10,0 103,0 61,0 49,0 40,0 63949 8,3 mm 0.3268 10,0 103,0 61,0 49,0 40,0 63950 21/64 0.3281 8.33 3/8-20 10,0 103,0 61,0 49,0 40,0 51921 8,4 mm 0.3307 10,0 103,0 61,0 49,0 40,0 63951 Q 0.3320 8.43 3/8-24 10,0 103,0 61,0 49,0 40,0 51922 8,5 mm 0.3346 M10 X 1,5 10,0 103,0 61,0 49,0 40,0 63952 8,6 mm 0.3386 10,0 103,0 61,0 49,0 40,0 63953 8,7 mm 0.3425 10,0 103,0 61,0 49,0 40,0 63954 continued on next page www.kyoceraD-sRgILsLtoSol.com DRILLS 267
