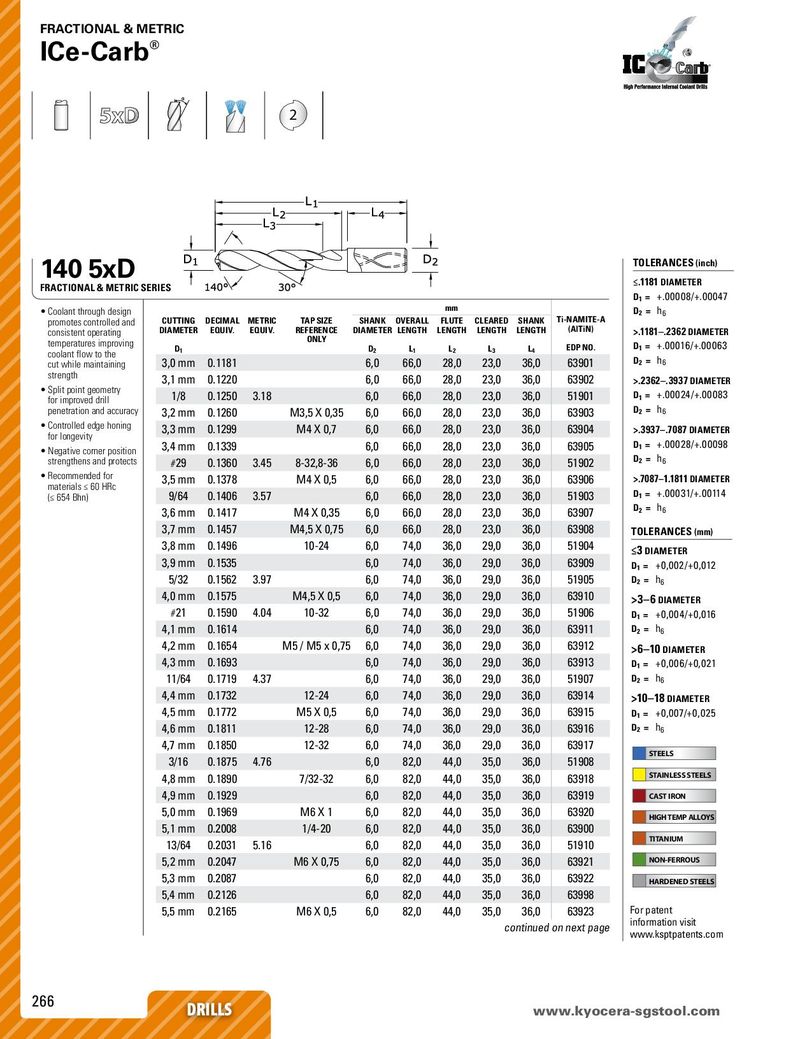

FRACTIONAL & METRIC ICe-Carb® ® 2 140 5xD TOLERANCES (inch) FRACTIONAL & METRIC SERIES ≤.1181 DIAMETER D1 = +.00008/+.00047 • Coolant through design mm D2 = h6 promotes controlled and CUTTING DECIMAL METRIC TAP SIZE SHANK OVERALL FLUTE CLEARED SHANK Ti-NAMITE-A consistent operating DIAMETER EQUIV. EQUIV. REFERENCE DIAMETER LENGTH LENGTH LENGTH LENGTH (AlTiN) >.1181–.2362 DIAMETER temperatures improving ONLY EDP NO. D1 = +.00016/+.00063 coolant flow to the D1 D2 L1 L2 L3 L4 cut while maintaining 3,0 mm 0.1181 6,0 66,0 28,0 23,0 36,0 63901 D2 = h6 strength 3,1 mm 0.1220 6,0 66,0 28,0 23,0 36,0 63902 >.2362–.3937 DIAMETER • Split point geometry 1/8 0.1250 3.18 6,0 66,0 28,0 23,0 36,0 51901 D1 = +.00024/+.00083 for improved drill h6 penetration and accuracy 3,2 mm 0.1260 M3,5 X 0,35 6,0 66,0 28,0 23,0 36,0 63903 D2 = • Controlled edge honing 3,3 mm 0.1299 M4 X 0,7 6,0 66,0 28,0 23,0 36,0 63904 >.3937–.7087 DIAMETER for longevity D1 = +.00028/+.00098 • Negative corner position 3,4 mm 0.1339 6,0 66,0 28,0 23,0 36,0 63905 strengthens and protects #29 0.1360 3.45 8-32,8-36 6,0 66,0 28,0 23,0 36,0 51902 D2 = h6 • Recommended for 3,5 mm 0.1378 M4 X 0,5 6,0 66,0 28,0 23,0 36,0 63906 >.7087–1.1811 DIAMETER materials ≤ 60 HRc 9/64 0.1406 3.57 6,0 66,0 28,0 23,0 36,0 51903 D1 = +.00031/+.00114 (≤ 654 Bhn) 3,6 mm 0.1417 M4 X 0,35 6,0 66,0 28,0 23,0 36,0 63907 D2 = h6 3,7 mm 0.1457 M4,5 X 0,75 6,0 66,0 28,0 23,0 36,0 63908 TOLERANCES (mm) 3,8 mm 0.1496 10-24 6,0 74,0 36,0 29,0 36,0 51904 ≤3 DIAMETER 3,9 mm 0.1535 6,0 74,0 36,0 29,0 36,0 63909 D1 = + 0, 0 0 2 /+ 0, 012 5/32 0.1562 3.97 6,0 74,0 36,0 29,0 36,0 51905 D2 = h6 4,0 mm 0.1575 M4,5 X 0,5 6,0 74,0 36,0 29,0 36,0 63910 >3–6 DIAMETER #21 0.1590 4.04 10-32 6,0 74,0 36,0 29,0 36,0 51906 D1 = +0,004/+0,016 4,1 mm 0.1614 6,0 74,0 36,0 29,0 36,0 63911 D2 = h6 4,2 mm 0.1654 M5 / M5 x 0,75 6,0 74,0 36,0 29,0 36,0 63912 >6–10 DIAMETER 4,3 mm 0.1693 6,0 74,0 36,0 29,0 36,0 63913 D1 = +0,006/+0,021 11/64 0.1719 4.37 6,0 74,0 36,0 29,0 36,0 51907 D2 = h6 4,4 mm 0.1732 12-24 6,0 74,0 36,0 29,0 36,0 63914 >10–18 DIAMETER 4,5 mm 0.1772 M5 X 0,5 6,0 74,0 36,0 29,0 36,0 63915 D1 = +0,007/+0,025 4,6 mm 0.1811 12-28 6,0 74,0 36,0 29,0 36,0 63916 D2 = h6 4,7 mm 0.1850 12-32 6,0 74,0 36,0 29,0 36,0 63917 STEELS 3/16 0.1875 4.76 6,0 82,0 44,0 35,0 36,0 51908 4,8 mm 0.1890 7/32-32 6,0 82,0 44,0 35,0 36,0 63918 STAINLESS STEELS 4,9 mm 0.1929 6,0 82,0 44,0 35,0 36,0 63919 CAST IRON 5,0 mm 0.1969 M6 X 1 6,0 82,0 44,0 35,0 36,0 63920 HIGH TEMP ALLOYS 5,1 mm 0.2008 1/4-20 6,0 82,0 44,0 35,0 36,0 63900 13/64 0.2031 5.16 6,0 82,0 44,0 35,0 36,0 51910 TITANIUM 5,2 mm 0.2047 M6 X 0,75 6,0 82,0 44,0 35,0 36,0 63921 NON-FERROUS 5,3 mm 0.2087 6,0 82,0 44,0 35,0 36,0 63922 HARDENED STEELS 5,4 mm 0.2126 6,0 82,0 44,0 35,0 36,0 63998 5,5 mm 0.2165 M6 X 0,5 6,0 82,0 44,0 35,0 36,0 63923 For patent continued on next page information visit www.ksptpatents.com 266 DRILLS www.kDyRoIcLeLrSa-sgstool.com
