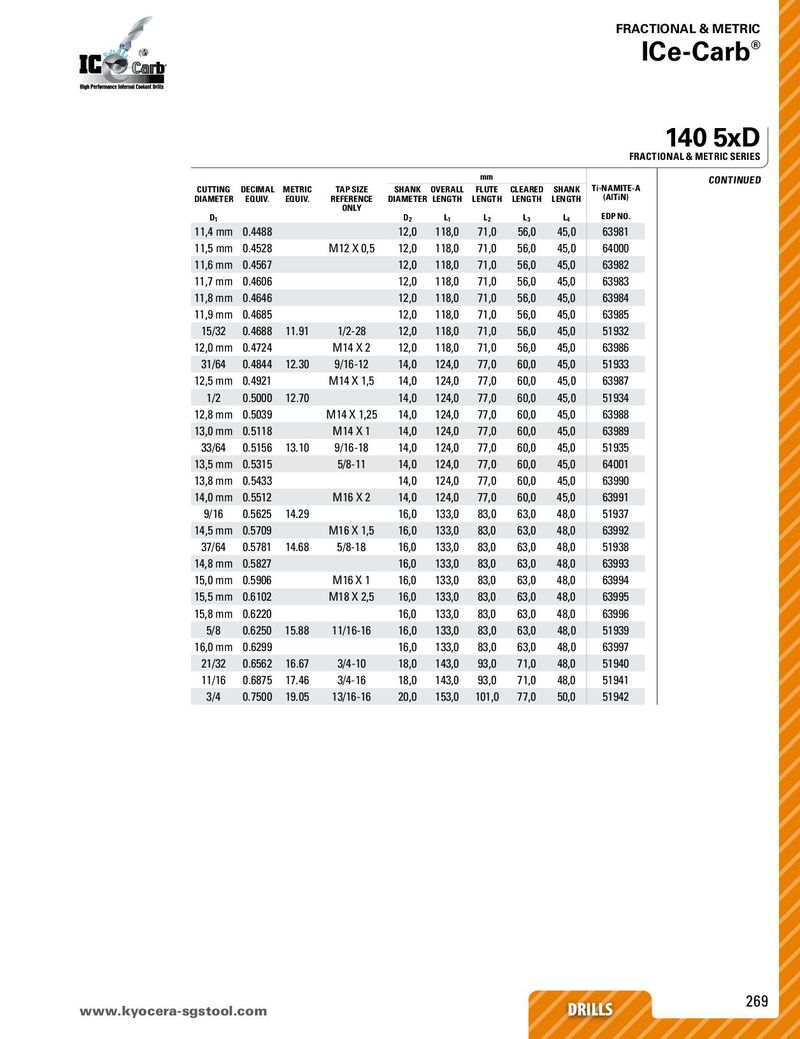

FRACTIONAL & METRIC ® ICe-Carb® 140 5xD FRACTIONAL & METRIC SERIES mm CONTINUED CUTTING DECIMAL METRIC TAP SIZE SHANK OVERALL FLUTE CLEARED SHANK Ti-NAMITE-A DIAMETER EQUIV. EQUIV. REFERENCE DIAMETER LENGTH LENGTH LENGTH LENGTH (AlTiN) ONLY EDP NO. D1 D2 L1 L2 L3 L4 11,4 mm 0.4488 12,0 118,0 71,0 56,0 45,0 63981 11,5 mm 0.4528 M12 X 0,5 12,0 118,0 71,0 56,0 45,0 64000 11,6 mm 0.4567 12,0 118,0 71,0 56,0 45,0 63982 11,7 mm 0.4606 12,0 118,0 71,0 56,0 45,0 63983 11,8 mm 0.4646 12,0 118,0 71,0 56,0 45,0 63984 11,9 mm 0.4685 12,0 118,0 71,0 56,0 45,0 63985 15/32 0.4688 11.91 1/2-28 12,0 118,0 71,0 56,0 45,0 51932 12,0 mm 0.4724 M14 X 2 12,0 118,0 71,0 56,0 45,0 63986 31/64 0.4844 12.30 9/16-12 14,0 124,0 77,0 60,0 45,0 51933 12,5 mm 0.4921 M14 X 1,5 14,0 124,0 77,0 60,0 45,0 63987 1/2 0.5000 12.70 14,0 124,0 77,0 60,0 45,0 51934 12,8 mm 0.5039 M14 X 1,25 14,0 124,0 77,0 60,0 45,0 63988 13,0 mm 0.5118 M14 X 1 14,0 124,0 77,0 60,0 45,0 63989 33/64 0.5156 13.10 9/16-18 14,0 124,0 77,0 60,0 45,0 51935 13,5 mm 0.5315 5/8-11 14,0 124,0 77,0 60,0 45,0 64001 13,8 mm 0.5433 14,0 124,0 77,0 60,0 45,0 63990 14,0 mm 0.5512 M16 X 2 14,0 124,0 77,0 60,0 45,0 63991 9/16 0.5625 14.29 16,0 133,0 83,0 63,0 48,0 51937 14,5 mm 0.5709 M16 X 1,5 16,0 133,0 83,0 63,0 48,0 63992 37/64 0.5781 14.68 5/8-18 16,0 133,0 83,0 63,0 48,0 51938 14,8 mm 0.5827 16,0 133,0 83,0 63,0 48,0 63993 15,0 mm 0.5906 M16 X 1 16,0 133,0 83,0 63,0 48,0 63994 15,5 mm 0.6102 M18 X 2,5 16,0 133,0 83,0 63,0 48,0 63995 15,8 mm 0.6220 16,0 133,0 83,0 63,0 48,0 63996 5/8 0.6250 15.88 11/16-16 16,0 133,0 83,0 63,0 48,0 51939 16,0 mm 0.6299 16,0 133,0 83,0 63,0 48,0 63997 21/32 0.6562 16.67 3/4-10 18,0 143,0 93,0 71,0 48,0 51940 11/16 0.6875 17.46 3/4-16 18,0 143,0 93,0 71,0 48,0 51941 3/4 0.7500 19.05 13/16-16 20,0 153,0 101,0 77,0 50,0 51942 www.kyoceraD-sRgILsLtoSol.com DRILLS 269
