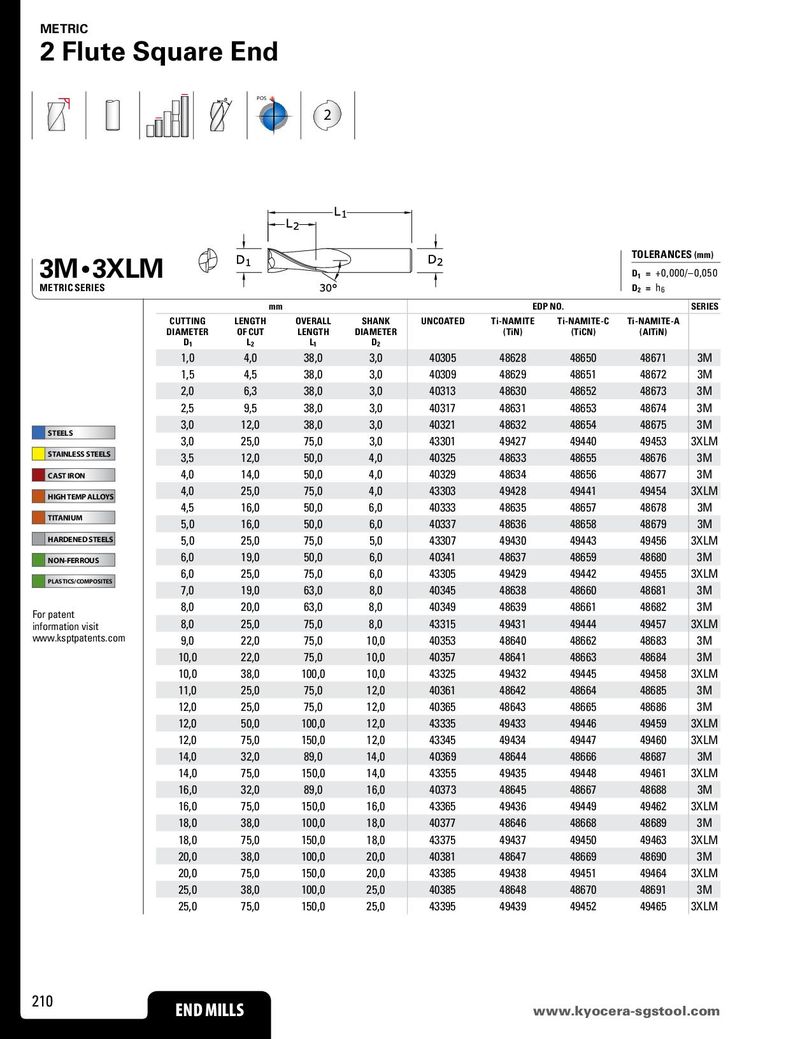

Общий каталог SGS 2018 - страница 210

Предыдущая страница Следующая страница

Навигация

POS

2

TOLERANCES(mm)
D1 = +0,000 D2 =h6/–0,050
mmEDPNO.SERIES
CUTTING DIAMETER D1LENGTH OF CUT L2OVERALL LENGTH L1SHANK DIAMETER D2UNCOATEDTi-NAMITE (TiN)Ti-NAMITE-C (TiCN)Ti-NAMITE-A (AlTiN)
1,04,038,03,0403054862848650486713M
1,54,538,03,0403094862948651486723M
2,06,338,03,0403134863048652486733M
2,59,538,03,0403174863148653486743M
3,012,038,03,0403214863248654486753M
3,025,075,03,0433014942749440494533XLM
3,512,050,04,0403254863348655486763M
4,014,050,04,0403294863448656486773M
4,025,075,04,0433034942849441494543XLM
4,516,050,06,0403334863548657486783M
5,016,050,06,0403374863648658486793M
5,025,075,05,0433074943049443494563XLM
6,019,050,06,0403414863748659486803M
6,025,075,06,0433054942949442494553XLM
7,019,063,08,0403454863848660486813M
8,020,063,08,0403494863948661486823M
8,025,075,08,0433154943149444494573XLM
9,022,075,010,0403534864048662486833M
10,022,075,010,0403574864148663486843M
10,038,0100,010,0433254943249445494583XLM
11,025,075,012,0403614864248664486853M
12,025,075,012,0403654864348665486863M
12,050,0100,012,0433354943349446494593XLM
12,075,0150,012,0433454943449447494603XLM
14,032,089,014,0403694864448666486873M
14,075,0150,014,0433554943549448494613XLM
16,032,089,016,0403734864548667486883M
16,075,0150,016,0433654943649449494623XLM
18,038,0100,018,0403774864648668486893M
18,075,0150,018,0433754943749450494633XLM
20,038,0100,020,0403814864748669486903M
20,075,0150,020,0433854943849451494643XLM
25,038,0100,025,0403854864848670486913M
25,075,0150,025,0433954943949452494653XLM
STEELS
STAINLESS STEELS
CAST IRON
HIGH TEMP ALLOYS
TITANIUM
HARDENED STEELS
NON-FERROUS PLASTICS/COMPOSITES

For patent
