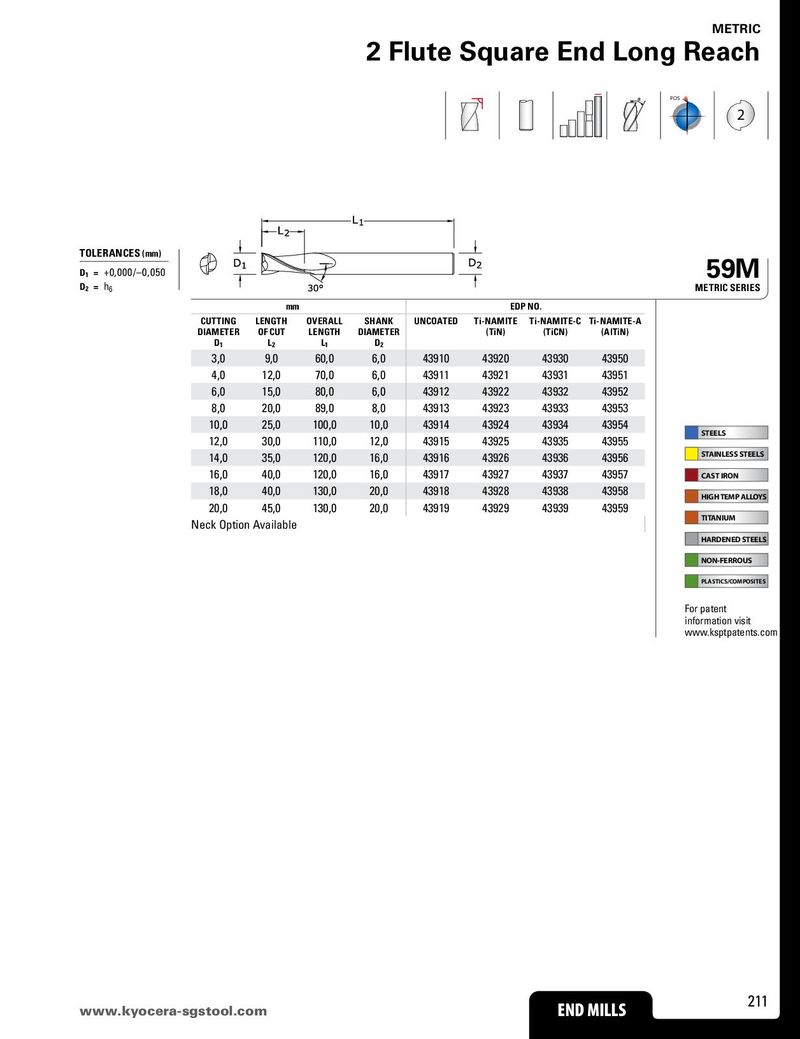

2 Flute Square End Long Reach
POS
2
| TOLERANCES(mm) D1 = +0,000/–0,050 | 59M | ||||||||
| D2 =h6 | METRIC SERIES | ||||||||
| mm | ED | P NO. | |||||||
| CUTTING DIAMETER D1 | LENGTH OF CUT L2 | OVERALL LENGTH L1 | SHANK DIAMETER D2 | UNCOATED | Ti-NAMITE (TiN) | Ti-NAMITE-C (TiCN) | Ti-NAMITE-A (AlTiN) | ||
| 3,0 | 9,0 | 60,0 | 6,0 | 43910 | 43920 | 43930 | 43950 | ||
| 4,0 | 12,0 | 70,0 | 6,0 | 43911 | 43921 | 43931 | 43951 | ||
| 6,0 | 15,0 | 80,0 | 6,0 | 43912 | 43922 | 43932 | 43952 | ||
| 8,0 | 20,0 | 89,0 | 8,0 | 43913 | 43923 | 43933 | 43953 | ||
| 10,0 | 25,0 | 100,0 | 10,0 | 43914 | 43924 | 43934 | 43954 | STEELS | |
| 12,0 | 30,0 | 110,0 | 12,0 | 43915 | 43925 | 43935 | 43955 | ||
| 14,0 | 35,0 | 120,0 | 16,0 | 43916 | 43926 | 43936 | 43956 | STAINLESS STEELS | |
| 16,0 | 40,0 | 120,0 | 16,0 | 43917 | 43927 | 43937 | 43957 | CAST IRON | |
| 18,0 | 40,0 | 130,0 | 20,0 | 43918 | 43928 | 43938 | 43958 | HIGH TEMP ALLOYS | |
| 20,0 Neck Option | 45,0 Available | 130,0 | 20,0 | 43919 | 43929 | 43939 | 43959 | TITANIUM | |
| HARDENED STEELS | |||||||||
| NON-FERROUS | |||||||||
| PLASTICS/COMPOSITES |
For patent information visit www.ksptpatents.com
