POS
2

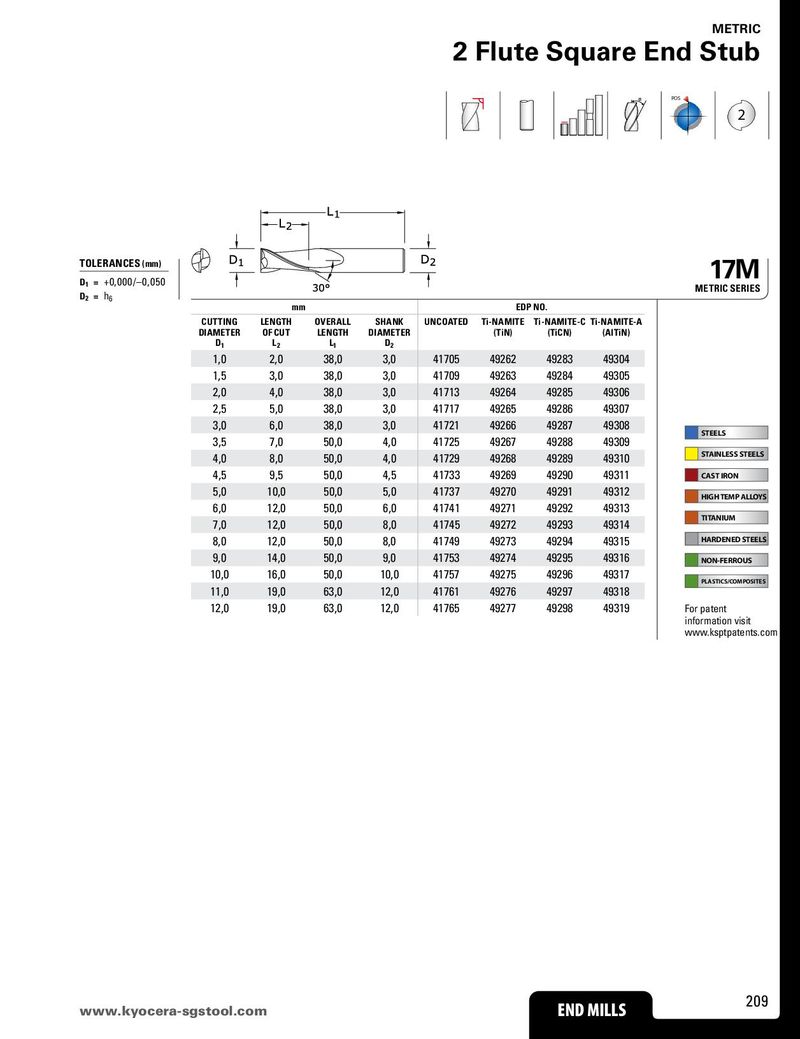

| TOLERANCES(mm) | 17M | ||||||||
| D1 = +0,000/–0,050 D2 =h6 | METRIC SERIES | ||||||||
| mm | EDP | NO. | |||||||
| CUTTING DIAMETER D1 | LENGTH OF CUT L2 | OVERALL LENGTH L1 | SHANK DIAMETER D2 | UNCOATED | Ti-NAMITE (TiN) | Ti-NAMITE-C (TiCN) | Ti-NAMITE-A (AlTiN) | ||
| 1,0 | 2,0 | 38,0 | 3,0 | 41705 | 49262 | 49283 | 49304 | ||
| 1,5 | 3,0 | 38,0 | 3,0 | 41709 | 49263 | 49284 | 49305 | ||
| 2,0 | 4,0 | 38,0 | 3,0 | 41713 | 49264 | 49285 | 49306 | ||
| 2,5 | 5,0 | 38,0 | 3,0 | 41717 | 49265 | 49286 | 49307 | ||
| 3,0 | 6,0 | 38,0 | 3,0 | 41721 | 49266 | 49287 | 49308 | STEELS | |
| 3,5 | 7,0 | 50,0 | 4,0 | 41725 | 49267 | 49288 | 49309 | ||
| 4,0 | 8,0 | 50,0 | 4,0 | 41729 | 49268 | 49289 | 49310 | STAINLESS STEELS | |
| 4,5 | 9,5 | 50,0 | 4,5 | 41733 | 49269 | 49290 | 49311 | CAST IRON | |
| 5,0 | 10,0 | 50,0 | 5,0 | 41737 | 49270 | 49291 | 49312 | HIGH TEMP ALLOYS | |
| 6,0 | 12,0 | 50,0 | 6,0 | 41741 | 49271 | 49292 | 49313 | ||
| 7,0 | 12,0 | 50,0 | 8,0 | 41745 | 49272 | 49293 | 49314 | TITANIUM | |
| 8,0 | 12,0 | 50,0 | 8,0 | 41749 | 49273 | 49294 | 49315 | HARDENED STEELS | |
| 9,0 | 14,0 | 50,0 | 9,0 | 41753 | 49274 | 49295 | 49316 | NON-FERROUS | |
| 10,0 | 16,0 | 50,0 | 10,0 | 41757 | 49275 | 49296 | 49317 | PLASTICS/COMPOSITES | |
| 11,0 | 19,0 | 63,0 | 12,0 | 41761 | 49276 | 49297 | 49318 | ||
| 12,0 | 19,0 | 63,0 | 12,0 | 41765 | 49277 | 49298 | 49319 | For patent |
information visit www.ksptpatents.com
