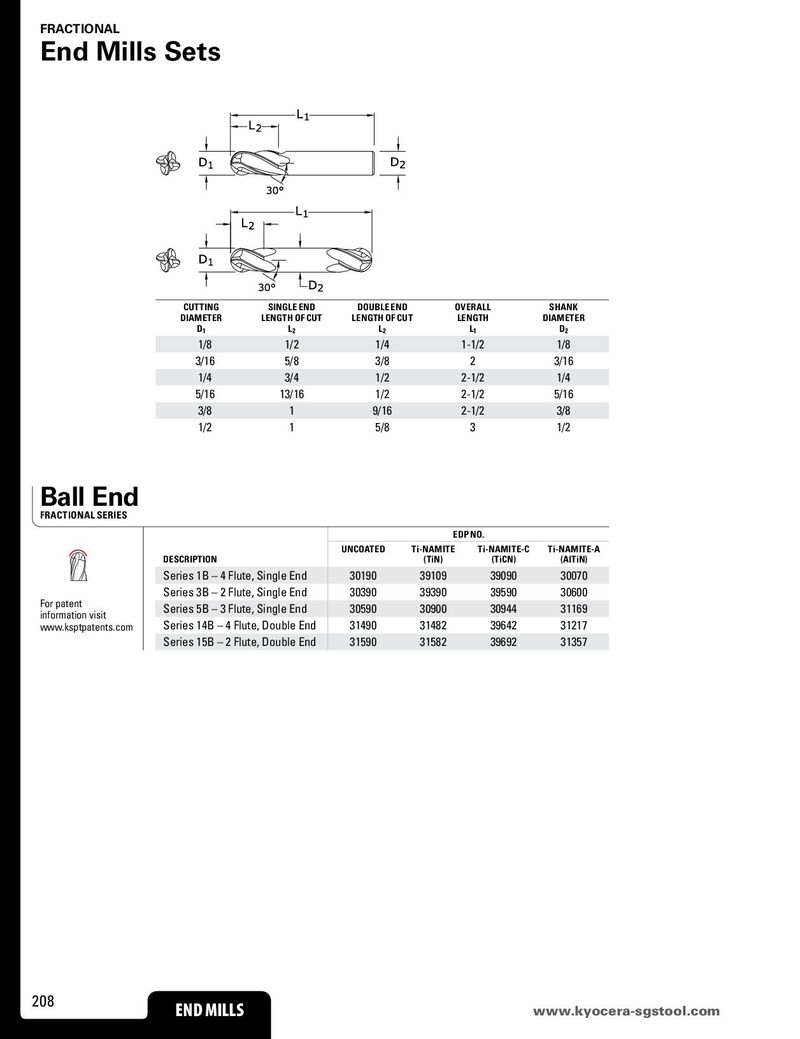

End Mills Sets
| CUTTING DIAMETER D1 | SINGLE END LENGTH OF CUT L2 | DOUBLE END LENGTH OF CUT L2 | OVERALL LENGTH L1 | SHANK DIAMETER D2 |
| 1/8 | 1/2 | 1/4 | 1-1/2 | 1/8 |
| 3/16 | 5/8 | 3/8 | 2 | 3/16 |
| 1/4 | 3/4 | 1/2 | 2-1/2 | 1/4 |
| 5/16 | 13/16 | 1/2 | 2-1/2 | 5/16 |
| 3/8 | 1 | 9/16 | 2-1/2 | 3/8 |
| 1/2 | 1 | 5/8 | 3 | 1/2 |
Ball End
FRACTIONAL SERIES
| EDP | NO. | |||
| DESCRIPTION | UNCOATED | Ti-NAMITE (TiN) | Ti-NAMITE-C (TiCN) | Ti-NAMITE-A (AlTiN) |
| Series 1B – 4 Flute, Single End | 30190 | 39109 | 39090 | 30070 |
| Series 3B – 2 Flute, Single End | 30390 | 39390 | 39590 | 30600 |
| Series 5B – 3 Flute, Single End | 30590 | 30900 | 30944 | 31169 |
| Series 14B – 4 Flute, Double End | 31490 | 31482 | 39642 | 31217 |
| Series 15B – 2 Flute, Double End | 31590 | 31582 | 39692 | 31357 |
information visit
