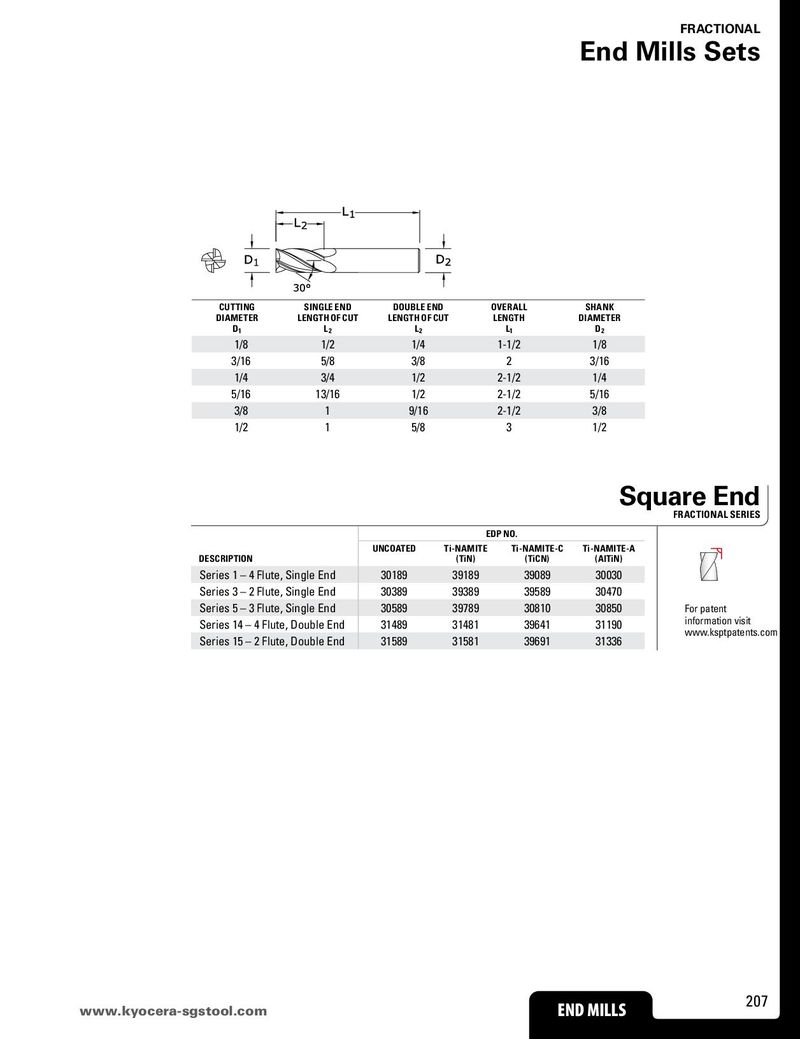

End Mills Sets
| CUTTING DIAMETER D1 | SINGLE END LENGTH OF CUT L2 | DOUBLE END LENGTH OF CUT L2 | OVERALL LENGTH L1 | SHANK DIAMETER D2 |
| 1/8 | 1/2 | 1/4 | 1-1/2 | 1/8 |
| 3/16 | 5/8 | 3/8 | 2 | 3/16 |
| 1/4 | 3/4 | 1/2 | 2-1/2 | 1/4 |
| 5/16 | 13/16 | 1/2 | 2-1/2 | 5/16 |
| 3/8 | 1 | 9/16 | 2-1/2 | 3/8 |
| 1/2 | 1 | 5/8 | 3 | 1/2 |
Square End
FRACTIONAL SERIES
| DESCRIPTION | UNCOATED | EDP Ti-NAMITE (TiN) | NO. Ti-NAMITE-C (TiCN) | Ti-NAMITE-A (AlTiN) |
| Series 1 – 4 Flute, Single End | 30189 | 39189 | 39089 | 30030 |
| Series 3 – 2 Flute, Single End | 30389 | 39389 | 39589 | 30470 |
| Series 5 – 3 Flute, Single End | 30589 | 39789 | 30810 | 30850 |
| Series 14 – 4 Flute, Double End | 31489 | 31481 | 39641 | 31190 |
| Series 15 – 2 Flute, Double End | 31589 | 31581 | 39691 | 31336 |
www.ksptpatents.com
