3 4 6

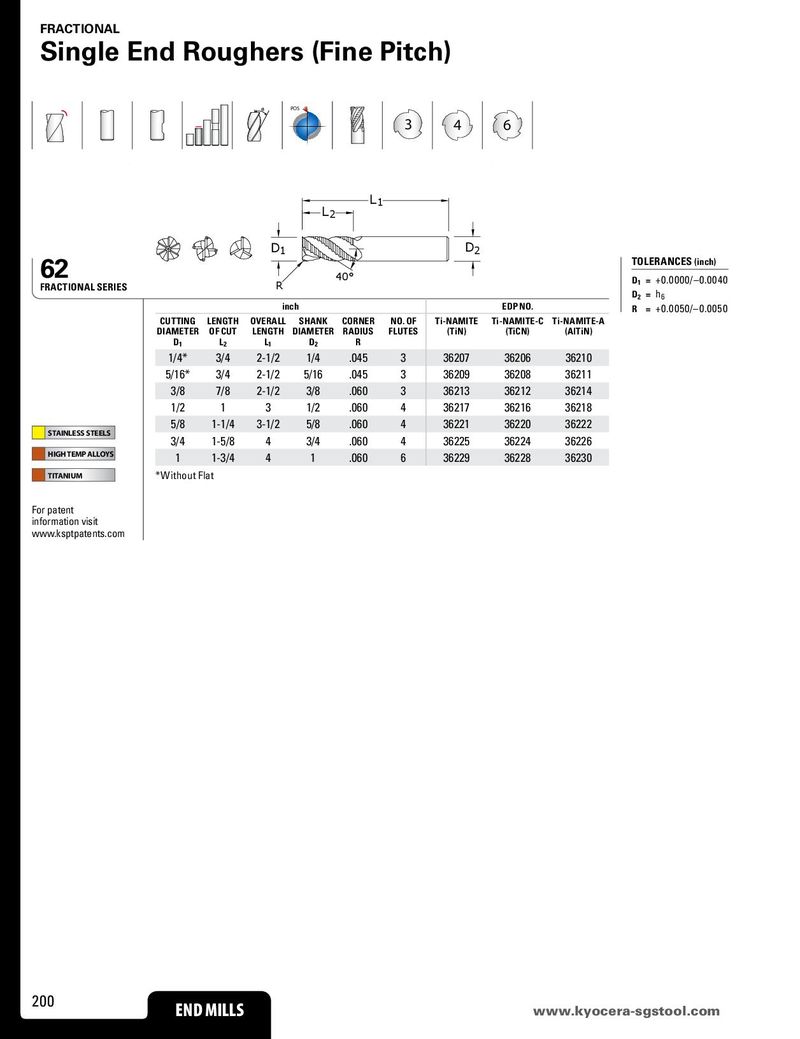

| 62 | 1 D | L2 | L1 | 2 D | TOLERANCES(inch) | |||||
| FRACTIONAL SERIES | R | 40° | D1 = +0.0000/–0.0040 D2 =h6 | |||||||
| in | ch | EDP NO. | R = +0.0050/–0.0050 | |||||||
| CUTTING DIAMETE D1 | R LENGTH OF CUT L2 | OVERALL LENGTH L1 | SHANK DIAMETER D2 | CORNER RADIUS R | NO. OF FLUTES | Ti-NAMITE (TiN) | Ti-NAMITE-C (TiCN) | Ti-NAMITE-A (AlTiN) | ||
| 1/4 | 3/4 | 2-1/2 | 1/4 | .045 | 3 | 36207 | 36206 | 36210 | ||
| 5/16 | 3/4 | 2-1/2 | 5/16 | .045 | 3 | 36209 | 36208 | 36211 | ||
| 3/8 | 7/8 | 2-1/2 | 3/8 | .060 | 3 | 36213 | 36212 | 36214 | ||
| 1/2 | 1 | 3 | 1/2 | .060 | 4 | 36217 | 36216 | 36218 | ||
| 5/8 | 1-1/4 | 3-1/2 | 5/8 | .060 | 4 | 36221 | 36220 | 36222 | ||
| STAINLESS STEELS | 3/4 | 1-5/8 | 4 | 3/4 | .060 | 4 | 36225 | 36224 | 36226 | |
| HIGH TEMP ALLOYS | 1 | 1-3/4 | 4 | 1 | .060 | 6 | 36229 | 36228 | 36230 | |
| TITANIUM | Withou | t Flat |
For patent information visit www.ksptpatents.com
