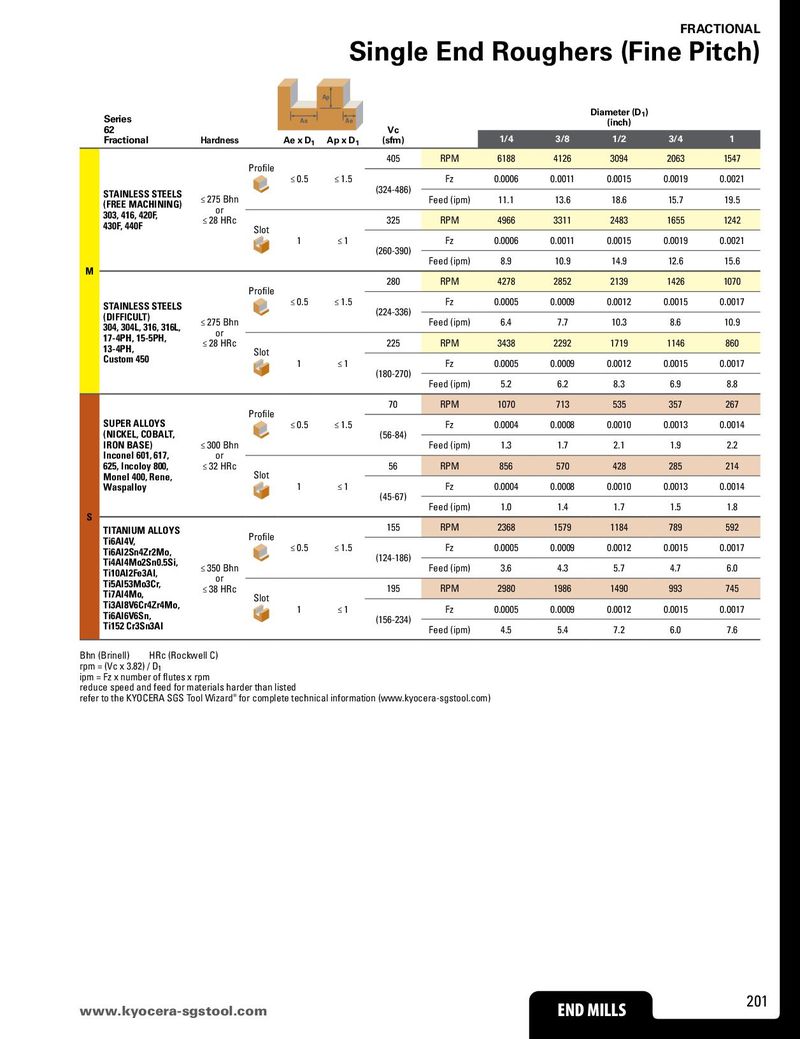

Общий каталог SGS 2018 - страница 201
Навигация
Каталог SGS шестизубые фрезы T-carb
Каталог SGS микро инструмент 2021
Каталог SGS фрезы для алюминия S-carb
Каталог SGS высокопроизводительные черновые фрезы
Каталог SGS инструмент для обработки алюминия
Общий каталог SGS 2015 на русском
| Series 62 | Ae | Ap Ae | Vc | Diameter (D1 (inch) | ) | ||||||
| Fractional | Hardness | Ae x D1 | Ap x D1 | (sfm) | 1/4 | 3/8 | 1/2 | 3/4 | 1 | ||
| Profile | 405 | RPM | 6188 | 4126 | 3094 | 2063 | 1547 | ||||
| ≤ 0.5 | ≤ 1.5 | 324486 | Fz | 0.0006 | 0.0011 | 0.0015 | 0.0019 | 0.0021 | |||
| STAINLESS STEELS (FREE MACHINING) | ≤ 275 Bhn or | (-) | Feed (ipm) | 11.1 | 13.6 | 18.6 | 15.7 | 19.5 | |||
| 303, 416, 420F, 430F, 440F | ≤ 28 HRc | Slot | 325 | RPM | 4966 | 3311 | 2483 | 1655 | 1242 | ||
| 1 | ≤ 1 | (260-390) | Fz | 0.0006 | 0.0011 | 0.0015 | 0.0019 | 0.0021 | |||
| M | Feed (ipm) | 8.9 | 10.9 | 14.9 | 12.6 | 15.6 | |||||
| Profile | 280 | RPM | 4278 | 2852 | 2139 | 1426 | 1070 | ||||
| STAINLESS STEELS | ≤ 0.5 | ≤ 1.5 | (224-336) | Fz | 0.0005 | 0.0009 | 0.0012 | 0.0015 | 0.0017 | ||
| (DIFFICULT) 304, 304L, 316, 316L, | ≤ 275 Bhn or | Feed (ipm) | 6.4 | 7.7 | 10.3 | 8.6 | 10.9 | ||||
| 17-4PH, 15-5PH, 13-4PH, | ≤ 28 HRc | Slot | 225 | RPM | 3438 | 2292 | 1719 | 1146 | 860 | ||
| Custom 450 | 1 | ≤ 1 | (180-270) | Fz | 0.0005 | 0.0009 | 0.0012 | 0.0015 | 0.0017 | ||
| Feed (ipm) | 5.2 | 6.2 | 8.3 | 6.9 | 8.8 | ||||||
| Profile | 70 | RPM | 1070 | 713 | 535 | 357 | 267 | ||||
| SUPER ALLOYS (NICKEL, COBALT, | ≤ 0.5 | ≤ 1.5 | (56-84) | Fz | 0.0004 | 0.0008 | 0.0010 | 0.0013 | 0.0014 | ||
| IRON BASE) Il 601 617 | ≤ 300 Bhn | Feed (ipm) | 1.3 | 1.7 | 2.1 | 1.9 | 2.2 | ||||
| ncone , , 625, Incoloy 800, Monel 400 Rene | or ≤ 32 HRc | Slot | 56 | RPM | 856 | 570 | 428 | 285 | 214 | ||
| , , Waspalloy | 1 | ≤ 1 | (45-67) | Fz | 0.0004 | 0.0008 | 0.0010 | 0.0013 | 0.0014 | ||
| S | Feed (ipm) | 1.0 | 1.4 | 1.7 | 1.5 | 1.8 | |||||
| TITANIUM ALLOYS | Profile | 155 | RPM | 2368 | 1579 | 1184 | 789 | 592 | |||
| Ti6Al4V, Ti6Al2Sn4Zr2Mo, | ≤ 0.5 | ≤ 1.5 | (124-186) | Fz | 0.0005 | 0.0009 | 0.0012 | 0.0015 | 0.0017 | ||
| Ti4Al4Mo2Sn0.5Si, Ti10Al2Fe3Al, | ≤ 350 Bhn | Feed (ipm) | 3.6 | 4.3 | 5.7 | 4.7 | 6.0 | ||||
| Ti5Al53Mo3Cr, Ti7Al4Mo, | or ≤ 38 HRc | Slot | 195 | RPM | 2980 | 1986 | 1490 | 993 | 745 | ||
| Ti3Al8V6Cr4Zr4Mo, Ti6Al6V6Sn, | 1 | ≤ 1 | (156-234) | Fz | 0.0005 | 0.0009 | 0.0012 | 0.0015 | 0.0017 | ||
| Ti152 Cr3Sn3Al | Feed (ipm) | 4.5 | 5.4 | 7.2 | 6.0 | 7.6 |
Bhn (Brinell) HRc (Rockwell C) rpm = (Vc x 3.82) / D1 ipm = Fz x number of flutes x rpm reduce speed and feed for materials harder than listed refer to the KYOCERA SGS Tool Wizard® for complete technical information (www.kyocera-sgstool.com)
