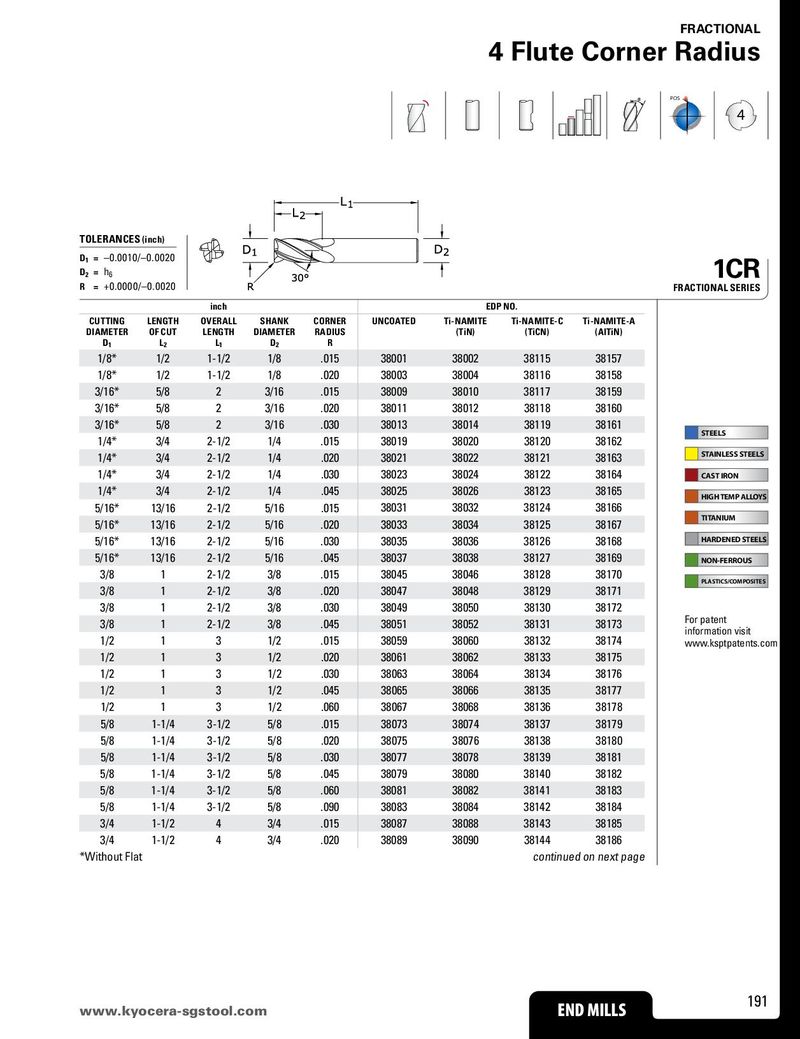

| TOLERANCE | S(inch) | ||||||||
| D1 = –0.0010 D2 =h6 R =+0.0000 | /–0.0020 /–0.0020 | 1CR FRACTIONAL SERIES | |||||||
| inch | ED | P NO. | |||||||
| CUTTING DIAMETER D1 | LENGTH OF CUT L2 | OVERALL LENGTH L1 | SHANK DIAMETER D2 | CORNER RADIUS R | UNCOATED | Ti-NAMITE (TiN) | Ti-NAMITE-C (TiCN) | Ti-NAMITE-A (AlTiN) | |
| 1/8 | 1/2 | 1-1/2 | 1/8 | .015 | 38001 | 38002 | 38115 | 38157 | |
| 1/8 | 1/2 | 1-1/2 | 1/8 | .020 | 38003 | 38004 | 38116 | 38158 | |
| 3/16 | 5/8 | 2 | 3/16 | .015 | 38009 | 38010 | 38117 | 38159 | |
| 3/16 | 5/8 | 2 | 3/16 | .020 | 38011 | 38012 | 38118 | 38160 | |
| 3/16 | 5/8 | 2 | 3/16 | .030 | 38013 | 38014 | 38119 | 38161 | STEELS |
| 1/4 | 3/4 | 2-1/2 | 1/4 | .015 | 38019 | 38020 | 38120 | 38162 | |
| 1/4 | 3/4 | 2-1/2 | 1/4 | .020 | 38021 | 38022 | 38121 | 38163 | STAINLESS STEELS |
| 1/4 | 3/4 | 2-1/2 | 1/4 | .030 | 38023 | 38024 | 38122 | 38164 | CAST IRON |
| 1/4 | 3/4 | 2-1/2 | 1/4 | .045 | 38025 | 38026 | 38123 | 38165 | HIGH TEMP ALLOYS |
| 5/16 | 13/16 | 2-1/2 | 5/16 | .015 | 38031 | 38032 | 38124 | 38166 | |
| 5/16 | 13/16 | 2-1/2 | 5/16 | .020 | 38033 | 38034 | 38125 | 38167 | TITANIUM |
| 5/16 | 13/16 | 2-1/2 | 5/16 | .030 | 38035 | 38036 | 38126 | 38168 | HARDENED STEELS |
| 5/16 | 13/16 | 2-1/2 | 5/16 | .045 | 38037 | 38038 | 38127 | 38169 | NON-FERROUS |
| 3/8 | 1 | 2-1/2 | 3/8 | .015 | 38045 | 38046 | 38128 | 38170 | PLASTICS/COMPOSITES |
| 3/8 | 1 | 2-1/2 | 3/8 | .020 | 38047 | 38048 | 38129 | 38171 | |
| 3/8 | 1 | 2-1/2 | 3/8 | .030 | 38049 | 38050 | 38130 | 38172 | |
| 3/8 | 1 | 2-1/2 | 3/8 | .045 | 38051 | 38052 | 38131 | 38173 | For patent ifi ii |
| 1/2 | 1 | 3 | 1/2 | .015 | 38059 | 38060 | 38132 | 38174 | normaton vst www.ksptpatents.c |
| 1/2 | 1 | 3 | 1/2 | .020 | 38061 | 38062 | 38133 | 38175 | |
| 1/2 | 1 | 3 | 1/2 | .030 | 38063 | 38064 | 38134 | 38176 | |
| 1/2 | 1 | 3 | 1/2 | .045 | 38065 | 38066 | 38135 | 38177 | |
| 1/2 | 1 | 3 | 1/2 | .060 | 38067 | 38068 | 38136 | 38178 | |
| 5/8 | 1-1/4 | 3-1/2 | 5/8 | .015 | 38073 | 38074 | 38137 | 38179 | |
| 5/8 | 1-1/4 | 3-1/2 | 5/8 | .020 | 38075 | 38076 | 38138 | 38180 | |
| 5/8 | 1-1/4 | 3-1/2 | 5/8 | .030 | 38077 | 38078 | 38139 | 38181 | |
| 5/8 | 1-1/4 | 3-1/2 | 5/8 | .045 | 38079 | 38080 | 38140 | 38182 | |
| 5/8 | 1-1/4 | 3-1/2 | 5/8 | .060 | 38081 | 38082 | 38141 | 38183 | |
| 5/8 | 1-1/4 | 3-1/2 | 5/8 | .090 | 38083 | 38084 | 38142 | 38184 | |
| 3/4 | 1-1/2 | 4 | 3/4 | .015 | 38087 | 38088 | 38143 | 38185 | |
| 3/4 | 1-1/2 | 4 | 3/4 | .020 | 38089 | 38090 | 38144 | 38186 |
*Without Flat continued on next page
