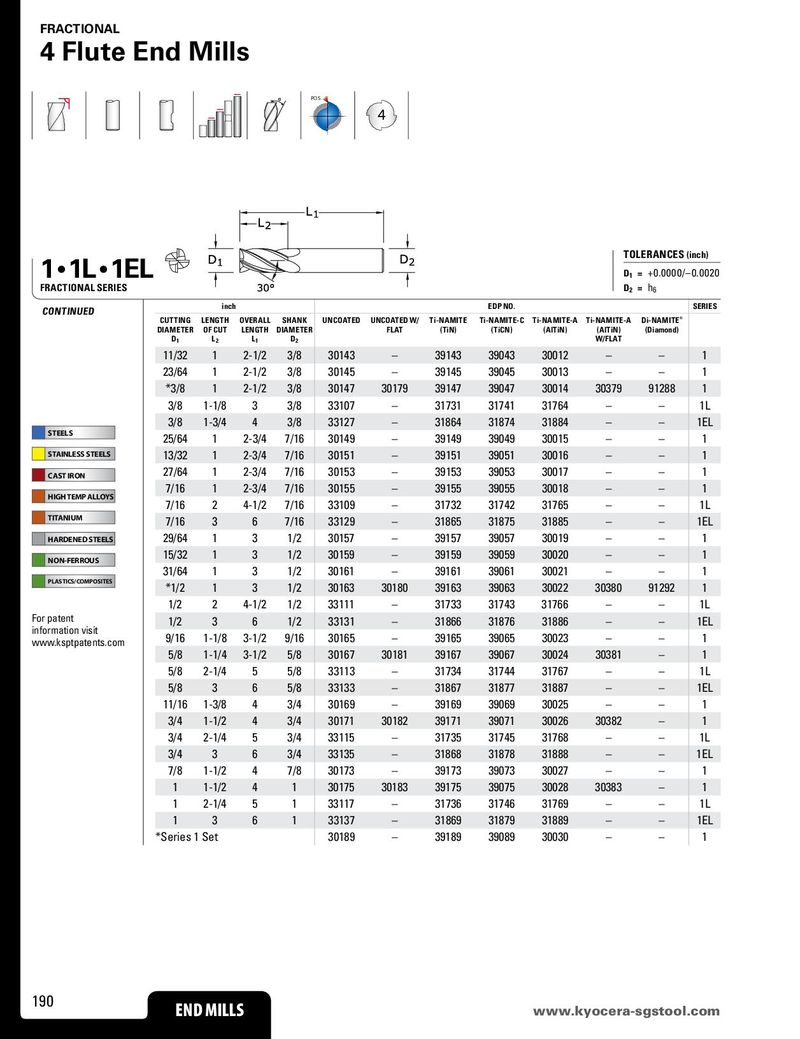

| 1• 1L• 1EL | T D | OLERANCES 1 = +0.0000 | (inch) /–0.0020 | |||||||||
| FRACTIONAL SERIES | D | 2 =h6 | ||||||||||
| CONTINUED | CUTTING DIAMETER D1 | inc LENGTH OF CUT L2 | h OVERALL LENGTH L1 | SHANK DIAMETER D2 | UNCOATED | UNCOATED W/ FLAT | Ti-NAMITE (TiN) | EDP NO. Ti-NAMITE-C (TiCN) | Ti-NAMITE-A (AlTiN) | Ti-NAMITE-A (AlTiN) W/FLAT | Di-NAMITE ® (Diamond) | SERIES |
| 11/32 | 1 | 2-1/2 | 3/8 | 30143 | – | 39143 | 39043 | 30012 | – | – | 1 | |
| 23/64 | 1 | 2-1/2 | 3/8 | 30145 | – | 39145 | 39045 | 30013 | – | – | 1 | |
| 3/8 | 1 | 2-1/2 | 3/8 | 30147 | 30179 | 39147 | 39047 | 30014 | 30379 | 91288 | 1 | |
| 3/8 | 1-1/8 | 3 | 3/8 | 33107 | – | 31731 | 31741 | 31764 | – | – | 1L | |
| 3/8 | 1-3/4 | 4 | 3/8 | 33127 | – | 31864 | 31874 | 31884 | – | – | 1EL | |
| STEELS | 25/64 | 1 | 2-3/4 | 7/16 | 30149 | – | 39149 | 39049 | 30015 | – | – | 1 |
| STAINLESS STEELS | 13/32 | 1 | 2-3/4 | 7/16 | 30151 | – | 39151 | 39051 | 30016 | – | – | 1 |
| CAST IRON | 27/64 | 1 | 2-3/4 | 7/16 | 30153 | – | 39153 | 39053 | 30017 | – | – | 1 |
| HIGH TEMP ALLOYS | 7/16 | 1 | 2-3/4 | 7/16 | 30155 | – | 39155 | 39055 | 30018 | – | – | 1 |
| 7/16 | 2 | 4-1/2 | 7/16 | 33109 | – | 31732 | 31742 | 31765 | – | – | 1L | |
| TITANIUM | 7/16 | 3 | 6 | 7/16 | 33129 | – | 31865 | 31875 | 31885 | – | – | 1EL |
| HARDENED STEELS | 29/64 | 1 | 3 | 1/2 | 30157 | – | 39157 | 39057 | 30019 | – | – | 1 |
| NON-FERROUS | 15/32 | 1 | 3 | 1/2 | 30159 | – | 39159 | 39059 | 30020 | – | – | 1 |
| 31/64 | 1 | 3 | 1/2 | 30161 | – | 39161 | 39061 | 30021 | – | – | 1 | |
| PLASTICS/COMPOSITES | 1/2 | 1 | 3 | 1/2 | 30163 | 30180 | 39163 | 39063 | 30022 | 30380 | 91292 | 1 |
| 1/2 | 2 | 4-1/2 | 1/2 | 33111 | – | 31733 | 31743 | 31766 | – | – | 1L | |
| r patent i ii | 1/2 | 3 | 6 | 1/2 | 33131 | – | 31866 | 31876 | 31886 | – | – | 1EL |
| ormaton vst ww.ksptpatents.com | 9/16 | 1-1/8 | 3-1/2 | 9/16 | 30165 | – | 39165 | 39065 | 30023 | – | – | 1 |
| 5/8 | 1-1/4 | 3-1/2 | 5/8 | 30167 | 30181 | 39167 | 39067 | 30024 | 30381 | – | 1 | |
| 5/8 | 2-1/4 | 5 | 5/8 | 33113 | – | 31734 | 31744 | 31767 | – | – | 1L | |
| 5/8 | 3 | 6 | 5/8 | 33133 | – | 31867 | 31877 | 31887 | – | – | 1EL | |
| 11/16 | 1-3/8 | 4 | 3/4 | 30169 | – | 39169 | 39069 | 30025 | – | – | 1 | |
| 3/4 | 1-1/2 | 4 | 3/4 | 30171 | 30182 | 39171 | 39071 | 30026 | 30382 | – | 1 | |
| 3/4 | 2-1/4 | 5 | 3/4 | 33115 | – | 31735 | 31745 | 31768 | – | – | 1L | |
| 3/4 | 3 | 6 | 3/4 | 33135 | – | 31868 | 31878 | 31888 | – | – | 1EL | |
| 7/8 | 1-1/2 | 4 | 7/8 | 30173 | – | 39173 | 39073 | 30027 | – | – | 1 | |
| 1 | 1-1/2 | 4 | 1 | 30175 | 30183 | 39175 | 39075 | 30028 | 30383 | – | 1 | |
| 1 | 2-1/4 | 5 | 1 | 33117 | – | 31736 | 31746 | 31769 | – | – | 1L | |
| 1 | 3 | 6 | 1 | 33137 | – | 31869 | 31879 | 31889 | – | – | 1EL | |
| Series 1 | Set | 30189 | – | 39189 | 39089 | 30030 | – | – | 1 |
