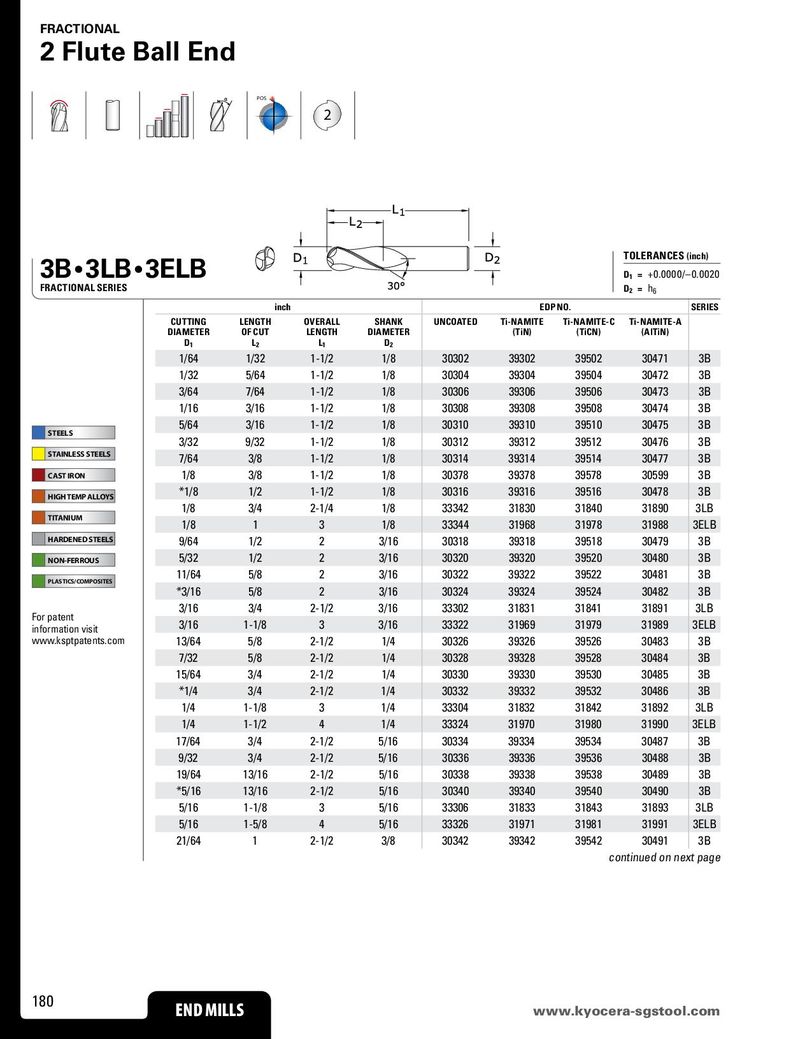

3B • 3LB • 3ELB TOLERANCES (inch) D = +0.0000/–0.0020 1 FRACTIONAL SERIES D = h 2 6
inch EDP NO. SERIES
| CUTTING | LENGTH | OVERALL | SHANK | UNCOATED | Ti-NAMITE | Ti-NAMITE-C | Ti-NAMITE-A | |||
| DIAMETER | OF CUT | LENGTH | DIAMETER | (TiN) | (TiCN) | (AlTiN) |
| D 1 | L2 | L1 | D 2 | ||||||
| 1/64 | 1/32 | 1-1/2 | 1/8 | 30302 | 39302 | 39502 | 30471 | 3B | |
| 1/32 | 5/64 | 1-1/2 | 1/8 | 30304 | 39304 | 39504 | 30472 | 3B | |
| 3/64 | 7/64 | 1-1/2 | 1/8 | 30306 | 39306 | 39506 | 30473 | 3B | |
| 1/16 | 3/16 | 1-1/2 | 1/8 | 30308 | 39308 | 39508 | 30474 | 3B | |
| 5/64 | 3/16 | 1-1/2 | 1/8 | 30310 | 39310 | 39510 | 30475 | 3B | |
| STEELS | 3/32 | 9/32 | 1-1/2 | 1/8 | 30312 | 39312 | 39512 | 30476 | 3B |
| STAINLESS STEELS | 7/64 | 3/8 | 1-1/2 | 1/8 | 30314 | 39314 | 39514 | 30477 | 3B |
| 1/8 | 3/8 | 1-1/2 | 1/8 | 30378 | 39378 | 39578 | 30599 | 3B |
CAST IRON
*1/8 1/2 1-1/2 1/8 30316 39316 39516 30478 3B
HIGH TEMP ALLOYS
| 1/8 | 3/4 | 2-1/4 | 1/8 | 33342 | 31830 | 31840 | 31890 | 3LB | |
| TITANIUM | 1/8 | 1 | 3 | 1/8 | 33344 | 31968 | 31978 | 31988 | 3ELB |
| HARDENED STEELS | 9/64 | 1/2 | 2 | 3/16 | 30318 | 39318 | 39518 | 30479 | 3B |
| 5/32 | 1/2 | 2 | 3/16 | 30320 | 39320 | 39520 | 30480 | 3B |
NON-FERROUS
| 11/64 | 5/8 | 2 | 3/16 | 30322 | 39322 | 39522 | 30481 | 3B | ||
| PLASTICS/COMPOSITES | *3/16 | 5/8 | 2 | 3/16 | 30324 | 39324 | 39524 | 30482 | 3B | |
| 3/16 | 3/4 | 2-1/2 | 3/16 | 33302 | 31831 | 31841 | 31891 | 3LB | ||
| For patent | 3/16 | 1-1/8 | 3 | 3/16 | 33322 | 31969 | 31979 | 31989 | 3ELB |
information visit
| www.ksptpatents.com 13/64 | 5/8 | 2-1/2 | 1/4 | 30326 | 39326 | 39526 | 30483 | 3B |
| 7/32 | 5/8 | 2-1/2 | 1/4 | 30328 | 39328 | 39528 | 30484 | 3B |
| 15/64 | 3/4 | 2-1/2 | 1/4 | 30330 | 39330 | 39530 | 30485 | 3B |
| *1/4 | 3/4 | 2-1/2 | 1/4 | 30332 | 39332 | 39532 | 30486 | 3B |
| 1/4 | 1-1/8 | 3 | 1/4 | 33304 | 31832 | 31842 | 31892 | 3LB |
| 1/4 | 1-1/2 | 4 | 1/4 | 33324 | 31970 | 31980 | 31990 | 3ELB |
| 17/64 | 3/4 | 2-1/2 | 5/16 | 30334 | 39334 | 39534 | 30487 | 3B |
| 9/32 | 3/4 | 2-1/2 | 5/16 | 30336 | 39336 | 39536 | 30488 | 3B |
| 19/64 | 13/16 | 2-1/2 | 5/16 | 30338 | 39338 | 39538 | 30489 | 3B |
| *5/16 | 13/16 | 2-1/2 | 5/16 | 30340 | 39340 | 39540 | 30490 | 3B |
| 5/16 | 1-1/8 | 3 | 5/16 | 33306 | 31833 | 31843 | 31893 | 3LB |
| 5/16 | 1-5/8 | 4 | 5/16 | 33326 | 31971 | 31981 | 31991 | 3ELB |
| 21/64 | 1 | 2-1/2 | 3/8 | 30342 | 39342 | 39542 | 30491 | 3B |
continued on next page
