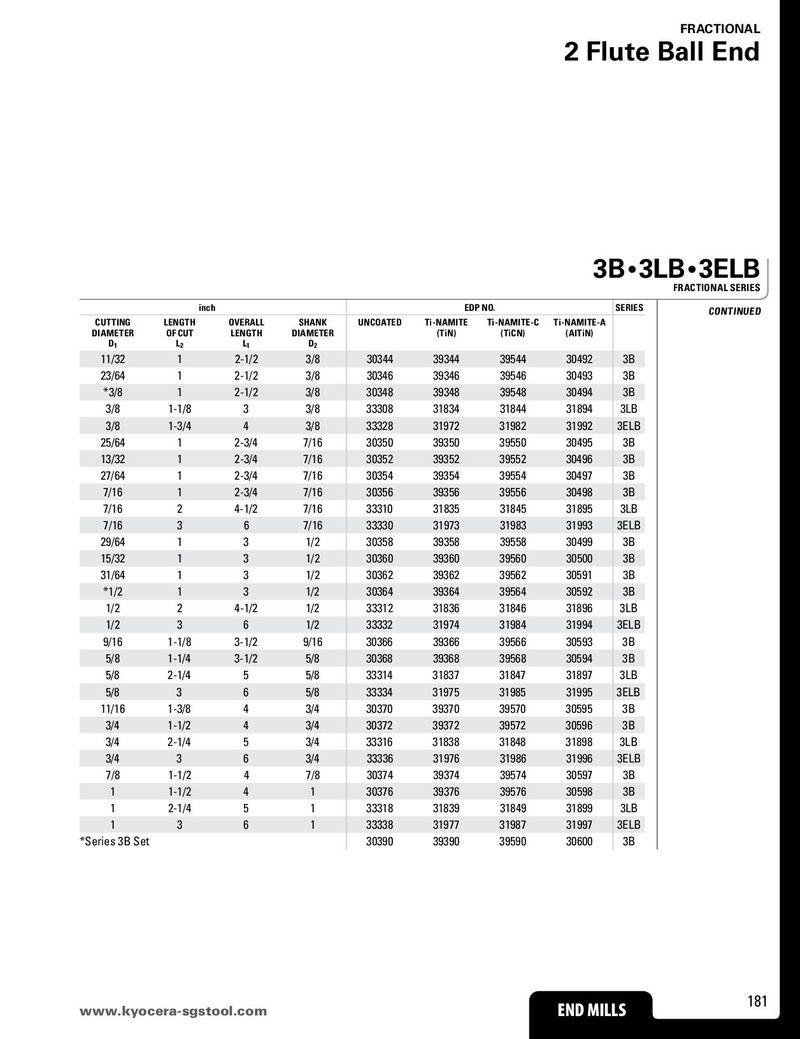

3B • 3LB • 3ELB
FRACTIONAL SERIES
| inch | EDP | NO. | SERIES | CONTINUED | |||||
| CUTTING DIAMETER D1 | LENGTH OF CUT L2 | OVERALL LENGTH L1 | SHANK DIAMETER D2 | UNCOATED | Ti-NAMITE (TiN) | Ti-NAMITE-C (TiCN) | Ti-NAMITE-A (AlTiN) | ||
| 11/32 | 1 | 2-1/2 | 3/8 | 30344 | 39344 | 39544 | 30492 | 3B | |
| 23/64 | 1 | 2-1/2 | 3/8 | 30346 | 39346 | 39546 | 30493 | 3B | |
| 3/8 | 1 | 2-1/2 | 3/8 | 30348 | 39348 | 39548 | 30494 | 3B | |
| 3/8 | 1-1/8 | 3 | 3/8 | 33308 | 31834 | 31844 | 31894 | 3LB | |
| 3/8 | 1-3/4 | 4 | 3/8 | 33328 | 31972 | 31982 | 31992 | 3ELB | |
| 25/64 | 1 | 2-3/4 | 7/16 | 30350 | 39350 | 39550 | 30495 | 3B | |
| 13/32 | 1 | 2-3/4 | 7/16 | 30352 | 39352 | 39552 | 30496 | 3B | |
| 27/64 | 1 | 2-3/4 | 7/16 | 30354 | 39354 | 39554 | 30497 | 3B | |
| 7/16 | 1 | 2-3/4 | 7/16 | 30356 | 39356 | 39556 | 30498 | 3B | |
| 7/16 | 2 | 4-1/2 | 7/16 | 33310 | 31835 | 31845 | 31895 | 3LB | |
| 7/16 | 3 | 6 | 7/16 | 33330 | 31973 | 31983 | 31993 | 3ELB | |
| 29/64 | 1 | 3 | 1/2 | 30358 | 39358 | 39558 | 30499 | 3B | |
| 15/32 | 1 | 3 | 1/2 | 30360 | 39360 | 39560 | 30500 | 3B | |
| 31/64 | 1 | 3 | 1/2 | 30362 | 39362 | 39562 | 30591 | 3B | |
| 1/2 | 1 | 3 | 1/2 | 30364 | 39364 | 39564 | 30592 | 3B | |
| 1/2 | 2 | 4-1/2 | 1/2 | 33312 | 31836 | 31846 | 31896 | 3LB | |
| 1/2 | 3 | 6 | 1/2 | 33332 | 31974 | 31984 | 31994 | 3ELB | |
| 9/16 | 1-1/8 | 3-1/2 | 9/16 | 30366 | 39366 | 39566 | 30593 | 3B | |
| 5/8 | 1-1/4 | 3-1/2 | 5/8 | 30368 | 39368 | 39568 | 30594 | 3B | |
| 5/8 | 2-1/4 | 5 | 5/8 | 33314 | 31837 | 31847 | 31897 | 3LB | |
| 5/8 | 3 | 6 | 5/8 | 33334 | 31975 | 31985 | 31995 | 3ELB | |
| 11/16 | 1-3/8 | 4 | 3/4 | 30370 | 39370 | 39570 | 30595 | 3B | |
| 3/4 | 1-1/2 | 4 | 3/4 | 30372 | 39372 | 39572 | 30596 | 3B | |
| 3/4 | 2-1/4 | 5 | 3/4 | 33316 | 31838 | 31848 | 31898 | 3LB | |
| 3/4 | 3 | 6 | 3/4 | 33336 | 31976 | 31986 | 31996 | 3ELB | |
| 7/8 | 1-1/2 | 4 | 7/8 | 30374 | 39374 | 39574 | 30597 | 3B | |
| 1 | 1-1/2 | 4 | 1 | 30376 | 39376 | 39576 | 30598 | 3B | |
| 1 | 2-1/4 | 5 | 1 | 33318 | 31839 | 31849 | 31899 | 3LB | |
| 1 | 3 | 6 | 1 | 33338 | 31977 | 31987 | 31997 | 3ELB | |
| Series 3B Set | 30390 | 39390 | 39590 | 30600 | 3B |
