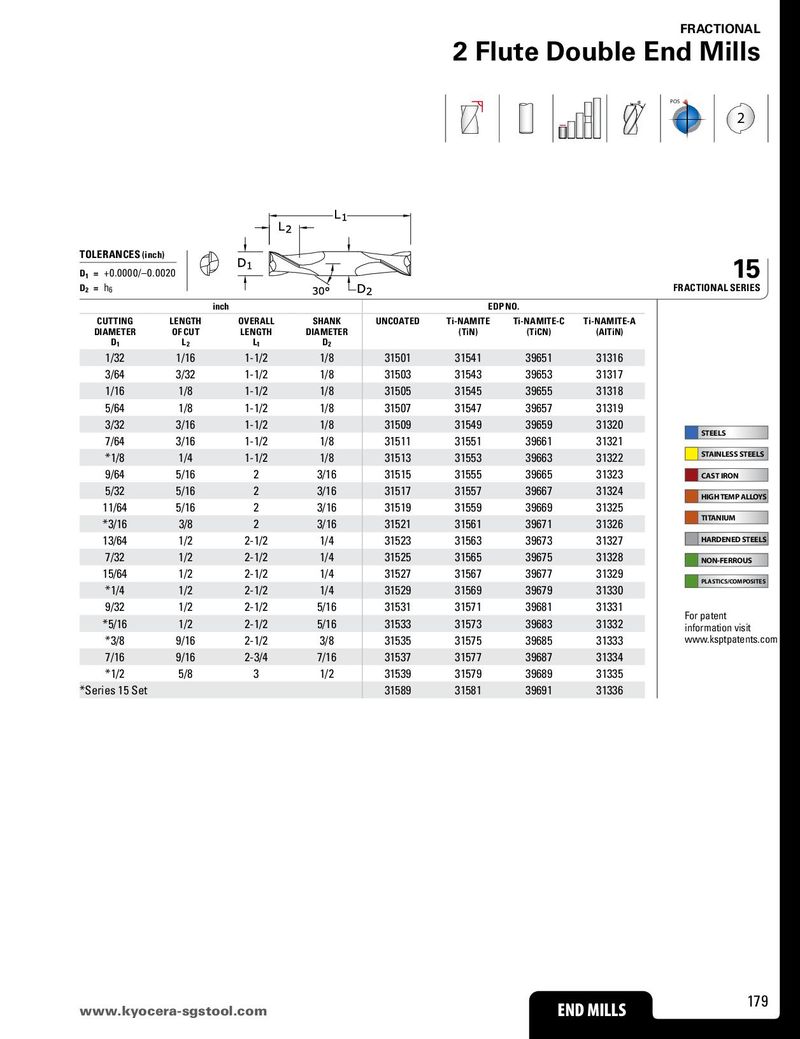

Общий каталог SGS 2018 - страница 179
Навигация
Каталог SGS шестизубые фрезы T-carb
Каталог SGS микро инструмент 2021
Каталог SGS фрезы для алюминия S-carb
Каталог SGS высокопроизводительные черновые фрезы
Каталог SGS инструмент для обработки алюминия
Общий каталог SGS 2015 на русском
POS
2
TOLERANCES (inch) 15 D = +0.0000/–0.0020 1 D = h FRACTIONAL SERIES 2 6 inch EDP NO.
| CUTTING | LENGTH | OVERALL | SHANK | UNCOATED | Ti-NAMITE | Ti-NAMITE-C | Ti-NAMITE-A | |||
| DIAMETER | OF CUT | LENGTH | DIAMETER | (TiN) | (TiCN) | (AlTiN) |
| D | L | L | D | ||||||
| 1 | 2 | 1 | 2 | ||||||
| 1/32 | 1/16 | 1-1/2 | 1/8 | 31501 | 31541 | 39651 | 31316 | ||
| 3/64 | 3/32 | 1-1/2 | 1/8 | 31503 | 31543 | 39653 | 31317 | ||
| 1/16 | 1/8 | 1-1/2 | 1/8 | 31505 | 31545 | 39655 | 31318 | ||
| 5/64 | 1/8 | 1-1/2 | 1/8 | 31507 | 31547 | 39657 | 31319 | ||
| 3/32 | 3/16 | 1-1/2 | 1/8 | 31509 | 31549 | 39659 | 31320 | ||
| 7/64 | 3/16 | 1-1/2 | 1/8 | 31511 | 31551 | 39661 | 31321 | STEELS | |
| *1/8 | 1/4 | 1-1/2 | 1/8 | 31513 | 31553 | 39663 | 31322 | STAINLESS STEELS | |
| 9/64 | 5/16 | 2 | 3/16 | 31515 | 31555 | 39665 | 31323 |
CAST IRON
5/32 5/16 2 3/16 31517 31557 39667 31324
HIGH TEMP ALLOYS
| 11/64 | 5/16 | 2 | 3/16 | 31519 | 31559 | 39669 | 31325 | |
| *3/16 | 3/8 | 2 | 3/16 | 31521 | 31561 | 39671 | 31326 | TITANIUM |
| 13/64 | 1/2 | 2-1/2 | 1/4 | 31523 | 31563 | 39673 | 31327 | HARDENED STEELS |
| 7/32 | 1/2 | 2-1/2 | 1/4 | 31525 | 31565 | 39675 | 31328 |
NON-FERROUS
| 15/64 | 1/2 | 2-1/2 | 1/4 | 31527 | 31567 | 39677 | 31329 | |
| *1/4 | 1/2 | 2-1/2 | 1/4 | 31529 | 31569 | 39679 | 31330 | PLASTICS/COMPOSITES |
| 9/32 | 1/2 | 2-1/2 | 5/16 | 31531 | 31571 | 39681 | 31331 |
For patent
| *5/16 | 1/2 | 2-1/2 | 5/16 | 31533 | 31573 | 39683 | 31332 | information visit | |
| *3/8 | 9/16 | 2-1/2 | 3/8 | 31535 | 31575 | 39685 | 31333 | www.ksptpatents.com | |
| 7/16 | 9/16 | 2-3/4 | 7/16 | 31537 | 31577 | 39687 | 31334 | ||
| *1/2 | 5/8 | 3 | 1/2 | 31539 | 31579 | 39689 | 31335 | ||
| *Series 15 Set | 31589 | 31581 | 39691 | 31336 |
