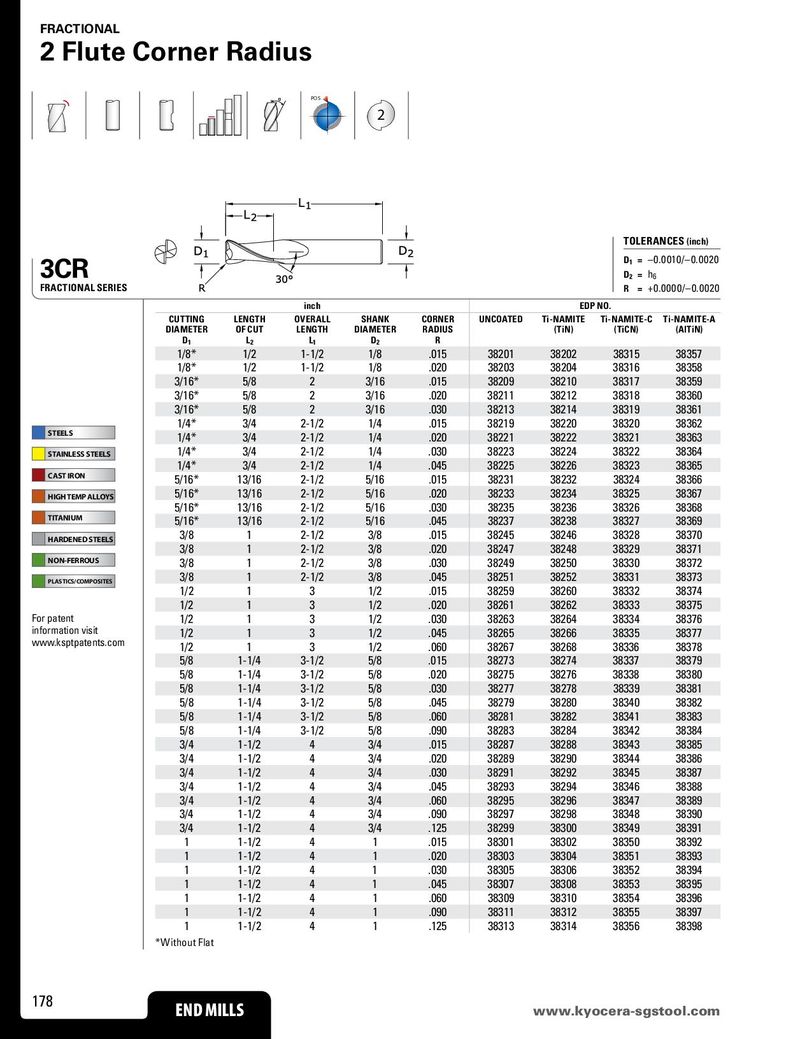

TOLERANCES (inch) 3CR D = –0.0010/–0.0020 1 D = h 2 6 FRACTIONAL SERIES R = +0.0000/–0.0020 inch EDP NO.
| CUTTING | LENGTH | OVERALL | SHANK | CORNER | UNCOATED | Ti-NAMITE | Ti-NAMITE-C | Ti-NAMITE-A | |||
| DIAMETER | OF CUT | LENGTH | DIAMETER | RADIUS | (TiN) | (TiCN) | (AlTiN) |
| D1 | L2 | L1 | D 2 | R | ||||
| 1/8* | 1/2 | 1-1/2 | 1/8 | .015 | 38201 | 38202 | 38315 | 38357 |
| 1/8* | 1/2 | 1-1/2 | 1/8 | .020 | 38203 | 38204 | 38316 | 38358 |
| 3/16* | 5/8 | 2 | 3/16 | .015 | 38209 | 38210 | 38317 | 38359 |
| 3/16* | 5/8 | 2 | 3/16 | .020 | 38211 | 38212 | 38318 | 38360 |
| 3/16* | 5/8 | 2 | 3/16 | .030 | 38213 | 38214 | 38319 | 38361 |
| 1/4* | 3/4 | 2-1/2 | 1/4 | .015 | 38219 | 38220 | 38320 | 38362 |
| STEELS 1/4* | 3/4 | 2-1/2 | 1/4 | .020 | 38221 | 38222 | 38321 | 38363 |
| 1/4* | 3/4 | 2-1/2 | 1/4 | .030 | 38223 | 38224 | 38322 | 38364 |
STAINLESS STEELS
| 1/4* | 3/4 | 2-1/2 | 1/4 | .045 | 38225 | 38226 | 38323 | 38365 | |
| CAST IRON | 5/16* | 13/16 | 2-1/2 | 5/16 | .015 | 38231 | 38232 | 38324 | 38366 |
| 5/16* | 13/16 | 2-1/2 | 5/16 | .020 | 38233 | 38234 | 38325 | 38367 |
HIGH TEMP ALLOYS
| 5/16* | 13/16 | 2-1/2 | 5/16 | .030 | 38235 | 38236 | 38326 | 38368 |
| TITANIUM 5/16* | 13/16 | 2-1/2 | 5/16 | .045 | 38237 | 38238 | 38327 | 38369 |
| 3/8 | 1 | 2-1/2 | 3/8 | .015 | 38245 | 38246 | 38328 | 38370 |
| HARDENED STEELS 3/8 | 1 | 2-1/2 | 3/8 | .020 | 38247 | 38248 | 38329 | 38371 |
| NON-FERROUS 3/8 | 1 | 2-1/2 | 3/8 | .030 | 38249 | 38250 | 38330 | 38372 |
| 3/8 | 1 | 2-1/2 | 3/8 | .045 | 38251 | 38252 | 38331 | 38373 |
| PLASTICS/COMPOSITES 1/2 | 1 | 3 | 1/2 | .015 | 38259 | 38260 | 38332 | 38374 |
| 1/2 | 1 | 3 | 1/2 | .020 | 38261 | 38262 | 38333 | 38375 |
| For patent 1/2 | 1 | 3 | 1/2 | .030 | 38263 | 38264 | 38334 | 38376 |
| information visit 1/2 | 1 | 3 | 1/2 | .045 | 38265 | 38266 | 38335 | 38377 |
| www.ksptpatents.com 1/2 | 1 | 3 | 1/2 | .060 | 38267 | 38268 | 38336 | 38378 |
| 5/8 | 1-1/4 | 3-1/2 | 5/8 | .015 | 38273 | 38274 | 38337 | 38379 |
| 5/8 | 1-1/4 | 3-1/2 | 5/8 | .020 | 38275 | 38276 | 38338 | 38380 |
| 5/8 | 1-1/4 | 3-1/2 | 5/8 | .030 | 38277 | 38278 | 38339 | 38381 |
| 5/8 | 1-1/4 | 3-1/2 | 5/8 | .045 | 38279 | 38280 | 38340 | 38382 |
| 5/8 | 1-1/4 | 3-1/2 | 5/8 | .060 | 38281 | 38282 | 38341 | 38383 |
| 5/8 | 1-1/4 | 3-1/2 | 5/8 | .090 | 38283 | 38284 | 38342 | 38384 |
| 3/4 | 1-1/2 | 4 | 3/4 | .015 | 38287 | 38288 | 38343 | 38385 |
| 3/4 | 1-1/2 | 4 | 3/4 | .020 | 38289 | 38290 | 38344 | 38386 |
| 3/4 | 1-1/2 | 4 | 3/4 | .030 | 38291 | 38292 | 38345 | 38387 |
| 3/4 | 1-1/2 | 4 | 3/4 | .045 | 38293 | 38294 | 38346 | 38388 |
| 3/4 | 1-1/2 | 4 | 3/4 | .060 | 38295 | 38296 | 38347 | 38389 |
| 3/4 | 1-1/2 | 4 | 3/4 | .090 | 38297 | 38298 | 38348 | 38390 |
| 3/4 | 1-1/2 | 4 | 3/4 | .125 | 38299 | 38300 | 38349 | 38391 |
| 1 | 1-1/2 | 4 | 1 | .015 | 38301 | 38302 | 38350 | 38392 |
| 1 | 1-1/2 | 4 | 1 | .020 | 38303 | 38304 | 38351 | 38393 |
| 1 | 1-1/2 | 4 | 1 | .030 | 38305 | 38306 | 38352 | 38394 |
| 1 | 1-1/2 | 4 | 1 | .045 | 38307 | 38308 | 38353 | 38395 |
| 1 | 1-1/2 | 4 | 1 | .060 | 38309 | 38310 | 38354 | 38396 |
| 1 | 1-1/2 | 4 | 1 | .090 | 38311 | 38312 | 38355 | 38397 |
| 1 | 1-1/2 | 4 | 1 | .125 | 38313 | 38314 | 38356 | 38398 |
*Without Flat
