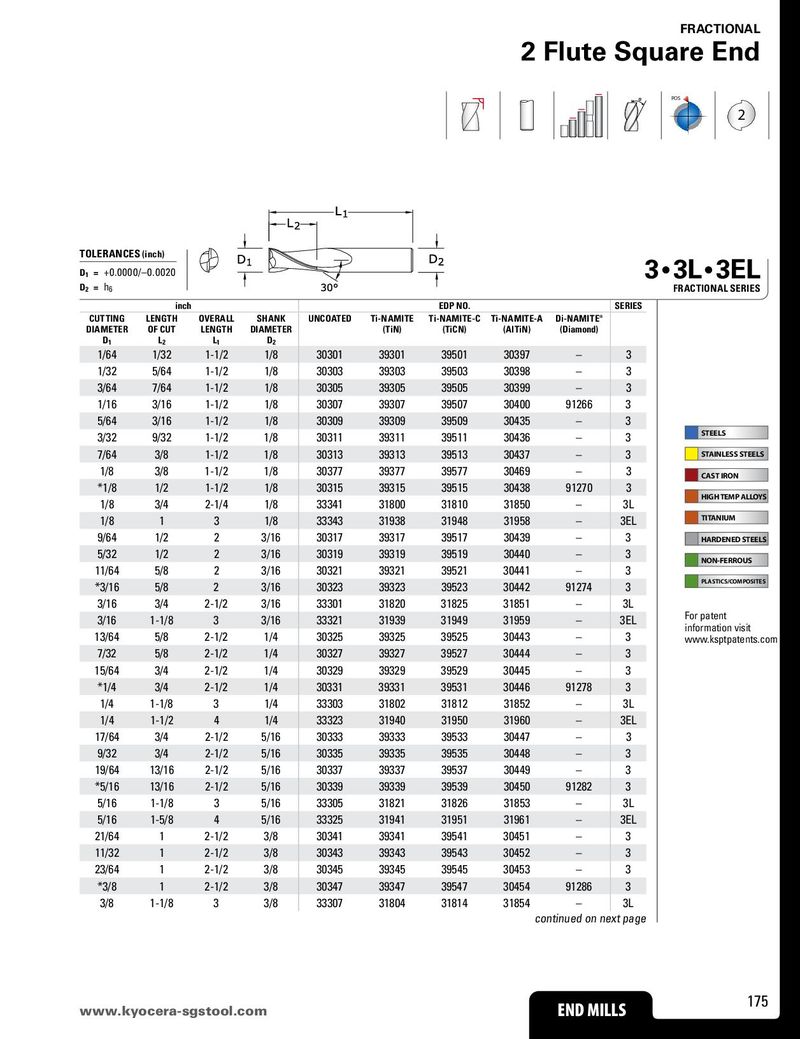

POS
2
TOLERANCES (inch) 3 3L 3EL
D = +0.0000/–0.0020 1 D = h FRACTIONAL SERIES 2 6
inch EDP NO. SERIES
| CUTTING | LENGTH | OVERALL | SHANK | UNCOATED | Ti-NAMITE | Ti-NAMITE-C | Ti-NAMITE-A | Di-NAMITE® | |||
| DIAMETER | OF CUT | LENGTH | DIAMETER | (TiN) | (TiCN) | (AlTiN) | (Diamond) |
| D1 | L 2 | L1 | D 2 | |||||||
| 1/64 | 1/32 | 1-1/2 | 1/8 | 30301 | 39301 | 39501 | 30397 | – | 3 | |
| 1/32 | 5/64 | 1-1/2 | 1/8 | 30303 | 39303 | 39503 | 30398 | – | 3 | |
| 3/64 | 7/64 | 1-1/2 | 1/8 | 30305 | 39305 | 39505 | 30399 | – | 3 | |
| 1/16 | 3/16 | 1-1/2 | 1/8 | 30307 | 39307 | 39507 | 30400 | 91266 | 3 | |
| 5/64 | 3/16 | 1-1/2 | 1/8 | 30309 | 39309 | 39509 | 30435 | – | 3 | |
| 3/32 | 9/32 | 1-1/2 | 1/8 | 30311 | 39311 | 39511 | 30436 | – | 3 | STEELS |
| 7/64 | 3/8 | 1-1/2 | 1/8 | 30313 | 39313 | 39513 | 30437 | – | 3 | STAINLESS STEELS |
| 1/8 | 3/8 | 1-1/2 | 1/8 | 30377 | 39377 | 39577 | 30469 | – | 3 |
CAST IRON
| *1/8 | 1/2 | 1-1/2 | 1/8 | 30315 | 39315 | 39515 | 30438 | 91270 | 3 | |
| 1/8 | 3/4 | 2-1/4 | 1/8 | 33341 | 31800 | 31810 | 31850 | – | 3L | HIGH TEMP ALLOYS |
| 1/8 | 1 | 3 | 1/8 | 33343 | 31938 | 31948 | 31958 | – | 3EL | TITANIUM |
| 9/64 | 1/2 | 2 | 3/16 | 30317 | 39317 | 39517 | 30439 | – | 3 |
HARDENED STEELS
| 5/32 | 1/2 | 2 | 3/16 | 30319 | 39319 | 39519 | 30440 | – | 3 | ||
| 11/64 | 5/8 | 2 | 3/16 | 30321 | 39321 | 39521 | 30441 | – | 3 | NON-FERROUS | |
| *3/16 | 5/8 | 2 | 3/16 | 30323 | 39323 | 39523 | 30442 | 91274 | 3 | PLASTICS/COMPOSITES | |
| 3/16 | 3/4 | 2-1/2 | 3/16 | 33301 | 31820 | 31825 | 31851 | – | 3L | ||
| 3/16 | 1-1/8 | 3 | 3/16 | 33321 | 31939 | 31949 | 31959 | – | 3EL | For patent |
information visit
| 13/64 | 5/8 | 2-1/2 | 1/4 | 30325 | 39325 | 39525 | 30443 | – | www.ksptpatents.com 3 |
| 7/32 | 5/8 | 2-1/2 | 1/4 | 30327 | 39327 | 39527 | 30444 | – | 3 |
| 15/64 | 3/4 | 2-1/2 | 1/4 | 30329 | 39329 | 39529 | 30445 | – | 3 |
| *1/4 | 3/4 | 2-1/2 | 1/4 | 30331 | 39331 | 39531 | 30446 | 91278 | 3 |
| 1/4 | 1-1/8 | 3 | 1/4 | 33303 | 31802 | 31812 | 31852 | – | 3L |
| 1/4 | 1-1/2 | 4 | 1/4 | 33323 | 31940 | 31950 | 31960 | – | 3EL |
| 17/64 | 3/4 | 2-1/2 | 5/16 | 30333 | 39333 | 39533 | 30447 | – | 3 |
| 9/32 | 3/4 | 2-1/2 | 5/16 | 30335 | 39335 | 39535 | 30448 | – | 3 |
| 19/64 | 13/16 | 2-1/2 | 5/16 | 30337 | 39337 | 39537 | 30449 | – | 3 |
| *5/16 | 13/16 | 2-1/2 | 5/16 | 30339 | 39339 | 39539 | 30450 | 91282 | 3 |
| 5/16 | 1-1/8 | 3 | 5/16 | 33305 | 31821 | 31826 | 31853 | – | 3L |
| 5/16 | 1-5/8 | 4 | 5/16 | 33325 | 31941 | 31951 | 31961 | – | 3EL |
| 21/64 | 1 | 2-1/2 | 3/8 | 30341 | 39341 | 39541 | 30451 | – | 3 |
| 11/32 | 1 | 2-1/2 | 3/8 | 30343 | 39343 | 39543 | 30452 | – | 3 |
| 23/64 | 1 | 2-1/2 | 3/8 | 30345 | 39345 | 39545 | 30453 | – | 3 |
| *3/8 | 1 | 2-1/2 | 3/8 | 30347 | 39347 | 39547 | 30454 | 91286 | 3 |
| 3/8 | 1-1/8 | 3 | 3/8 | 33307 | 31804 | 31814 | 31854 | – | 3L |
continued on next page
