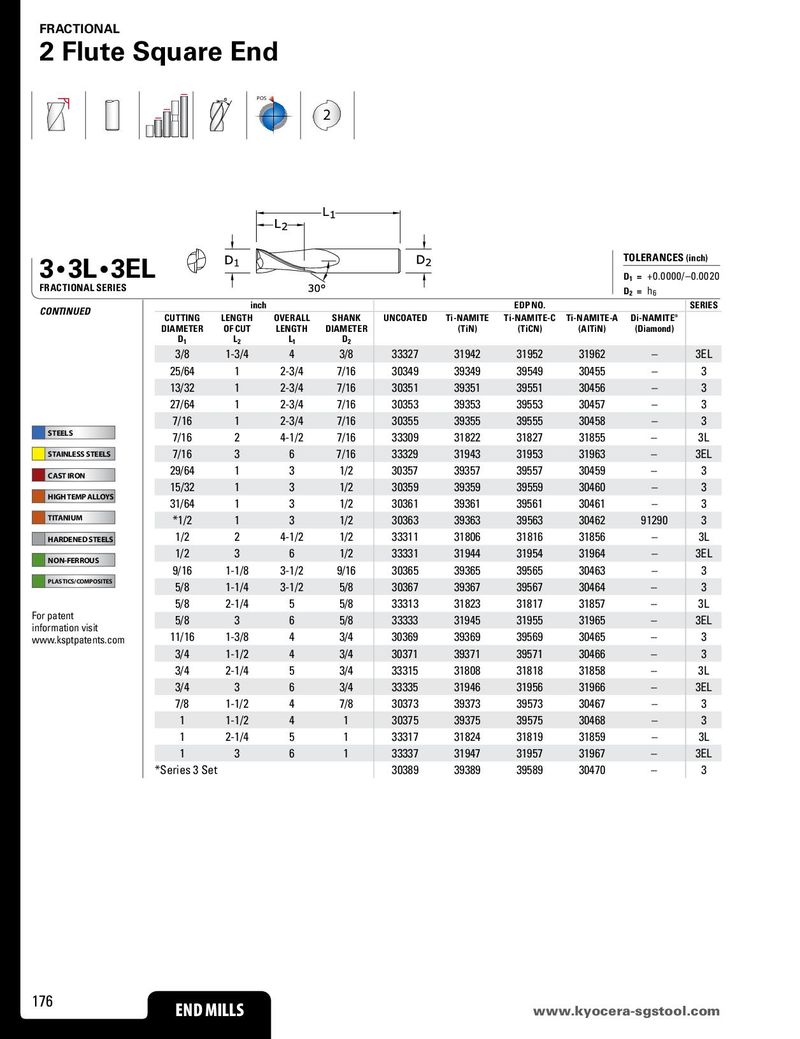

3 • 3L • 3EL TOLERANCES (inch) D = +0.0000/–0.0020 1 FRACTIONAL SERIES D = h 2 6
CONTINUED inch EDP NO. SERIES
| CUTTING | LENGTH | OVERALL | SHANK | UNCOATED | Ti-NAMITE | Ti-NAMITE-C | Ti-NAMITE-A | Di-NAMITE® | |||
| DIAMETER | OF CUT | LENGTH | DIAMETER | (TiN) | (TiCN) | (AlTiN) | (Diamond) |
| D 1 | L2 | L1 | D 2 | |||||||
| 3/8 | 1-3/4 | 4 | 3/8 | 33327 | 31942 | 31952 | 31962 | – | 3EL | |
| 25/64 | 1 | 2-3/4 | 7/16 | 30349 | 39349 | 39549 | 30455 | – | 3 | |
| 13/32 | 1 | 2-3/4 | 7/16 | 30351 | 39351 | 39551 | 30456 | – | 3 | |
| 27/64 | 1 | 2-3/4 | 7/16 | 30353 | 39353 | 39553 | 30457 | – | 3 | |
| 7/16 | 1 | 2-3/4 | 7/16 | 30355 | 39355 | 39555 | 30458 | – | 3 | |
| STEELS | 7/16 | 2 | 4-1/2 | 7/16 | 33309 | 31822 | 31827 | 31855 | – | 3L |
| STAINLESS STEELS | 7/16 | 3 | 6 | 7/16 | 33329 | 31943 | 31953 | 31963 | – | 3EL |
| 29/64 | 1 | 3 | 1/2 | 30357 | 39357 | 39557 | 30459 | – | 3 |
CAST IRON
| 15/32 | 1 | 3 | 1/2 | 30359 | 39359 | 39559 | 30460 | – | 3 | |
| HIGH TEMP ALLOYS | 31/64 | 1 | 3 | 1/2 | 30361 | 39361 | 39561 | 30461 | – | 3 |
| TITANIUM | *1/2 | 1 | 3 | 1/2 | 30363 | 39363 | 39563 | 30462 | 91290 | 3 |
| 1/2 | 2 | 4-1/2 | 1/2 | 33311 | 31806 | 31816 | 31856 | – | 3L |
HARDENED STEELS
| 1/2 | 3 | 6 | 1/2 | 33331 | 31944 | 31954 | 31964 | – | 3EL | ||
| NON-FERROUS | 9/16 | 1-1/8 | 3-1/2 | 9/16 | 30365 | 39365 | 39565 | 30463 | – | 3 | |
| PLASTICS/COMPOSITES | 5/8 | 1-1/4 | 3-1/2 | 5/8 | 30367 | 39367 | 39567 | 30464 | – | 3 | |
| 5/8 | 2-1/4 | 5 | 5/8 | 33313 | 31823 | 31817 | 31857 | – | 3L | ||
| For patent | 5/8 | 3 | 6 | 5/8 | 33333 | 31945 | 31955 | 31965 | – | 3EL |
information visit
| www.ksptpatents.com 11/16 | 1-3/8 | 4 | 3/4 | 30369 | 39369 | 39569 | 30465 | – | 3 |
| 3/4 | 1-1/2 | 4 | 3/4 | 30371 | 39371 | 39571 | 30466 | – | 3 |
| 3/4 | 2-1/4 | 5 | 3/4 | 33315 | 31808 | 31818 | 31858 | – | 3L |
| 3/4 | 3 | 6 | 3/4 | 33335 | 31946 | 31956 | 31966 | – | 3EL |
| 7/8 | 1-1/2 | 4 | 7/8 | 30373 | 39373 | 39573 | 30467 | – | 3 |
| 1 | 1-1/2 | 4 | 1 | 30375 | 39375 | 39575 | 30468 | – | 3 |
| 1 | 2-1/4 | 5 | 1 | 33317 | 31824 | 31819 | 31859 | – | 3L |
| 1 | 3 | 6 | 1 | 33337 | 31947 | 31957 | 31967 | – | 3EL |
| *Series 3 Set | 30389 | 39389 | 39589 | 30470 | – | 3 |
