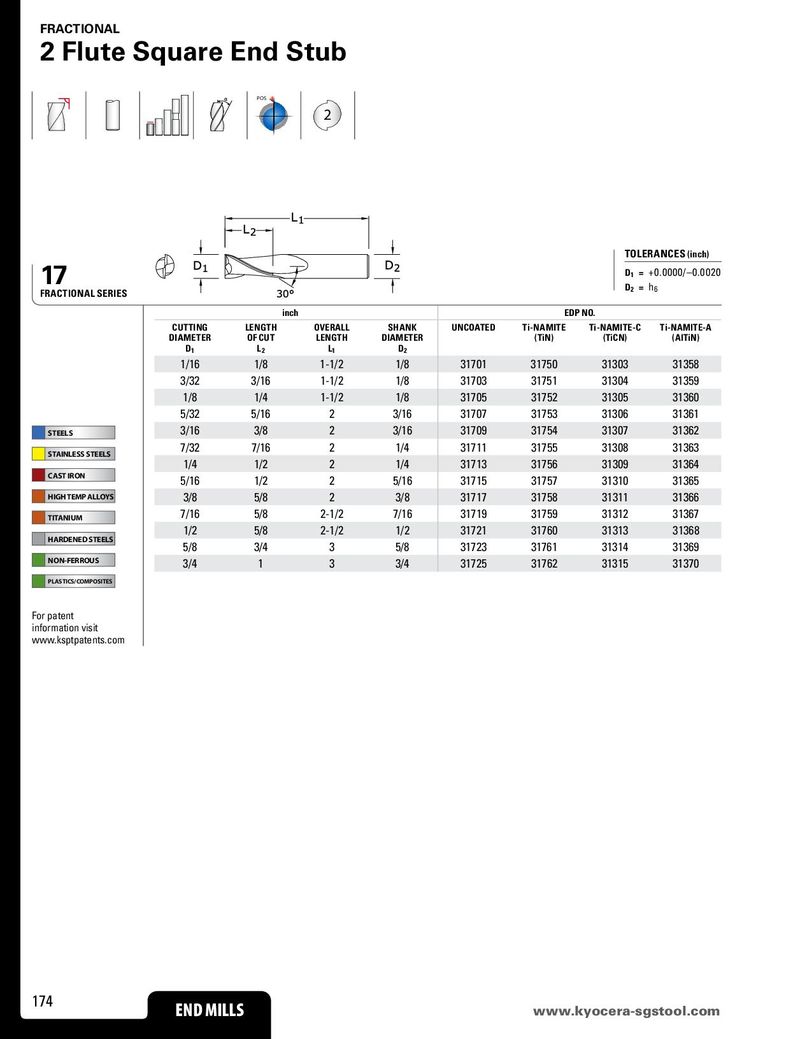

POS
2
17 TOLERANCES (inch) D = +0.0000/–0.0020 1 D = h
FRACTIONAL SERIES 2 6
inch EDP NO.
| CUTTING | LENGTH | OVERALL | SHANK | UNCOATED | Ti-NAMITE | Ti-NAMITE-C | Ti-NAMITE-A | |||
| DIAMETER | OF CUT | LENGTH | DIAMETER | (TiN) | (TiCN) | (AlTiN) |
| D | L | L | D | |||||
| 1 | 2 | 1 | 2 | |||||
| 1/16 | 1/8 | 1-1/2 | 1/8 | 31701 | 31750 | 31303 | 31358 | |
| 3/32 | 3/16 | 1-1/2 | 1/8 | 31703 | 31751 | 31304 | 31359 | |
| 1/8 | 1/4 | 1-1/2 | 1/8 | 31705 | 31752 | 31305 | 31360 | |
| 5/32 | 5/16 | 2 | 3/16 | 31707 | 31753 | 31306 | 31361 | |
| 3/16 | 3/8 | 2 | 3/16 | 31709 | 31754 | 31307 | 31362 |
STEELS
| 7/32 | 7/16 | 2 | 1/4 | 31711 | 31755 | 31308 | 31363 | |
| STAINLESS STEELS | 1/4 | 1/2 | 2 | 1/4 | 31713 | 31756 | 31309 | 31364 |
| CAST IRON | 5/16 | 1/2 | 2 | 5/16 | 31715 | 31757 | 31310 | 31365 |
| HIGH TEMP ALLOYS | 3/8 | 5/8 | 2 | 3/8 | 31717 | 31758 | 31311 | 31366 |
| 7/16 | 5/8 | 2-1/2 | 7/16 | 31719 | 31759 | 31312 | 31367 |
TITANIUM
| 1/2 | 5/8 | 2-1/2 | 1/2 | 31721 | 31760 | 31313 | 31368 | |
| HARDENED STEELS | 5/8 | 3/4 | 3 | 5/8 | 31723 | 31761 | 31314 | 31369 |
| NON-FERROUS | 3/4 | 1 | 3 | 3/4 | 31725 | 31762 | 31315 | 31370 |
PLASTICS/COMPOSITES For patent information visit www.ksptpatents.com
