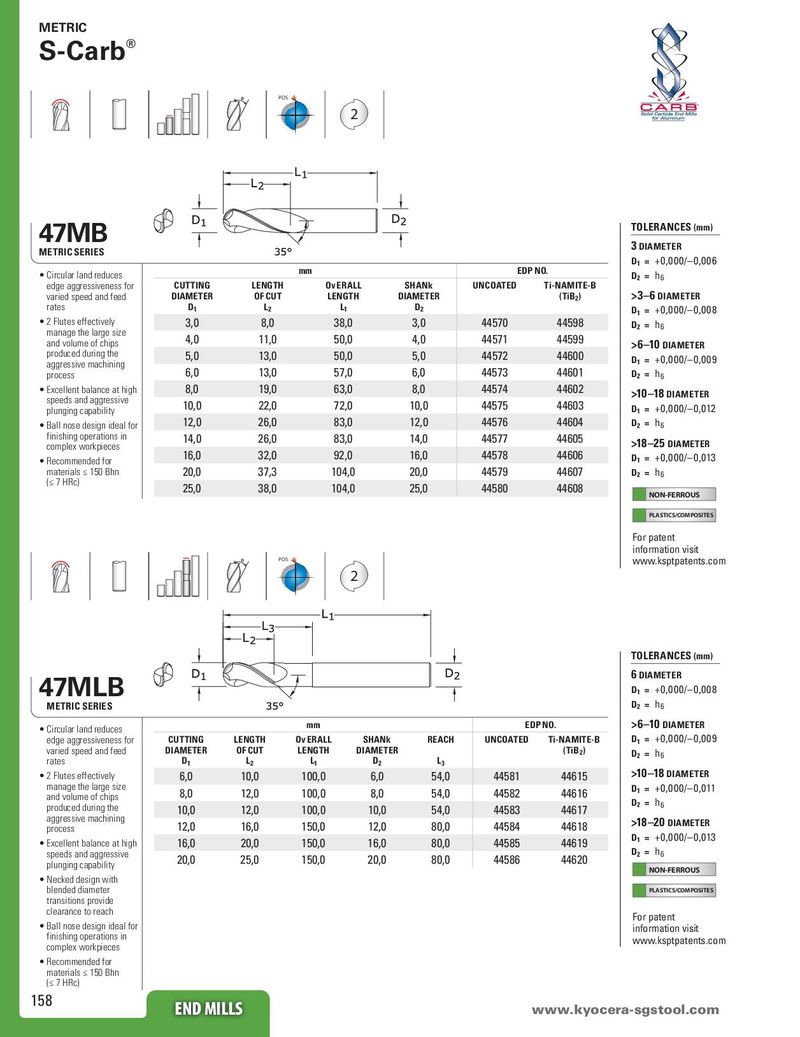

METRIC
S-Carb®
POS
®
2


47MB TOLERANCES (mm)
3 DIAMETER
METRIC Series
D1 = +0,000/–0,006
mm EDP No.
• Circular land reduces D2 = h6
edge aggressiveness for Cutting Length Ov erall Shank Uncoated Ti-NAMITE-B
varied speed and feed Diameter of Cut Length Diameter (TiB2) >3–6 DIAMETER
rates D1 l2 L1 D2 D1 = +0,000/–0,008
• 2 Flutes effectively 3,0 8,0 38,0 3,0 44570 44598 D2 = h6
manage the large size
and volume of chips 4,0 11,0 50,0 4,0 44571 44599 >6–10 DIAMETER
produced during the 5,0 13,0 50,0 5,0 44572 44600 D1 = +0,000/–0,009
aggressive machining
process 6,0 13,0 57,0 6,0 44573 44601 D2 = h6
• Excellent balance at high 8,0 19,0 63,0 8,0 44574 44602 >10–18 DIAMETER
speeds and aggressive
plunging capability 10,0 22,0 72,0 10,0 44575 44603 D1 = +0,000/–0,012
• Ball nose design ideal for 12,0 26,0 83,0 12,0 44576 44604 D2 = h6
finishing operations in 14,0 26,0 83,0 14,0 44577 44605
complex workpieces >18–25 DIAMETER
• Recommended for
16,0 32,0 92,0 16,0 44578 44606 D1 = +0,000/–0,013
materials ≤ 150 Bhn 20,0 37,3 104,0 20,0 44579 44607 D2 = h6
(≤ 7 HRc)
25,0 38,0 104,0 25,0 44580 44608 NON-FERROUS
PLASTICS/COMPOSITES

For patent
information visit
POS
www.ksptpatents.com
2


TOLERANCES (mm)
6 DIAMETER
47MLB D1 = +0,000/–0,008
D2 = h6
Metric Series
• Circular land reduces mm EDP No. >6–10 DIAMETER
edge aggressiveness for Cutting Length Ov erall Shank Reach Uncoated Ti-NAMITE-B D1 = +0,000/–0,009
varied speed and feed Diameter of Cut Length Diameter (TiB2) D2 = h6
rates D1 l2 L1 D2 L3
• 2 Flutes effectively 6,0 10,0 100,0 6,0 54,0 44581 44615 >10–18 DIAMETER
manage the large size D1 = +0,000/–0,011
and volume of chips 8,0 12,0 100,0 8,0 54,0 44582 44616
D2 = h6
produced during the 10,0 12,0 100,0 10,0 54,0 44583 44617
aggressive machining >18–20 DIAMETER
process 12,0 16,0 150,0 12,0 80,0 44584 44618
D1 = +0,000/–0,013
• Excellent balance at high 16,0 20,0 150,0 16,0 80,0 44585 44619
speeds and aggressive D2 = h6
plunging capability 20,0 25,0 150,0 20,0 80,0 44586 44620
NON-FERROUS
• Necked design with
blended diameter PLASTICS/COMPOSITES
transitions provide
clearance to reach
For patent
• Ball nose design ideal for information visit
finishing operations in www.ksptpatents.com
complex workpieces
• Recommended for
materials ≤ 150 Bhn
(≤ 7 HRc)
158
