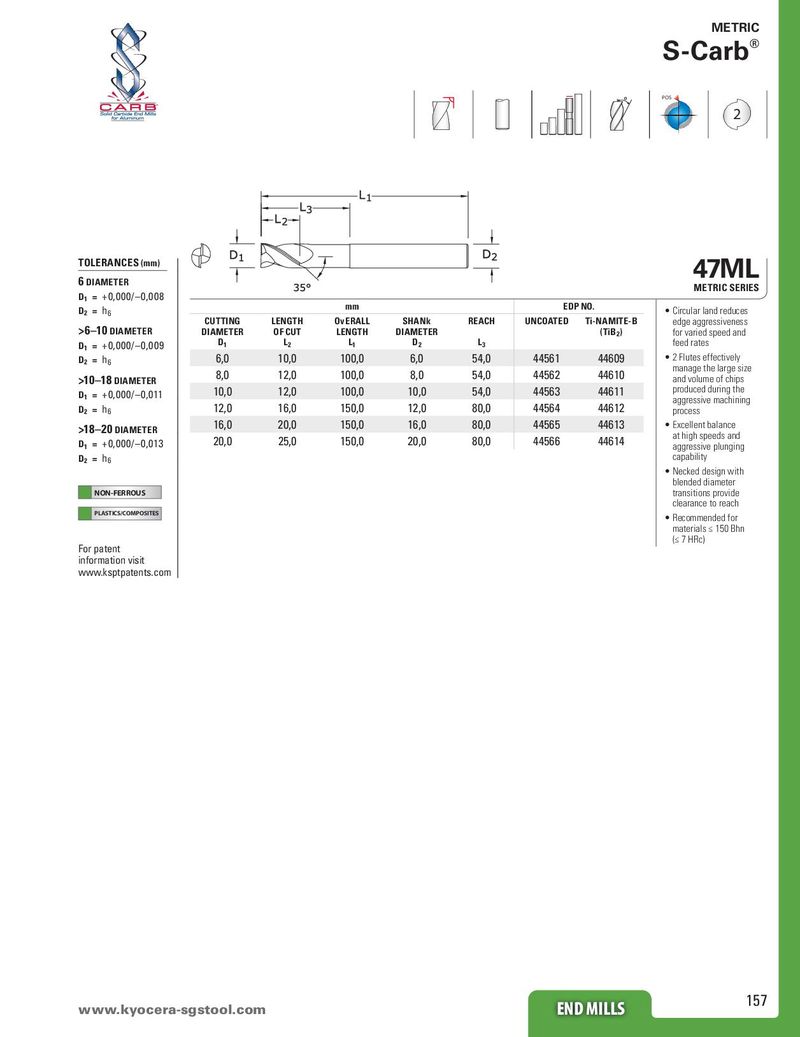

Общий каталог SGS 2018 - страница 157

METRIC
S-Carb®
POS
®
2


TOLERANCES (mm)
6 DIAMETER
47ML
Metric Series
D1 = +0,000/–0,008
D2 = h6 mm EDP No. • Circular land reduces
Cutting Length Ov erall Shank Reach Uncoated Ti-NAMITE-B edge aggressiveness
>6–10 DIAMETER Diameter of Cut Length Diameter (TiB2) for varied speed and
D1 = +0,000/–0,009 D1 l2 L1 D2 L3 feed rates
D2 = h6 6,0 10,0 100,0 6,0 54,0 44561 44609 • 2 Flutes effectively
manage the large size
>10–18 DIAMETER 8,0 12,0 100,0 8,0 54,0 44562 44610 and volume of chips
10,0 12,0 100,0 10,0 54,0 44563 44611 produced during the
D1 = +0,000/–0,011
aggressive machining
D2 = h6 12,0 16,0 150,0 12,0 80,0 44564 44612 process
>18–20 DIAMETER 16,0 20,0 150,0 16,0 80,0 44565 44613 • Excellent balance
at high speeds and
D1 = +0,000/–0,013 20,0 25,0 150,0 20,0 80,0 44566 44614 aggressive plunging
D2 = h6 capability
• Necked design with
blended diameter
NON-FERROUS transitions provide
clearance to reach
PLASTICS/COMPOSITES
• Recommended for
materials ≤ 150 Bhn
(≤ 7 HRc)
For patent
information visit
www.ksptpatents.com


157
END MILLS
