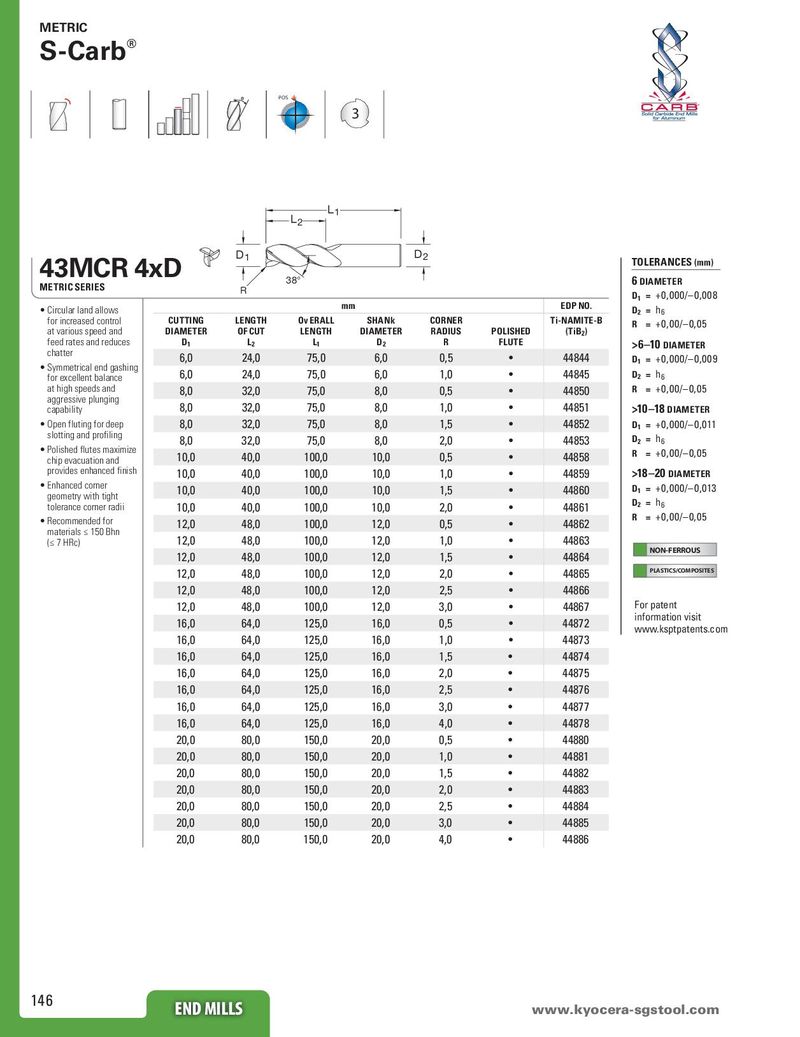

POS 3 ®
| 43MCR 4 METRIC SERIES | xD | 1 D R | 38° L1 L2 | 2 D | |||
| • Circular land allows | m | m | EDP NO. | ||||
| for increased control at various speed and feed rates and reduces | CUTTING DIAMETER D1 | LENGTH OF CUT L2 | OvERALL LENGTH L1 | SHANk DIAMETER D2 | CORNER RADIUS R | POLISHED FLUTE | Ti-NAMITE-B (TiB2) |
| chatter | 6,0 | 24,0 | 75,0 | 6,0 | 0,5 | • | 44844 |
| • Symmetrical end gashing for excellent balance | 6,0 | 24,0 | 75,0 | 6,0 | 1,0 | • | 44845 |
| at high speeds and aressive lunin | 8,0 | 32,0 | 75,0 | 8,0 | 0,5 | • | 44850 |
| gg pgg capability | 8,0 | 32,0 | 75,0 | 8,0 | 1,0 | • | 44851 |
| • Open fluting for deep | 8,0 | 32,0 | 75,0 | 8,0 | 1,5 | • | 44852 |
| slotting and profiling | 8,0 | 32,0 | 75,0 | 8,0 | 2,0 | • | 44853 |
| • Polished flutes maximize chip evacuation and | 10,0 | 40,0 | 100,0 | 10,0 | 0,5 | • | 44858 |
| provides enhanced finish | 10,0 | 40,0 | 100,0 | 10,0 | 1,0 | • | 44859 |
| • Enhanced corner geometry with tight | 10,0 | 40,0 | 100,0 | 10,0 | 1,5 | • | 44860 |
| tolerance corner radii | 10,0 | 40,0 | 100,0 | 10,0 | 2,0 | • | 44861 |
| • Recommended for | 12,0 | 48,0 | 100,0 | 12,0 | 0,5 | • | 44862 |
| materials ≤ 150 Bhn (≤ 7 HRc) | 12,0 | 48,0 | 100,0 | 12,0 | 1,0 | • | 44863 |
| 12,0 | 48,0 | 100,0 | 12,0 | 1,5 | • | 44864 | |
| 12,0 | 48,0 | 100,0 | 12,0 | 2,0 | • | 44865 | |
| 12,0 | 48,0 | 100,0 | 12,0 | 2,5 | • | 44866 | |
| 12,0 | 48,0 | 100,0 | 12,0 | 3,0 | • | 44867 | |
| 16,0 | 64,0 | 125,0 | 16,0 | 0,5 | • | 44872 | |
| 16,0 | 64,0 | 125,0 | 16,0 | 1,0 | • | 44873 | |
| 16,0 | 64,0 | 125,0 | 16,0 | 1,5 | • | 44874 | |
| 16,0 | 64,0 | 125,0 | 16,0 | 2,0 | • | 44875 | |
| 16,0 | 64,0 | 125,0 | 16,0 | 2,5 | • | 44876 | |
| 16,0 | 64,0 | 125,0 | 16,0 | 3,0 | • | 44877 | |
| 16,0 | 64,0 | 125,0 | 16,0 | 4,0 | • | 44878 | |
| 20,0 | 80,0 | 150,0 | 20,0 | 0,5 | • | 44880 | |
| 20,0 | 80,0 | 150,0 | 20,0 | 1,0 | • | 44881 | |
| 20,0 | 80,0 | 150,0 | 20,0 | 1,5 | • | 44882 | |
| 20,0 | 80,0 | 150,0 | 20,0 | 2,0 | • | 44883 | |
| 20,0 | 80,0 | 150,0 | 20,0 | 2,5 | • | 44884 | |
| 20,0 | 80,0 | 150,0 | 20,0 | 3,0 | • | 44885 | |
| 20,0 | 80,0 | 150,0 | 20,0 | 4,0 | • | 44886 |
TOLERANCES (mm) D = +0,000/–0,008 1 2 6
D 1 = 2 6
1 2 6
