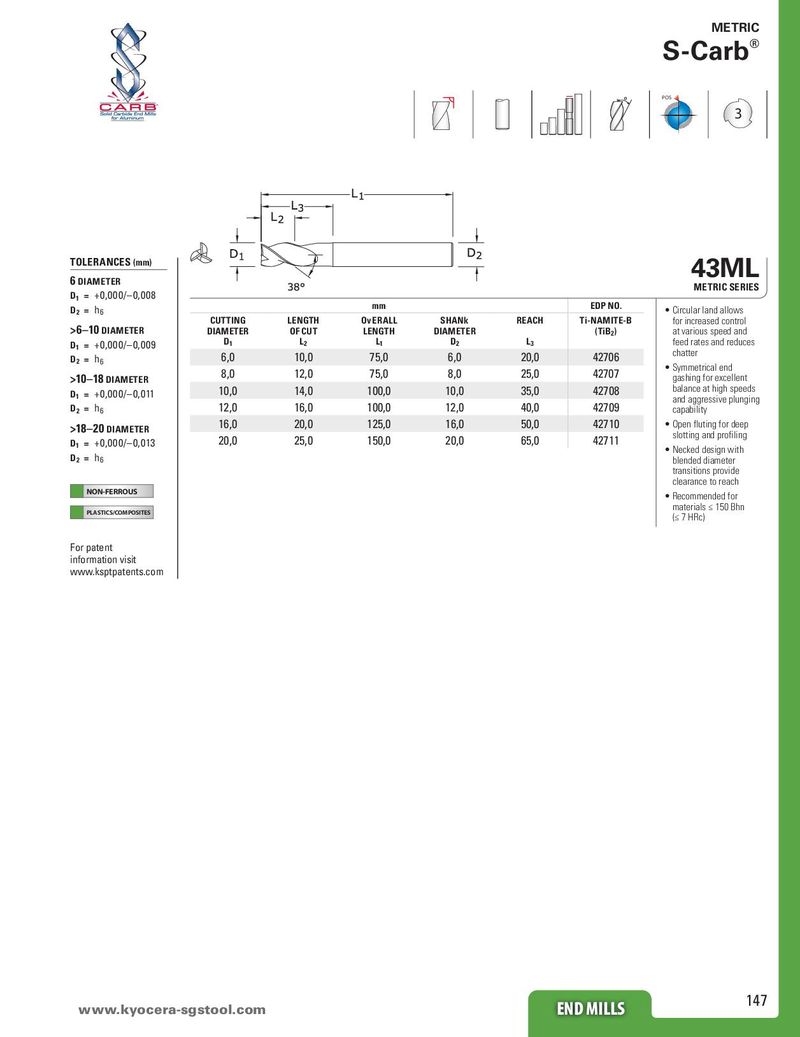

Общий каталог SGS 2018 - страница 147

METRIC
S-Carb®
POS
®
3


TOLERANCES (mm)
6 DIAMETER
43ML
Metric Series
D1 = +0,000/–0,008
D2 = h6 mm EDP No. • Circular land allows
Cutting Length Ov erall Shank REACH Ti-NAMITE-B for increased control
>6–10 DIAMETER Diameter of Cut Length Diameter (TiB2) at various speed and
D1 = +0,000/–0,009 D1 l2 L1 D2 L3 feed rates and reduces
chatter
D2 = h6 6,0 10,0 75,0 6,0 20,0 42706
• Symmetrical end
>10–18 DIAMETER 8,0 12,0 75,0 8,0 25,0 42707 gashing for excellent
10,0 14,0 100,0 10,0 35,0 42708 balance at high speeds
D1 = +0,000/–0,011
and aggressive plunging
D2 = h6 12,0 16,0 100,0 12,0 40,0 42709 capability
>18–20 DIAMETER 16,0 20,0 125,0 16,0 50,0 42710 • Open fluting for deep
slotting and profiling
D1 = +0,000/–0,013 20,0 25,0 150,0 20,0 65,0 42711
• Necked design with
D2 = h6 blended diameter
transitions provide
clearance to reach
NON-FERROUS
• Recommended for
PLASTICS/COMPOSITES
materials ≤ 150 Bhn
(≤ 7 HRc)

For patent
information visit
www.ksptpatents.com


147
END MILLS
www.kyocera-sgstool.com END MILLS
