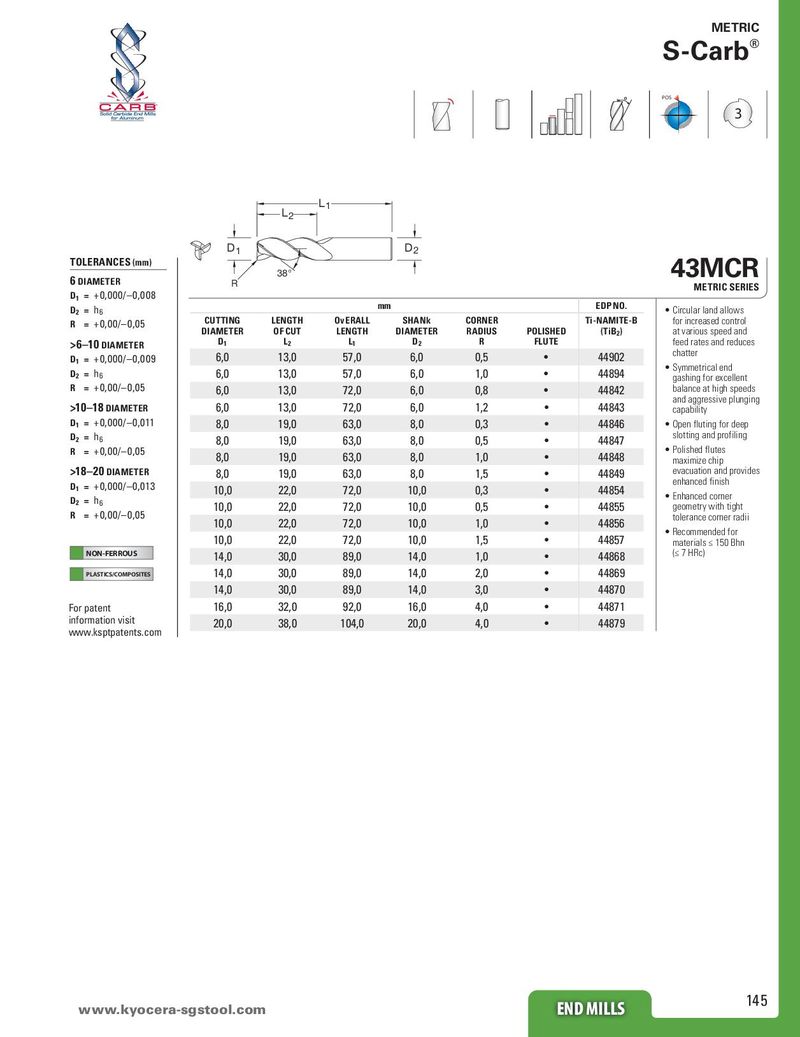

Общий каталог SGS 2018 - страница 145

METRIC
S-Carb®
POS
®
3


L1
L2

D1 D2
TOLERANCES (mm)
6 DIAMETER R
38° 43MCRMetric Series
D1 = +0,000/–0,008
D2 = h6 mm EDP No. • Circular land allows
R = +0,00/–0,05 Cutting Length Ov erall Shank Corner Ti-NAMITE-B for increased control
Diameter of Cut Length Diameter Radius polished (TiB2) at various speed and
>6–10 DIAMETER D1 l2 L1 D2 R flute feed rates and reduces
chatter
D1 = +0,000/–0,009 6,0 13,0 57,0 6,0 0,5 • 44902
• Symmetrical end
D2 = h6 6,0 13,0 57,0 6,0 1,0 • 44894 gashing for excellent
R = +0,00/–0,05 6,0 13,0 72,0 6,0 0,8 • 44842 balance at high speeds
and aggressive plunging
>10–18 DIAMETER 6,0 13,0 72,0 6,0 1,2 • 44843 capability
D1 = +0,000/–0,011 8,0 19,0 63,0 8,0 0,3 • 44846 • Open fluting for deep
D2 = h6 slotting and profiling
8,0 19,0 63,0 8,0 0,5 • 44847
R = +0,00/–0,05 • Polished flutes
8,0 19,0 63,0 8,0 1,0 • 44848 maximize chip
>18–20 DIAMETER 8,0 19,0 63,0 8,0 1,5 • 44849 evacuation and provides
enhanced finish
D1 = +0,000/–0,013 10,0 22,0 72,0 10,0 0,3 • 44854
D2 = h6
• Enhanced corner
10,0 22,0 72,0 10,0 0,5 • 44855 geometry with tight
R = +0,00/–0,05 tolerance corner radii
10,0 22,0 72,0 10,0 1,0 • 44856
• Recommended for
10,0 22,0 72,0 10,0 1,5 • 44857 materials ≤ 150 Bhn
NON-FERROUS
14,0 30,0 89,0 14,0 1,0 • 44868 (≤ 7 HRc)
PLASTICS/COMPOSITES 14,0 30,0 89,0 14,0 2,0 • 44869
14,0 30,0 89,0 14,0 3,0 • 44870
For patent 16,0 32,0 92,0 16,0 4,0 • 44871
information visit 20,0 38,0 104,0 20,0 4,0 • 44879
www.ksptpatents.com
