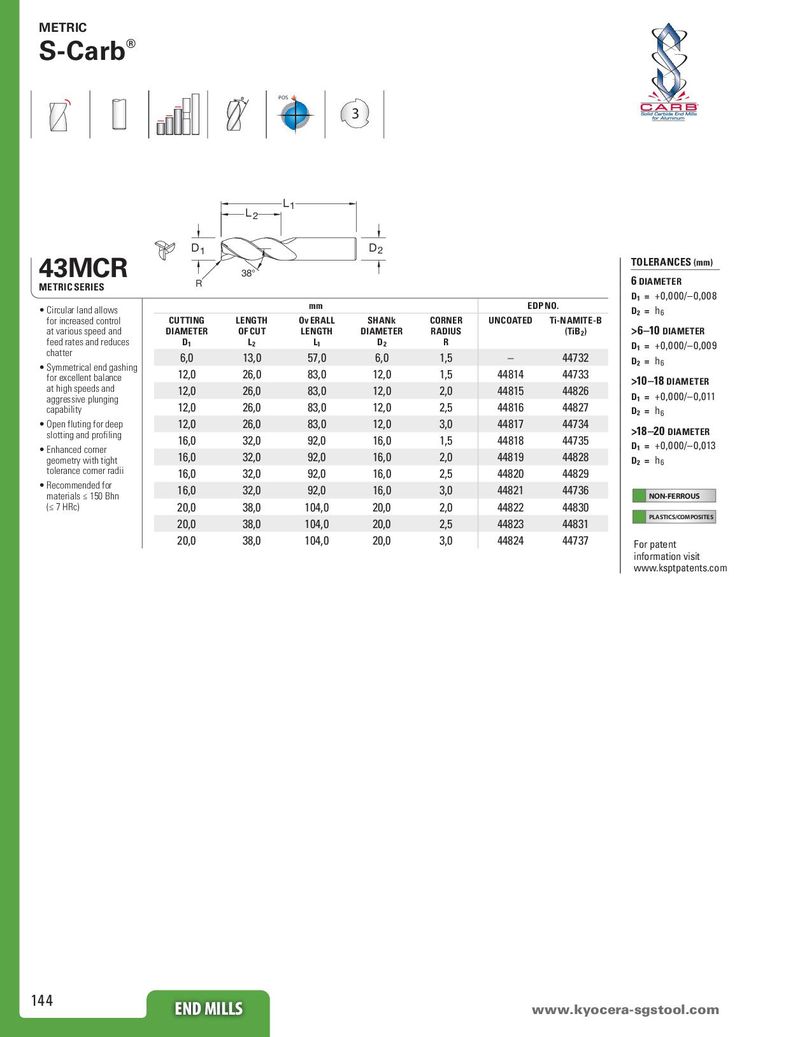

POS 3 ®
| L1 L2 | |
| 1 D | 2 D |
| R 38° |
TOLERANCES (mm)
METRIC SERIES R DIAMETER
D = +0,000/–0,008
| • Circular land allows | mm | ED | P NO. | ||||
| for increased control at various speed and feed rates and reduces | CUTTING DIAMETER D1 | LENGTH OF CUT L2 | OvERALL LENGTH L1 | SHANk DIAMETER D2 | CORNER RADIUS R | UNCOATED | Ti-NAMITE-B (TiB2) |
| chatter | 6,0 | 13,0 | 57,0 | 6,0 | 1,5 | – | 44732 |
| • Symmetrical end gashing for excellent balance | 12,0 | 26,0 | 83,0 | 12,0 | 1,5 | 44814 | 44733 |
| at high speeds and i li | 12,0 | 26,0 | 83,0 | 12,0 | 2,0 | 44815 | 44826 |
| aggressve pungng capability | 12,0 | 26,0 | 83,0 | 12,0 | 2,5 | 44816 | 44827 |
| • Open fluting for deep | 12,0 | 26,0 | 83,0 | 12,0 | 3,0 | 44817 | 44734 |
| slotting and profiling • Ehd | 16,0 | 32,0 | 92,0 | 16,0 | 1,5 | 44818 | 44735 |
| nance corner geometry with tight | 16,0 | 32,0 | 92,0 | 16,0 | 2,0 | 44819 | 44828 |
| tolerance corner radii | 16,0 | 32,0 | 92,0 | 16,0 | 2,5 | 44820 | 44829 |
| • Recommended for materials ≤ 150 Bhn | 16,0 | 32,0 | 92,0 | 16,0 | 3,0 | 44821 | 44736 |
| (≤ 7 HRc) | 20,0 | 38,0 | 104,0 | 20,0 | 2,0 | 44822 | 44830 |
| 20,0 | 38,0 | 104,0 | 20,0 | 2,5 | 44823 | 44831 | |
| 20,0 | 38,0 | 104,0 | 20,0 | 3,0 | 44824 | 44737 |
1 D 2 = 6
>10–18 DIAMETER
2 6
D 2 = 6
information visit www.ksptpatents.com
