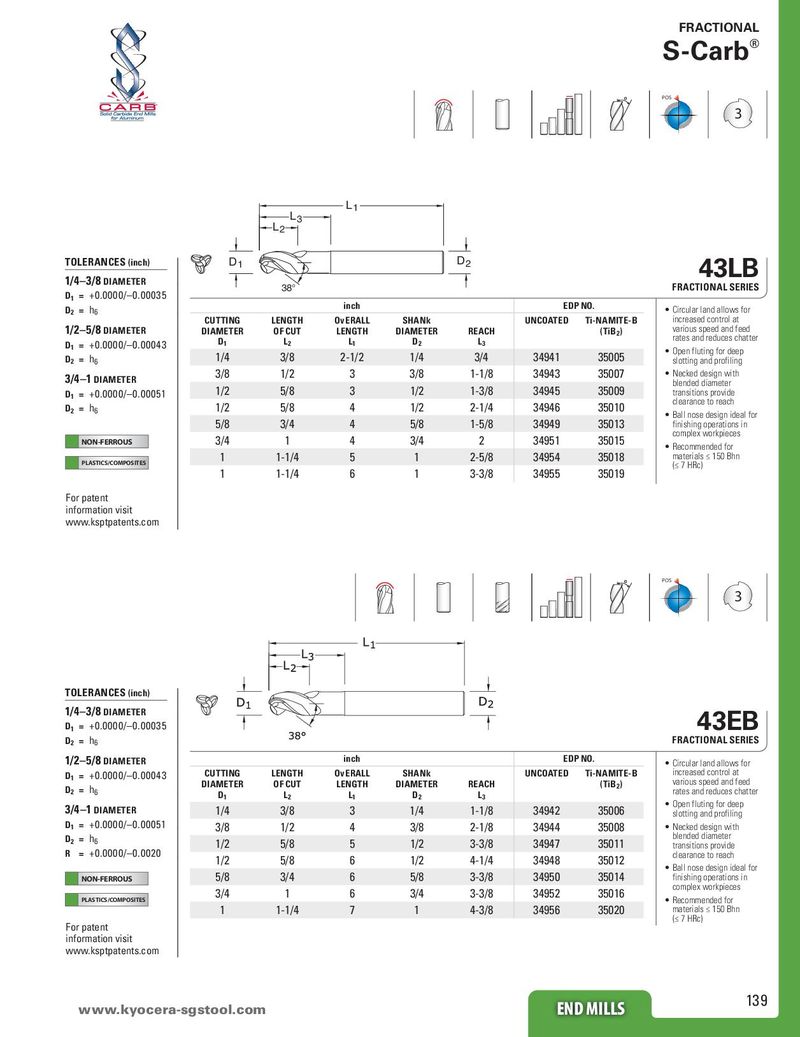

FRACTIONAL S-Carb® POS ® 3 L1 L3 L2 TOLERANCES (inch) 1/4–3/8 DIAMETER D1 D2 43LB 38° Fractional Series D1 = +0.0000/–0.00035 D2 = h6 inch EDP No. • Circular land allows for Cutting Length Ov erall Shank Uncoated Ti-NAMITE-B increased control at 1/2–5/8 DIAMETER Diameter of Cut Length Diameter REACH (TiB2) various speed and feed D1 l2 L1 D2 L3 rates and reduces chatter D1 = +0.0000/–0.00043 • Open fluting for deep D2 = h6 1/4 3/8 2-1/2 1/4 3/4 34941 35005 slotting and profiling 3/4–1 DIAMETER 3/8 1/2 3 3/8 1-1/8 34943 35007 • Necked design with blended diameter D1 = +0.0000/–0.00051 1/2 5/8 3 1/2 1-3/8 34945 35009 transitions provide clearance to reach D2 = h6 1/2 5/8 4 1/2 2-1/4 34946 35010 • Ball nose design ideal for 5/8 3/4 4 5/8 1-5/8 34949 35013 finishing operations in complex workpieces NON-FERROUS 3/4 1 4 3/4 2 34951 35015 • Recommended for 1 1-1/4 5 1 2-5/8 34954 35018 materials ≤ 150 Bhn PLASTICS/COMPOSITES (≤ 7 HRc) 1 1-1/4 6 1 3-3/8 34955 35019 For patent information visit www.ksptpatents.com POS 3 TOLERANCES (inch) 1/4–3/8 DIAMETER D1 = +0.0000/–0.00035 43EB D2 = h6 Fractional Series 1/2–5/8 DIAMETER inch EDP No. • Circular land allows for D1 = +0.0000/–0.00043 Cutting Length Ov erall Shank Uncoated Ti-NAMITE-B increased control at Diameter of Cut Length Diameter REACH (TiB2) various speed and feed D2 = h6 rates and reduces chatter D1 l2 L1 D2 L3 • Open fluting for deep 3/4–1 DIAMETER 1/4 3/8 3 1/4 1-1/8 34942 35006 slotting and profiling D1 = +0.0000/–0.00051 3/8 1/2 4 3/8 2-1/8 34944 35008 • Necked design with D2 = h6 blended diameter 1/2 5/8 5 1/2 3-3/8 34947 35011 transitions provide R = +0.0000/–0.0020 clearance to reach 1/2 5/8 6 1/2 4-1/4 34948 35012 • Ball nose design ideal for NON-FERROUS 5/8 3/4 6 5/8 3-3/8 34950 35014 finishing operations in complex workpieces PLASTICS/COMPOSITES 3/4 1 6 3/4 3-3/8 34952 35016 • Recommended for 1 1-1/4 7 1 4-3/8 34956 35020 materials ≤ 150 Bhn (≤ 7 HRc) For patent information visit www.ksptpatents.com 139 END MILLS www.kyocera-sgstool.com END MILLS
