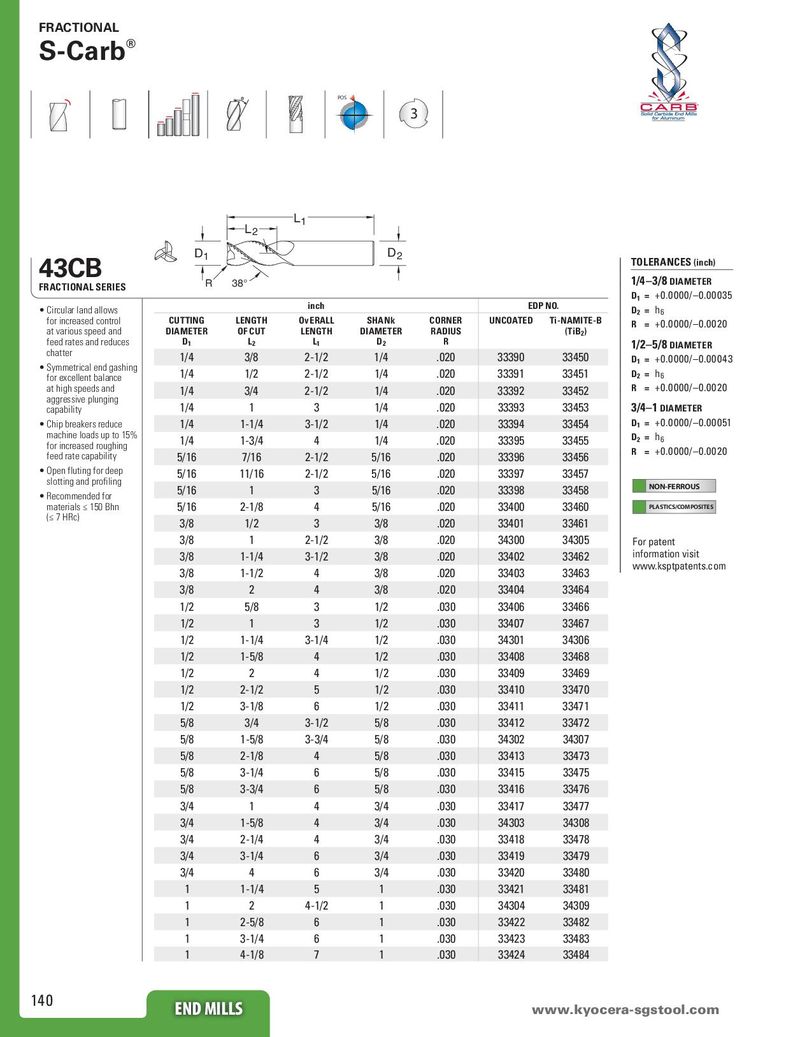

POS 3 ®
| L1 L2 1 D | 2 D |
| R 38° |
(inch)
R 38° 1/4–3/8 DIAMETER
FRACTIONAL SERIES D = +0.0000/–0.00035
| CUTTING DIAMETER D1 | LENGTH OF CUT L2 | inch OvERALL LENGTH L1 | SHANk DIAMETER D2 | CORNER RADIUS R | EDP UNCOATED | NO. Ti-NAMITE-B (TiB2) |
| 1/4 | 3/8 | 2-1/2 | 1/4 | .020 | 33390 | 33450 |
| 1/4 | 1/2 | 2-1/2 | 1/4 | .020 | 33391 | 33451 |
| 1/4 | 3/4 | 2-1/2 | 1/4 | .020 | 33392 | 33452 |
| 1/4 | 1 | 3 | 1/4 | .020 | 33393 | 33453 |
| 1/4 | 1-1/4 | 3-1/2 | 1/4 | .020 | 33394 | 33454 |
| 1/4 | 1-3/4 | 4 | 1/4 | .020 | 33395 | 33455 |
| 5/16 | 7/16 | 2-1/2 | 5/16 | .020 | 33396 | 33456 |
| 5/16 | 11/16 | 2-1/2 | 5/16 | .020 | 33397 | 33457 |
| 5/16 | 1 | 3 | 5/16 | .020 | 33398 | 33458 |
| 5/16 | 2-1/8 | 4 | 5/16 | .020 | 33400 | 33460 |
| 3/8 | 1/2 | 3 | 3/8 | .020 | 33401 | 33461 |
| 3/8 | 1 | 2-1/2 | 3/8 | .020 | 34300 | 34305 |
| 3/8 | 1-1/4 | 3-1/2 | 3/8 | .020 | 33402 | 33462 |
| 3/8 | 1-1/2 | 4 | 3/8 | .020 | 33403 | 33463 |
| 3/8 | 2 | 4 | 3/8 | .020 | 33404 | 33464 |
| 1/2 | 5/8 | 3 | 1/2 | .030 | 33406 | 33466 |
| 1/2 | 1 | 3 | 1/2 | .030 | 33407 | 33467 |
| 1/2 | 1-1/4 | 3-1/4 | 1/2 | .030 | 34301 | 34306 |
| 1/2 | 1-5/8 | 4 | 1/2 | .030 | 33408 | 33468 |
| 1/2 | 2 | 4 | 1/2 | .030 | 33409 | 33469 |
| 1/2 | 2-1/2 | 5 | 1/2 | .030 | 33410 | 33470 |
| 1/2 | 3-1/8 | 6 | 1/2 | .030 | 33411 | 33471 |
| 5/8 | 3/4 | 3-1/2 | 5/8 | .030 | 33412 | 33472 |
| 5/8 | 1-5/8 | 3-3/4 | 5/8 | .030 | 34302 | 34307 |
| 5/8 | 2-1/8 | 4 | 5/8 | .030 | 33413 | 33473 |
| 5/8 | 3-1/4 | 6 | 5/8 | .030 | 33415 | 33475 |
| 5/8 | 3-3/4 | 6 | 5/8 | .030 | 33416 | 33476 |
| 3/4 | 1 | 4 | 3/4 | .030 | 33417 | 33477 |
| 3/4 | 1-5/8 | 4 | 3/4 | .030 | 34303 | 34308 |
| 3/4 | 2-1/4 | 4 | 3/4 | .030 | 33418 | 33478 |
| 3/4 | 3-1/4 | 6 | 3/4 | .030 | 33419 | 33479 |
| 3/4 | 4 | 6 | 3/4 | .030 | 33420 | 33480 |
| 1 | 1-1/4 | 5 | 1 | .030 | 33421 | 33481 |
| 1 | 2 | 4-1/2 | 1 | .030 | 34304 | 34309 |
| 1 | 2-5/8 | 6 | 1 | .030 | 33422 | 33482 |
| 1 | 3-1/4 | 6 | 1 | .030 | 33423 | 33483 |
| 1 | 4-1/8 | 7 | 1 | .030 | 33424 | 33484 |
1 2 6
aggressive plunging
feed rate capability slotting and profiling
- Recommended for
D 1 =
1
PLASTICS/COMPOSITES
