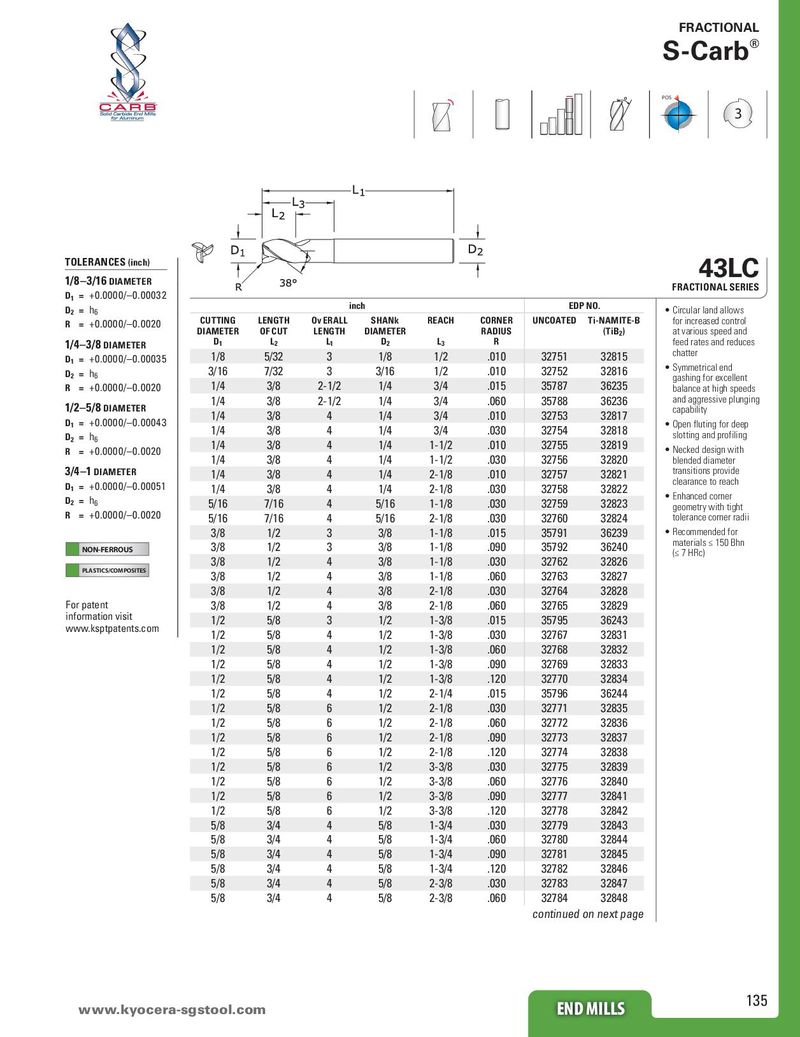

POS ® 3
| TOLERANCES(inch) | ||||||||
| 1/8–3/16DIAMETER | ||||||||
| D1 = +0.0000/–0.00032 | ||||||||
| D =h | in | ch | ED | NO. | ||||
| 2 6 R =+0.0000/–0.0020 | CUTTING DIAMETER | LENGTH OF CUT | OvERALL LENGTH | SHANk DIAMETER | REACH | CORNER RADIUS | UNCOATED | Ti-NAMITE-B (TiB2) |
| 1/4–3/8DIAMETER | D1 | L2 | L1 | D2 | L3 | R | ||
| D1 = +0.0000/–0.00035 | 1/8 | 5/32 | 3 | 1/8 | 1/2 | .010 | 32751 | 32815 |
| D2 =h6 | 3/16 | 7/32 | 3 | 3/16 | 1/2 | .010 | 32752 | 32816 |
| R =+0.0000/–0.0020 | 1/4 | 3/8 | 2-1/2 | 1/4 | 3/4 | .015 | 35787 | 36235 |
| 1258 | 1/4 | 3/8 | 2-1/2 | 1/4 | 3/4 | .060 | 35788 | 36236 |
| /–/DIAMETER D 00000000043 | 1/4 | 3/8 | 4 | 1/4 | 3/4 | .010 | 32753 | 32817 |
| 1 = +./–. D h | 1/4 | 3/8 | 4 | 1/4 | 3/4 | .030 | 32754 | 32818 |
| 2 =6 | 1/4 | 3/8 | 4 | 1/4 | 1-1/2 | .010 | 32755 | 32819 |
| R =+0.0000/–0.0020 | 1/4 | 3/8 | 4 | 1/4 | 1-1/2 | .030 | 32756 | 32820 |
| 3/4–1DIAMETER | 1/4 | 3/8 | 4 | 1/4 | 2-1/8 | .010 | 32757 | 32821 |
| D1 = +0.0000/–0.00051 | 1/4 | 3/8 | 4 | 1/4 | 2-1/8 | .030 | 32758 | 32822 |
| D2 =h6 | 5/16 | 7/16 | 4 | 5/16 | 1-1/8 | .030 | 32759 | 32823 |
| R =+0.0000/–0.0020 | 5/16 | 7/16 | 4 | 5/16 | 2-1/8 | .030 | 32760 | 32824 |
| 3/8 | 1/2 | 3 | 3/8 | 1-1/8 | .015 | 35791 | 36239 | |
| NON-FERROUS | 3/8 | 1/2 | 3 | 3/8 | 1-1/8 | .090 | 35792 | 36240 |
| 3/8 | 1/2 | 4 | 3/8 | 1-1/8 | .030 | 32762 | 32826 | |
| PLASTICS/COMPOSITES | 3/8 | 1/2 | 4 | 3/8 | 1-1/8 | .060 | 32763 | 32827 |
| 3/8 | 1/2 | 4 | 3/8 | 2-1/8 | .030 | 32764 | 32828 | |
| For patent | 3/8 | 1/2 | 4 | 3/8 | 2-1/8 | .060 | 32765 | 32829 |
| information visit | 1/2 | 5/8 | 3 | 1/2 | 1-3/8 | .015 | 35795 | 36243 |
| www.ksptpatents.com | 1/2 | 5/8 | 4 | 1/2 | 1-3/8 | .030 | 32767 | 32831 |
| 1/2 | 5/8 | 4 | 1/2 | 1-3/8 | .060 | 32768 | 32832 | |
| 1/2 | 5/8 | 4 | 1/2 | 1-3/8 | .090 | 32769 | 32833 | |
| 1/2 | 5/8 | 4 | 1/2 | 1-3/8 | .120 | 32770 | 32834 | |
| 1/2 | 5/8 | 4 | 1/2 | 2-1/4 | .015 | 35796 | 36244 | |
| 1/2 | 5/8 | 6 | 1/2 | 2-1/8 | .030 | 32771 | 32835 | |
| 1/2 | 5/8 | 6 | 1/2 | 2-1/8 | .060 | 32772 | 32836 | |
| 1/2 | 5/8 | 6 | 1/2 | 2-1/8 | .090 | 32773 | 32837 | |
| 1/2 | 5/8 | 6 | 1/2 | 2-1/8 | .120 | 32774 | 32838 | |
| 1/2 | 5/8 | 6 | 1/2 | 3-3/8 | .030 | 32775 | 32839 | |
| 1/2 | 5/8 | 6 | 1/2 | 3-3/8 | .060 | 32776 | 32840 | |
| 1/2 | 5/8 | 6 | 1/2 | 3-3/8 | .090 | 32777 | 32841 | |
| 1/2 | 5/8 | 6 | 1/2 | 3-3/8 | .120 | 32778 | 32842 | |
| 5/8 | 3/4 | 4 | 5/8 | 1-3/4 | .030 | 32779 | 32843 | |
| 5/8 | 3/4 | 4 | 5/8 | 1-3/4 | .060 | 32780 | 32844 | |
| 5/8 | 3/4 | 4 | 5/8 | 1-3/4 | .090 | 32781 | 32845 | |
| 5/8 | 3/4 | 4 | 5/8 | 1-3/4 | .120 | 32782 | 32846 | |
| 5/8 | 3/4 | 4 | 5/8 | 2-3/8 | .030 | 32783 | 32847 | |
| 5/8 | 3/4 | 4 | 5/8 | 2-3/8 | .060 | 32784 | 32848 |
FRACTIONAL SERIES
