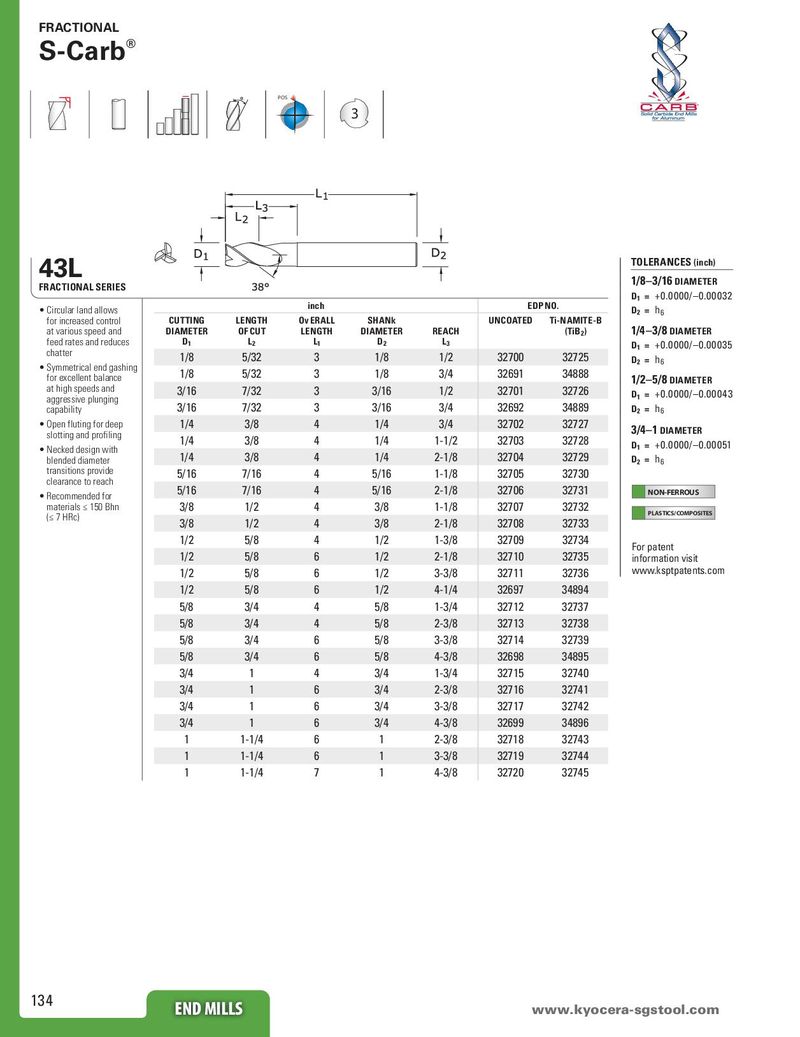

POS 3 ®
43L TOLERANCES (inch) 1/8–3/16 DIAMETER FRACTIONAL SERIES D = +0.0000/–0.00032
| inch | ED | P NO. | ||||
| CUTTING DIAMETER D1 | LENGTH OF CUT L2 | OvERALL LENGTH L1 | SHANk DIAMETER D2 | REACH L3 | UNCOATED | Ti-NAMITE-B (TiB2) |
| 1/8 | 5/32 | 3 | 1/8 | 1/2 | 32700 | 32725 |
| 1/8 | 5/32 | 3 | 1/8 | 3/4 | 32691 | 34888 |
| 3/16 | 7/32 | 3 | 3/16 | 1/2 | 32701 | 32726 |
| 3/16 | 7/32 | 3 | 3/16 | 3/4 | 32692 | 34889 |
| 1/4 | 3/8 | 4 | 1/4 | 3/4 | 32702 | 32727 |
| 1/4 | 3/8 | 4 | 1/4 | 1-1/2 | 32703 | 32728 |
| 1/4 | 3/8 | 4 | 1/4 | 2-1/8 | 32704 | 32729 |
| 5/16 | 7/16 | 4 | 5/16 | 1-1/8 | 32705 | 32730 |
| 5/16 | 7/16 | 4 | 5/16 | 2-1/8 | 32706 | 32731 |
| 3/8 | 1/2 | 4 | 3/8 | 1-1/8 | 32707 | 32732 |
| 3/8 | 1/2 | 4 | 3/8 | 2-1/8 | 32708 | 32733 |
| 1/2 | 5/8 | 4 | 1/2 | 1-3/8 | 32709 | 32734 |
| 1/2 | 5/8 | 6 | 1/2 | 2-1/8 | 32710 | 32735 |
| 1/2 | 5/8 | 6 | 1/2 | 3-3/8 | 32711 | 32736 |
| 1/2 | 5/8 | 6 | 1/2 | 4-1/4 | 32697 | 34894 |
| 5/8 | 3/4 | 4 | 5/8 | 1-3/4 | 32712 | 32737 |
| 5/8 | 3/4 | 4 | 5/8 | 2-3/8 | 32713 | 32738 |
| 5/8 | 3/4 | 6 | 5/8 | 3-3/8 | 32714 | 32739 |
| 5/8 | 3/4 | 6 | 5/8 | 4-3/8 | 32698 | 34895 |
| 3/4 | 1 | 4 | 3/4 | 1-3/4 | 32715 | 32740 |
| 3/4 | 1 | 6 | 3/4 | 2-3/8 | 32716 | 32741 |
| 3/4 | 1 | 6 | 3/4 | 3-3/8 | 32717 | 32742 |
| 3/4 | 1 | 6 | 3/4 | 4-3/8 | 32699 | 34896 |
| 1 | 1-1/4 | 6 | 1 | 2-3/8 | 32718 | 32743 |
| 1 | 1-1/4 | 6 | 1 | 3-3/8 | 32719 | 32744 |
| 1 | 1-1/4 | 7 | 1 | 4-3/8 | 32720 | 32745 |
1 2 6
D = h DIAMETER
2 6 3/4–1 DIAMETER
2 6 clearance to reach
For patent
