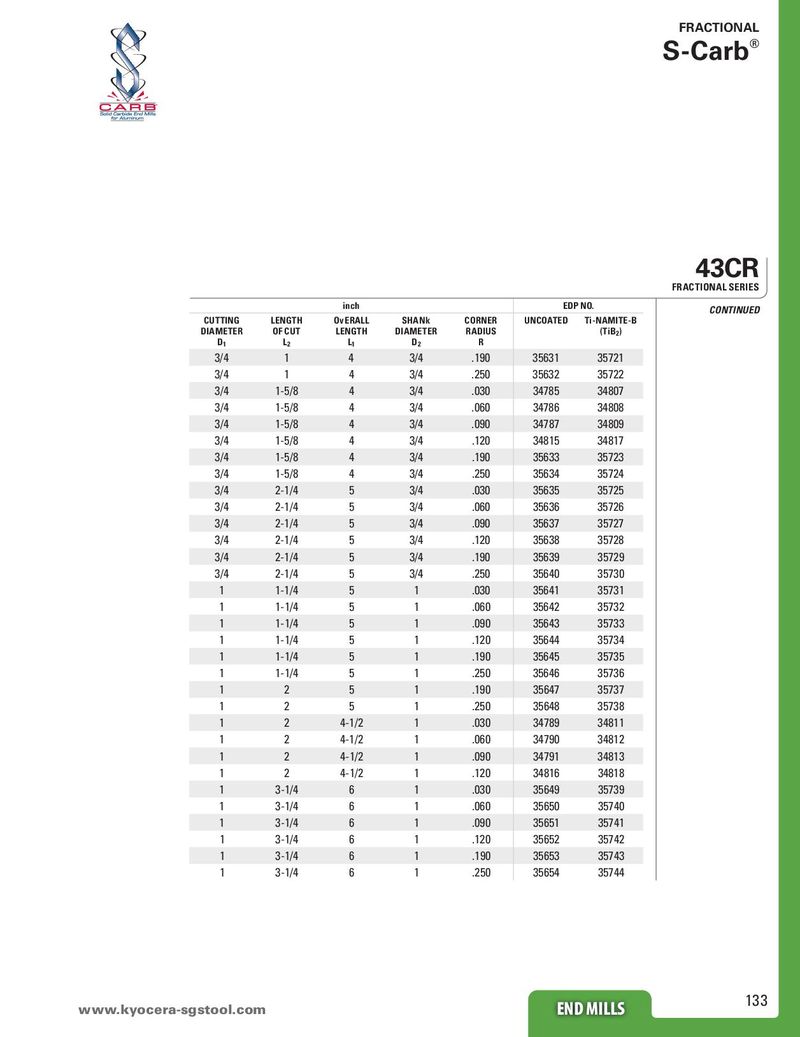

Общий каталог SGS 2018 - страница 133
Навигация
Каталог SGS шестизубые фрезы T-carb
Каталог SGS микро инструмент 2021
Каталог SGS фрезы для алюминия S-carb
Каталог SGS высокопроизводительные черновые фрезы
Каталог SGS инструмент для обработки алюминия
Общий каталог SGS 2015 на русском
43CR
FRACTIONAL SERIES
| inch | ED | P NO. | ||||
| CUTTING DIAMETER D1 | LENGTH OF CUT L2 | OvERALL LENGTH L1 | SHANk DIAMETER D2 | CORNER RADIUS R | UNCOATED | Ti-NAMITE-B (TiB2) |
| 3/4 | 1 | 4 | 3/4 | .190 | 35631 | 35721 |
| 3/4 | 1 | 4 | 3/4 | .250 | 35632 | 35722 |
| 3/4 | 1-5/8 | 4 | 3/4 | .030 | 34785 | 34807 |
| 3/4 | 1-5/8 | 4 | 3/4 | .060 | 34786 | 34808 |
| 3/4 | 1-5/8 | 4 | 3/4 | .090 | 34787 | 34809 |
| 3/4 | 1-5/8 | 4 | 3/4 | .120 | 34815 | 34817 |
| 3/4 | 1-5/8 | 4 | 3/4 | .190 | 35633 | 35723 |
| 3/4 | 1-5/8 | 4 | 3/4 | .250 | 35634 | 35724 |
| 3/4 | 2-1/4 | 5 | 3/4 | .030 | 35635 | 35725 |
| 3/4 | 2-1/4 | 5 | 3/4 | .060 | 35636 | 35726 |
| 3/4 | 2-1/4 | 5 | 3/4 | .090 | 35637 | 35727 |
| 3/4 | 2-1/4 | 5 | 3/4 | .120 | 35638 | 35728 |
| 3/4 | 2-1/4 | 5 | 3/4 | .190 | 35639 | 35729 |
| 3/4 | 2-1/4 | 5 | 3/4 | .250 | 35640 | 35730 |
| 1 | 1-1/4 | 5 | 1 | .030 | 35641 | 35731 |
| 1 | 1-1/4 | 5 | 1 | .060 | 35642 | 35732 |
| 1 | 1-1/4 | 5 | 1 | .090 | 35643 | 35733 |
| 1 | 1-1/4 | 5 | 1 | .120 | 35644 | 35734 |
| 1 | 1-1/4 | 5 | 1 | .190 | 35645 | 35735 |
| 1 | 1-1/4 | 5 | 1 | .250 | 35646 | 35736 |
| 1 | 2 | 5 | 1 | .190 | 35647 | 35737 |
| 1 | 2 | 5 | 1 | .250 | 35648 | 35738 |
| 1 | 2 | 4-1/2 | 1 | .030 | 34789 | 34811 |
| 1 | 2 | 4-1/2 | 1 | .060 | 34790 | 34812 |
| 1 | 2 | 4-1/2 | 1 | .090 | 34791 | 34813 |
| 1 | 2 | 4-1/2 | 1 | .120 | 34816 | 34818 |
| 1 | 3-1/4 | 6 | 1 | .030 | 35649 | 35739 |
| 1 | 3-1/4 | 6 | 1 | .060 | 35650 | 35740 |
| 1 | 3-1/4 | 6 | 1 | .090 | 35651 | 35741 |
| 1 | 3-1/4 | 6 | 1 | .120 | 35652 | 35742 |
| 1 | 3-1/4 | 6 | 1 | .190 | 35653 | 35743 |
| 1 | 3-1/4 | 6 | 1 | .250 | 35654 | 35744 |
